Hot sale Original SR4L034-R RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA PCB Trace Solder

Manufacturer
Original
Manufacturer Product Number
SR4L034-R
Description

Original SR4L034-R RF ANTENNA 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA PCB Trace Solder Surface Mount

Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Overview

The Surface Mount value makes it suitable for general RF Antennas.From the Inversa series, it's a Antenna RF.A solid enclosure of Tape & Reel (TR) surrounds RF modulator.

Product Features

With Surface Mount
Inversa series

Product Applications

​SR4L034-R RF Antennas applications

· Solar flares

· Static electricity

· Cosmic noise

· Generators

· Lightings

· Rectifiers

· Inverters

· Satellites

· Transmission

· Cellphones

Product Description

Type

Description

ANSC PART#

ANSC - SR4L034-R

Category

RF and Wireless

RF Antennas

Manufacturer

-

Series

Inversa

Packaging

Tape & Reel (TR)

Cut Tape (CT)

Part Status

Active

RF Family/Standard

Cellular

Frequency Group

Wide Band

Frequency (Center/Band)

829MHz, 1.94GHz, 2.35GHz, 2.595GHz

Frequency Range

698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz

Antenna Type

PCB Trace

Number of Bands

4

VSWR

2.5, 2.8, 3.5, 3.7

Return Loss

-4.9dB, -5.1dB, -6dB, -6.6dB, -7dB

Gain

0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi

Features

-

Termination

Solder

Ingress Protection

-

Mounting Type

Surface Mount

Height (Max)

0.130" (3.30mm)

Applications

3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA

Base Product Number

SR4L034

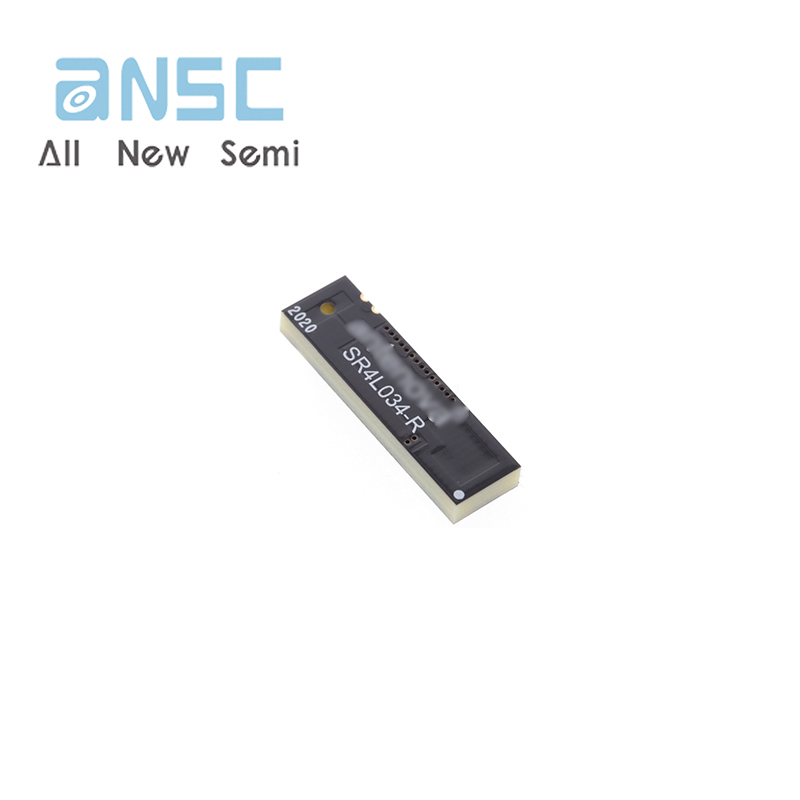

Actual image of the product

SR4L034-R_1
