Hot selling One stop supply of electronic components 0466002.NRHF Fuse Chip Very Fast Acting 2A 63V SMD Solder Pad 1206 T/R CSA

Manufacturer Product Number

0466002.NRHF

Description

Fuse Chip Very Fast Acting 2A 63V SMD Solder Pad 1206 T/R CSA

Package Condition

REEL

Datasheet

0466002.NRHF

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

The 466 Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.
This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 466 Series fuses are available to order using the “HF” suffix.

Product Features

• Complies with electronic industry environmental standards for lead reduction.

• Product is compatible with lead-free solders and higher temperature profiles.

• Current ratings available up to 7A. If a 7A fuse is required please see the 429 series.

• High performance materials provide improved performance in elevated ambient temperature applications.

• Product is marked on top surface with code to allow amperage-rating identification without testing.

• Low profile for height sensitive applications.

• Flat top surface for pick-and-place operations.

• Element covering material is resistant to industry standard cleaning operations.

• Mounting pad and electrical performance is identical to Littelfuse 429 and 433 Series products.

• Alloy based element construction provides superior inrush withstand characteristics (l2t) over ceramic or glass based 1206 chip fuse products.

Product Application

• Cell phones

• Battery packs

• Digital cameras

• DVD players

• Hard disk drives

Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-0466002.NRHF
ECCN (US)	EAR99
Part Status	Active
HTS	8536.10.00.40
SVHC	Yes
Automotive	No
PPAP	No
Type	Chip
Acting	Very Fast
Application	Battery Pack\|Cell Phone\|Digital Camera\|DVD Player\|Hard Disk Drive
Fuse Size (mm)	3.18 X 1.52 X 0.58
Current Rating (A)	2
Voltage Rating (V)	63
Maximum AC Voltage Rating (V)	63
Maximum DC Voltage Rating (V)	63
Maximum Power Dissipation (W)	0.1575(Typ)
Typical Melting I2t (A²S)	0.2326
Typical Cold Resistance (Ohm)	0.031
Termination Style	Solder Pad
Number of Terminals	2
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	90
Packaging	Tape and Reel
Product Depth (mm)	1.52
Product Length (mm)	3.18
Product Height (mm)	0.58
Mounting	Surface Mount
Package/Case	1206

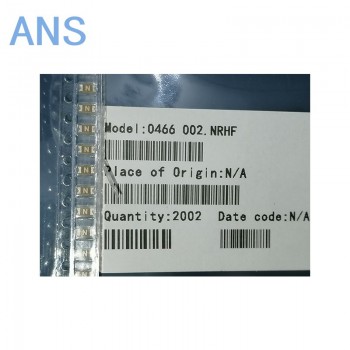

Actual product photos
