One-Stop Supply Original Electronic Components SCA61T-FA1H1G-1 Sensor Inclinometer 90DEG SMD8
Manufacturer Product Number
SCA61T-FA1H1G-1
Description
SCA61T-FA1H1G-1 Sensor/Transducer
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| SCA610-E23H1A SINGLE AXIS ACCELEROMETER WITH ANALOG INTERFACE The SCA610 accelerometer consists of a silicon bulk micro machined sensing element chip and a signal conditioning ASIC. The chips are mounted on a pre-molded package and wire bonded to appropriate contacts. The sensing element and ASIC are protected with silicone gel and lid. The sensor has 8 SMD legs (Gull-wing type). Features • Single +5 V supply • Current consumption 2.5 mA typical • Ratiometric output in relation to supply voltage (Vdd = 4.75 V...5.25 V) • Enhanced failure detection features o Digitally activated, true self-test by proof mass deflection using electrostatic force o Memory parity check during power up, and self-test cycle. o Built in connection failure detection • Digitally activated, true self-test by proof mass deflection using electrostatic force • Wide load drive capability (max. 20 nF) • True DC response • Qualified according to AEC-Q100 standard Applications SCA610 product family is targeted to automotive applications with high stability and reliability requirements. Typical applications include: • Electronic Stability Control (ESC) • Engine Vibration Measurement • Roll Over • Suspension • Inclination |
Product Description
| Type | Description |
| PART# | SCA61T-FA1H1G-1 |
| Category | Sensors, Transducers |
| Motion Sensors | |
| Inclinometers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Axis | X or Y |
| Measuring Range | ±90° |
| Sensitivity | 2V/g |
| Bandwidth | 8 ~ 28Hz |
| Voltage Rating | 4.75 V ~ 5.25 V |
| Output Type | Voltage |
| Interface | SPI |
| Package / Case | 8-SMD, L-Bend |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Base Product Number | SCA61T |

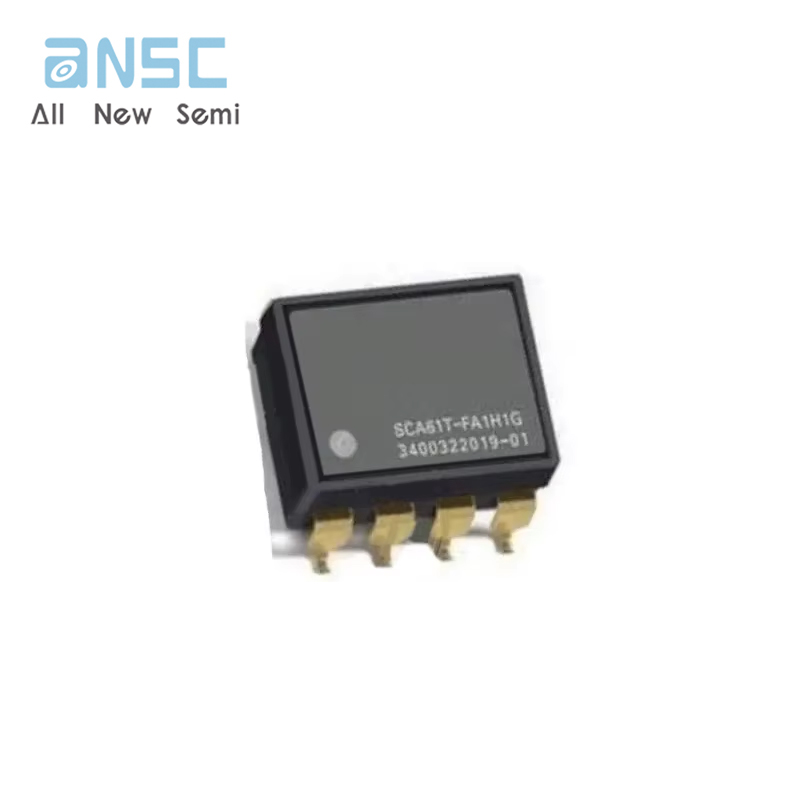

Actual image of the product
