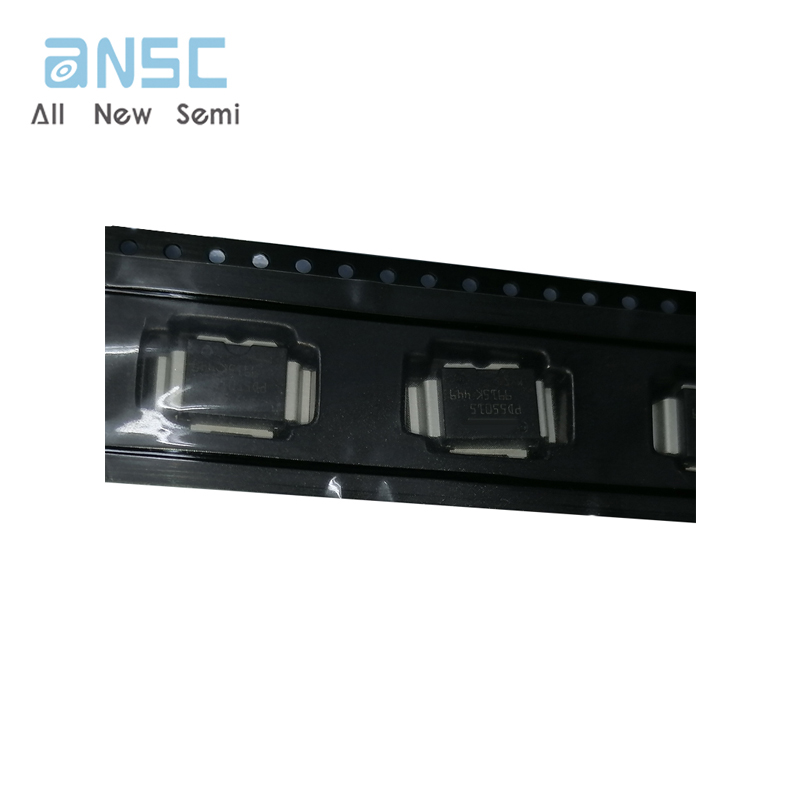

Hot sale original PD55015 UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET, POWER, PLASTIC, SO-3
Manufacturer Product Number
PD55015
Description
PD55015 UHF BAND, Si, N-CHANNEL, RF POWER, MOSFET, POWER, PLASTIC, SO-3
Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The PD55015 is a common source N-Channel, enhancement-mode, lateral Field-Effect RF power transistor. It is designed for high gain, broad band commercial and industrial applications. It operates at 12V in common source mode at frequencies of up to 1GHz. PD55015 boasts the excellent gain, linearity and reliability of ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. PD55015’s superior linearity performance makes it an ideal solution for car mobile radio. N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFETs • EXCELLENT THERMAL STABILITY • COMMON SOURCE CONFIGURATION • POUT = 15 W with 13.5 dB gain @ 500 MHz / 12.5V • NEW RF PLASTIC PACKAGE |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - PD55015 |
| Ihs Manufacturer | Original |
| Part Package Code | SOT |
| Package Description | POWER, PLASTIC, SO-3 |
| Pin Count | 3 |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | SOURCE |
| Configuration | SINGLE |
| DS Breakdown Voltage-Min | 40 V |
| Drain Current-Max (ID) | 5 A |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Highest Frequency Band | ULTRA HIGH FREQUENCY BAND |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 165 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 73 W |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
Product Photos

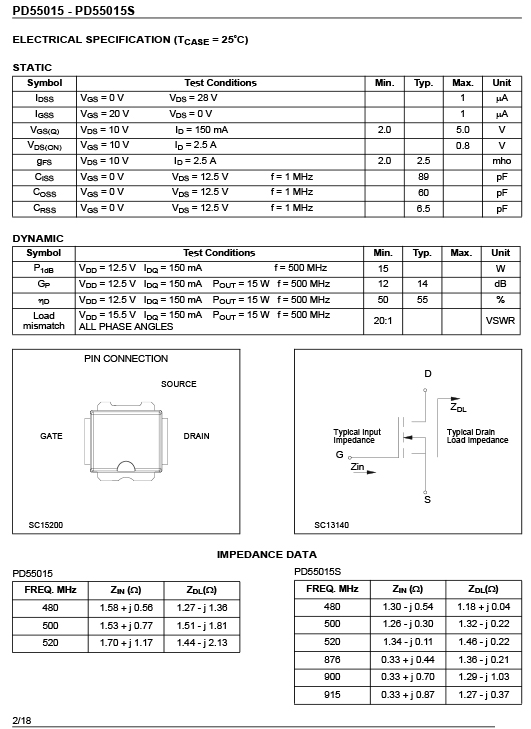

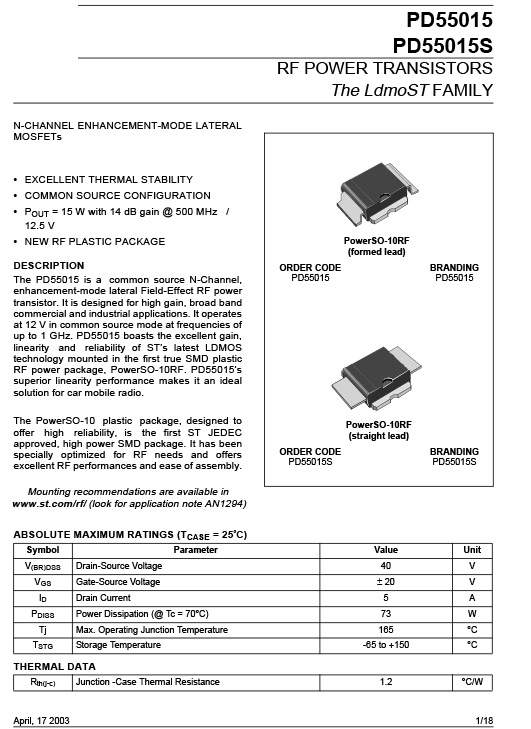

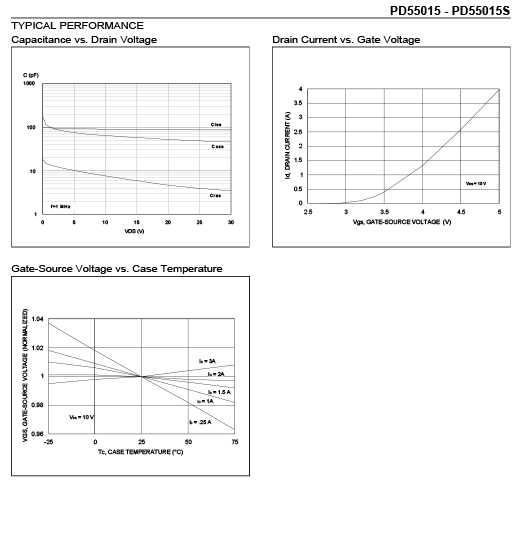

Product datasheet
