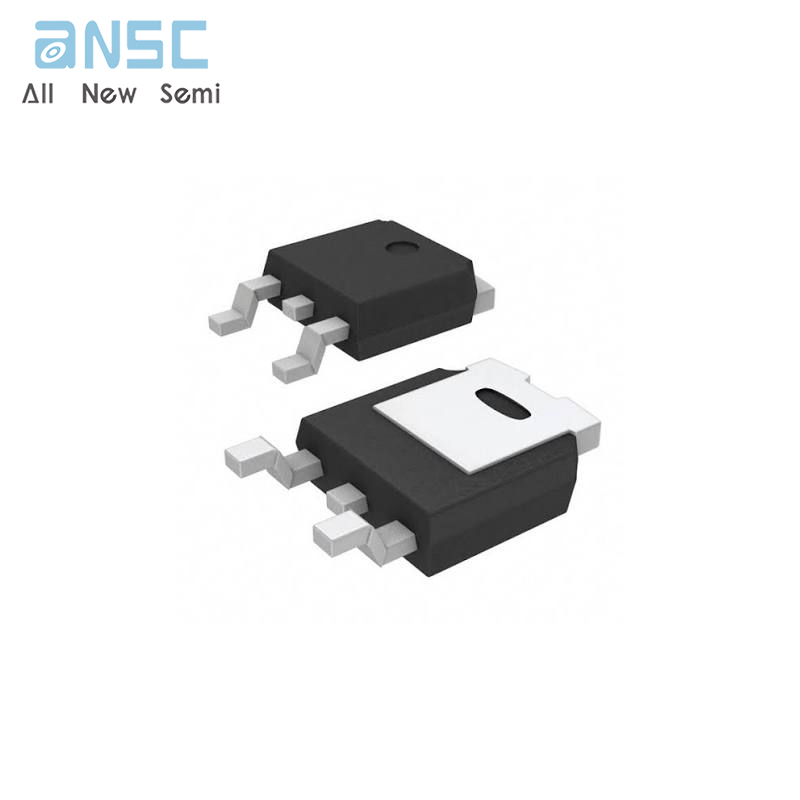

Hot-selling and scarce STD16NF06T4 N-Channel 60V - 0.060Ω - 16A Power MOSFET TO-252-3 spot stock
Manufacturer Product Number
STD16NF06T4
Description
STD16NF06T4 N-Channel 60V - 0.060Ω - 16A Power MOSFET TO-252-3 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This Power MOSFET is the latest development ofSTMicroelectronis unique "Single Feature Size™"strip-based process . The resulting transistorshows extremely high packing density for lowon-resistance,rugged avalanche characteristicsand less critical alignment steps therefore aremarkable manufacturing reproducibility
Product Features
■ Typical R DS(on)=0.060Ω
■ Exceptional dv/dt Capability
■ 100%Avalanche Tested
■ Application Oriented Characterization
Product Applications
■ Audio Amplifiers
■ Power Tools
■ Automotive Environment
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-STD16NF06T4 |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Series | STripFET™ II |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 400 pF @ 15 V |
| Power Dissipation (Max) | 40W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | STD16 |
Product Photos
For more product information, please download the PDF
