Hot offer 4 PIN ULTRA SMALL SOP BOM distribution service electronic components EL357N-G Professional supply Original
Manufacturer Product Number
EL357N-G
Description
EL357N-G Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Transistor Output Optocoupler 1-Element 3750V Isolation SOP-4
Product Description
| Type# | Description |
| PART# | EL357N-G |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | / |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 4µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP (2.54mm) |
| Base Product Number | EL357N |

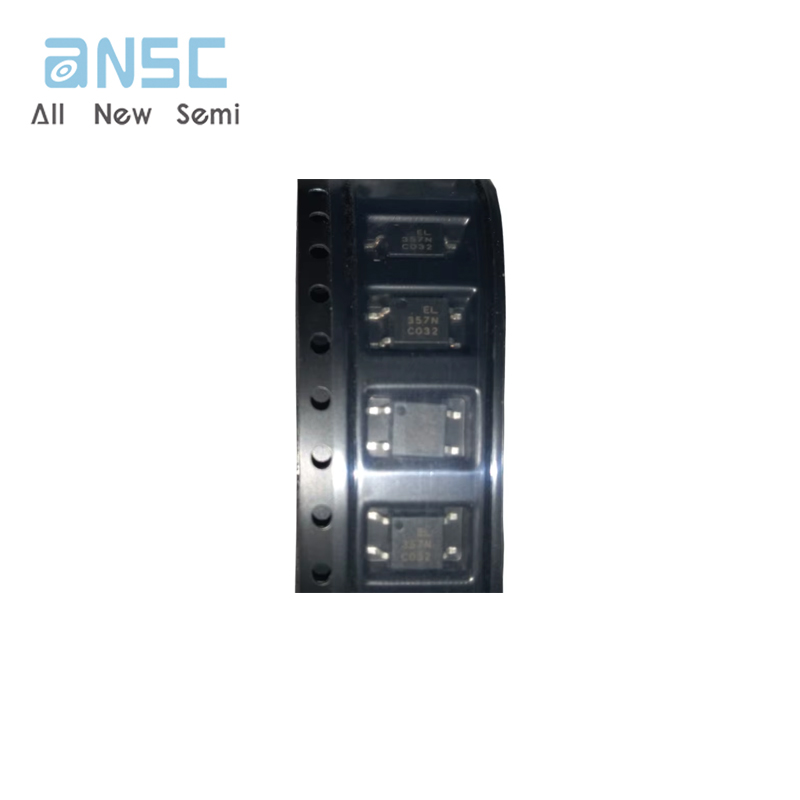

Actual image of the product
