Hot sale Original RBH3-10RAVB Rotary coded switch SMD 10 ways, 24VDC, through-hole mounting
Manufacturer
Manufacturer Product Number
RBH3-10RAVB
Description
Original RBH3-10RAVB Rotary coded switch SMD 10 ways, 24VDC, through-hole mounting
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC -RBH3-10RAVB |
| Manufacturer | / |
| Actuator Material | POLYAMIDE/POLYETHYLENE |
| Actuator Type | CROSS SHAPED SLOT |
| Body Breadth | 10 mm |
| Body Height | 6.5 mm |
| Body Length or Diameter | 10 mm |
| Center Contact Plating | GOLD |
| Contact Current(DC)-Max | 0.15 A |
| Contact (DC) Max Rating R Load | .15A@24VDC |
| Contact Resistance | 0.1 mΩ |
| Contact Voltage(DC)-Max | 24 V |
| Dielectric Withstand Volts | 250VAC V |
| Electrical Life | 10000 Cycle(s) |
| End Contact Plating | GOLD |
| Housing Material | POLYAMIDE/POLYETHYLENE |
| Insulation Resistance | 100000000 Ω |
| Insulator Material | POLYAMIDE POLYETHYLENE |
| Mounting Feature | THROUGH HOLE-STRAIGHT |
| Number of Positions | 10 |
| Number of Switch Sections | 1 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -60 °C |
| PCB Hole Count | 6 |
| Surface Mount | NO |
| Switch Action | LATCHED |
| Switch Function | BINARY CODED DECIMAL |
| Switch Type | ROTARY CODED SWITCH |
| Terminal Length | 0.149 inch |
| Terminal Material | BRASS |
| Termination Type | SOLDER |

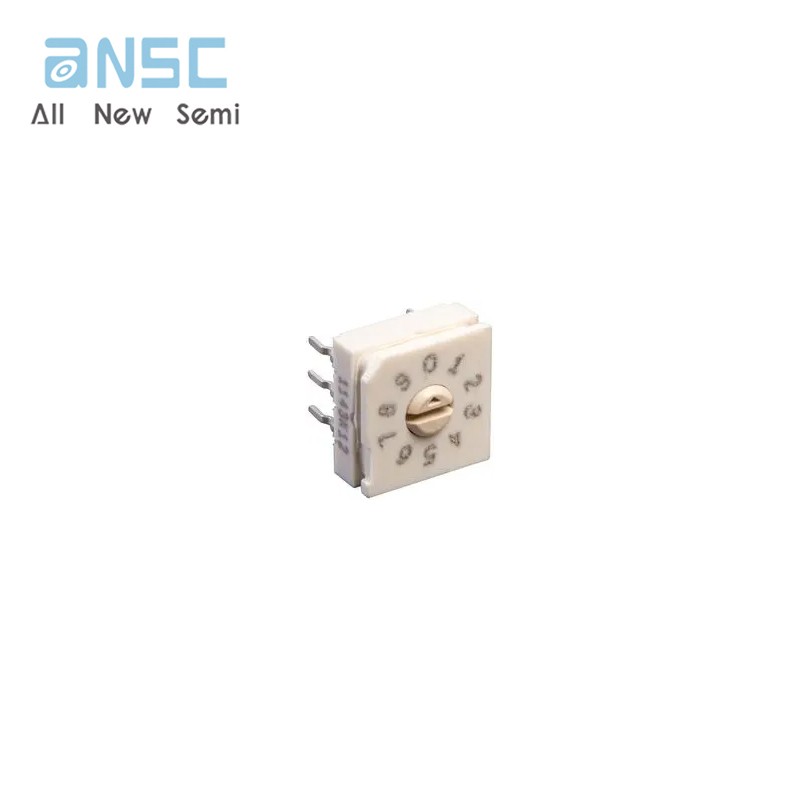

Actual image of the product

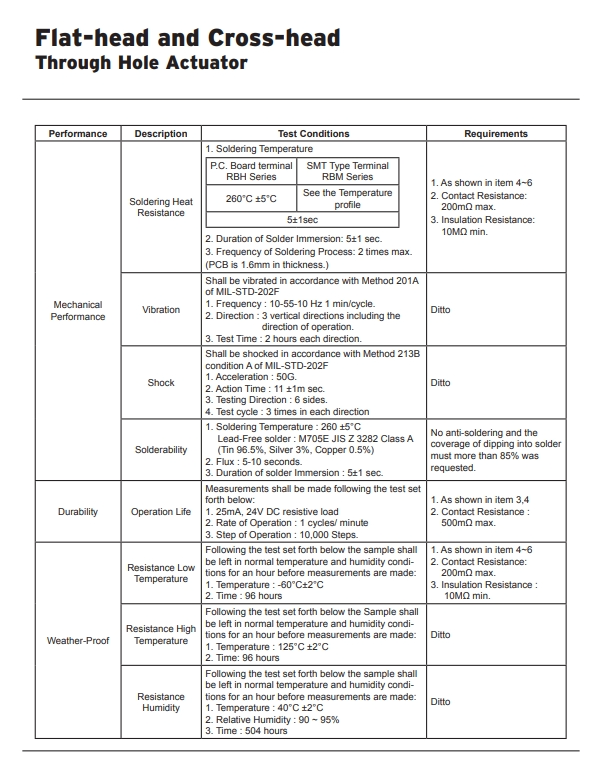

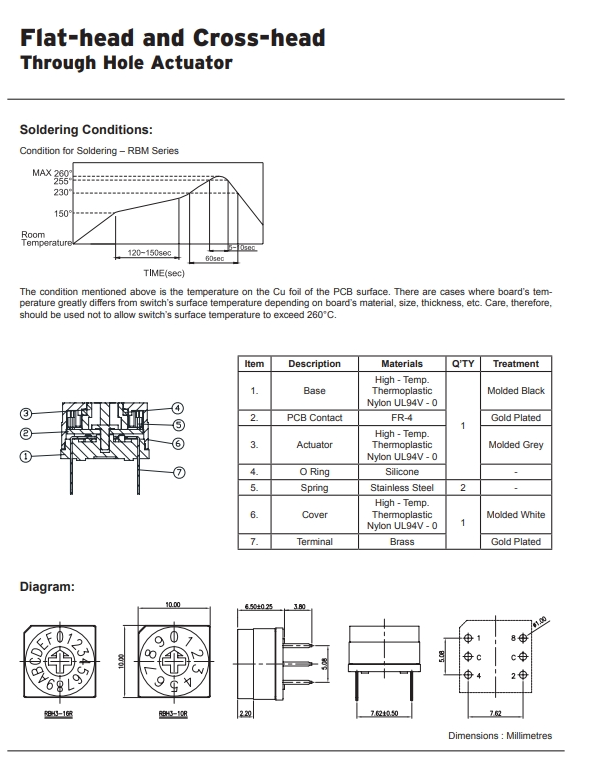

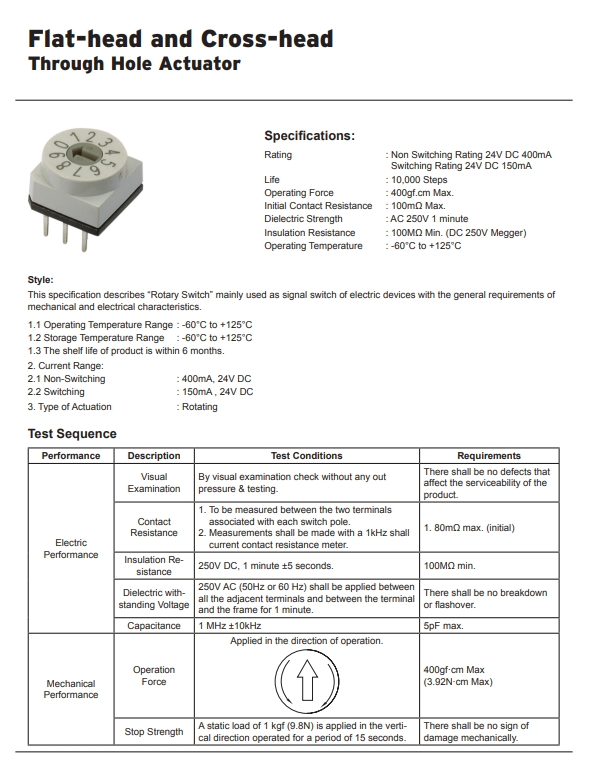

Product datasheet
For more information, please download
