Hot-selling and scarce TPS2065DGNR Current-Limited Power-Distribution Switches MSOP8 spot stock

Product Descriptions

The TPS206x-1 power-distribution switches are intended for applications where heavy capacitive loads and short-circuits are likely to be encountered. This device incorporates 70-mΩ N-channel MOSFET power switches for power-distribution systems that require multiple power switches in a single package.Each switch is controlled by a logic enable input.Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.

These switches provide a discharge function tha provides a controlled discharge of the output voltage stored on the output capacitor.

Product Features

• Output Discharge Function

• 70-mΩ High-Side MOSFET

• 1-A Continuous Current

• Thermal and Short-Circuit Protection

• Accurate Current Limit (1.1 A min, 1.9 A max)

• Operating Range: 2.7 V to 5.5 V

• 0.6-ms Typical Rise Time

• Undervoltage Lockout

• Deglitched Fault Report (OC)

• No OC Glitch During Power Up

• 1-µA Maximum Standby Supply Current

• Ambient Temperature Range: -40°C to 85°C

• ESD Protection

Product Applications

• Heavy Capacitive Loads

• Short-Circuit Protections

Product Specification

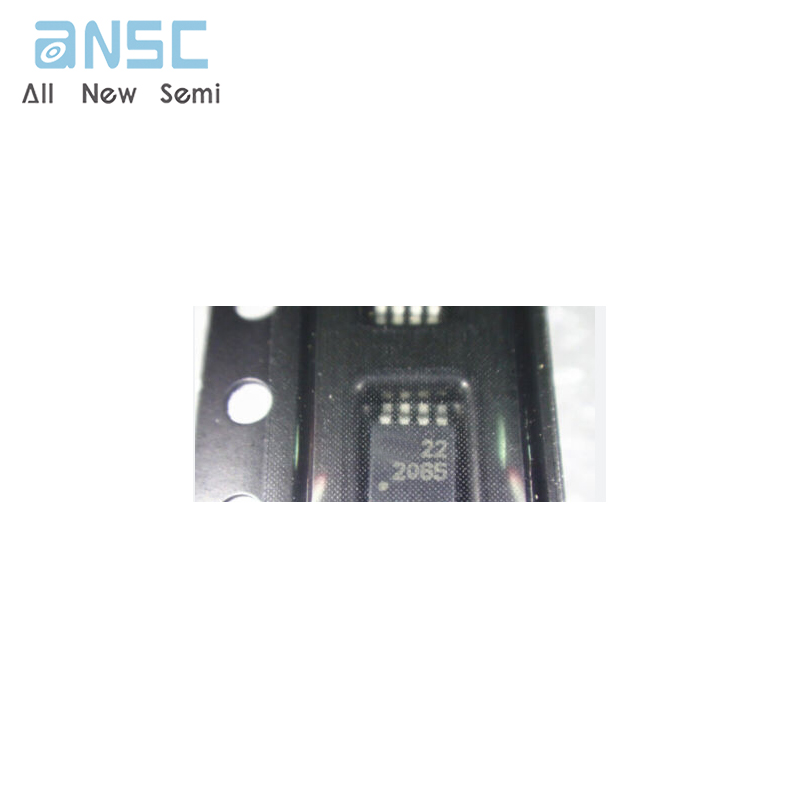

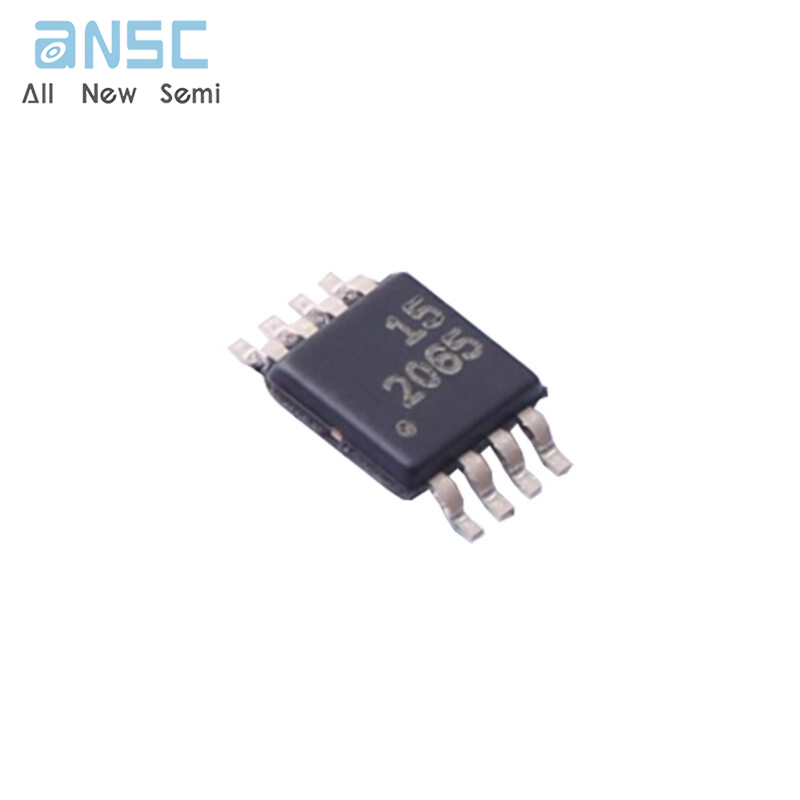

Product Photos

For more product information, please download the PDF
