Hot-selling and scarce TPS2051CDBVR Current-Limited, Power-Distribution Switches SOT23-5 spot stock

Product Descriptions

The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications such as USB where heavy capacitive loads and short-circuits are likely to be encountered. This family offersmultiple devices with fixed current-limit thresholds for applications between 0.5 A and 2 A.

​

The TPS20xxC and TPS20xxC-2 family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current-limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5 V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turn-on and turn-off.

Product Features

• Single Power Switch Family

• Pin for Pin with Existing

• Rated currents of 0.5 A, 1 A, 1.5 A, 2 A

• ±20 percent Accurate, Fixed, Constant Current Limit

• Fast Over-Current Response – 2 µs

• Deglitched Fault Reporting

• Selected Parts with (TPS20xxC) and without (TPS20xxC-2) Output Discharge

• Reverse Current Blocking

• Built-in Softstart

• Ambient Temperature Range: –40°C to 85°C

• UL Listed and CB-File No. E16991

Product Applications

• USB Ports/Hubs, Laptops, Desktops

• High-Definition Digital TVs

• Set Top Boxes

• Short-Circuit Protection

Product Specification

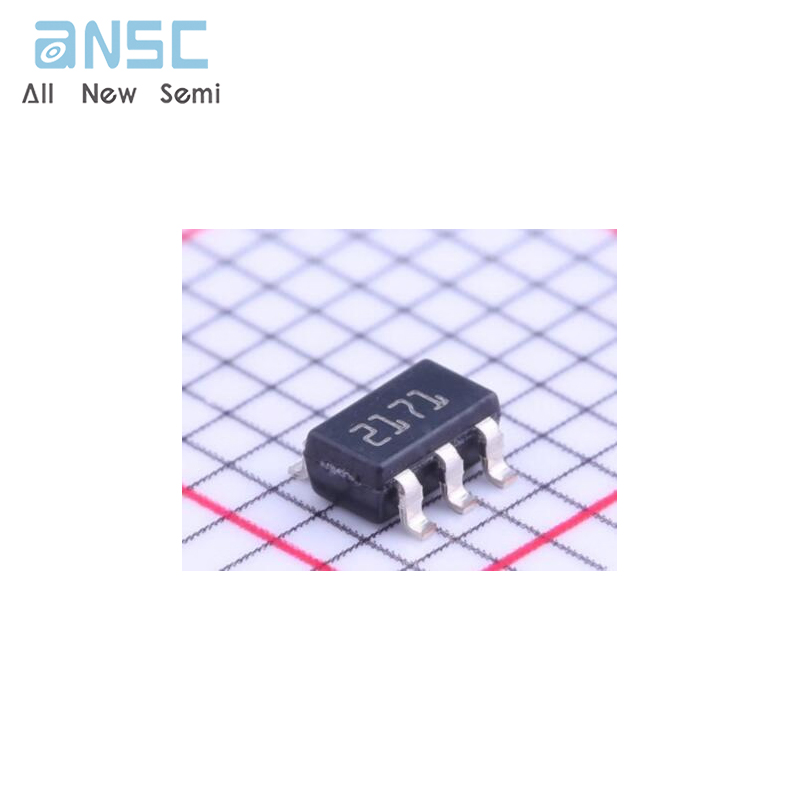

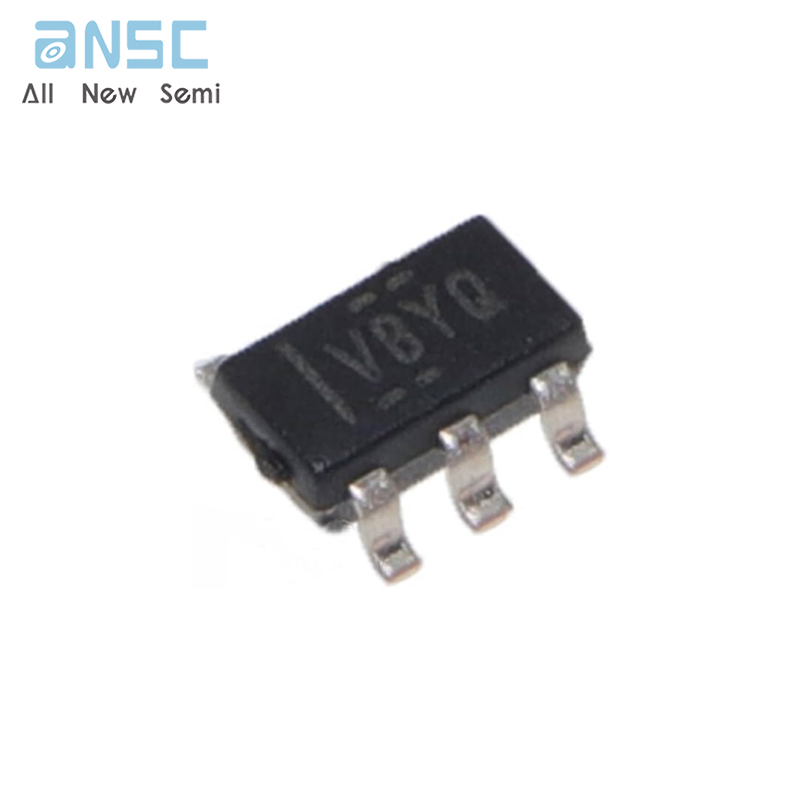

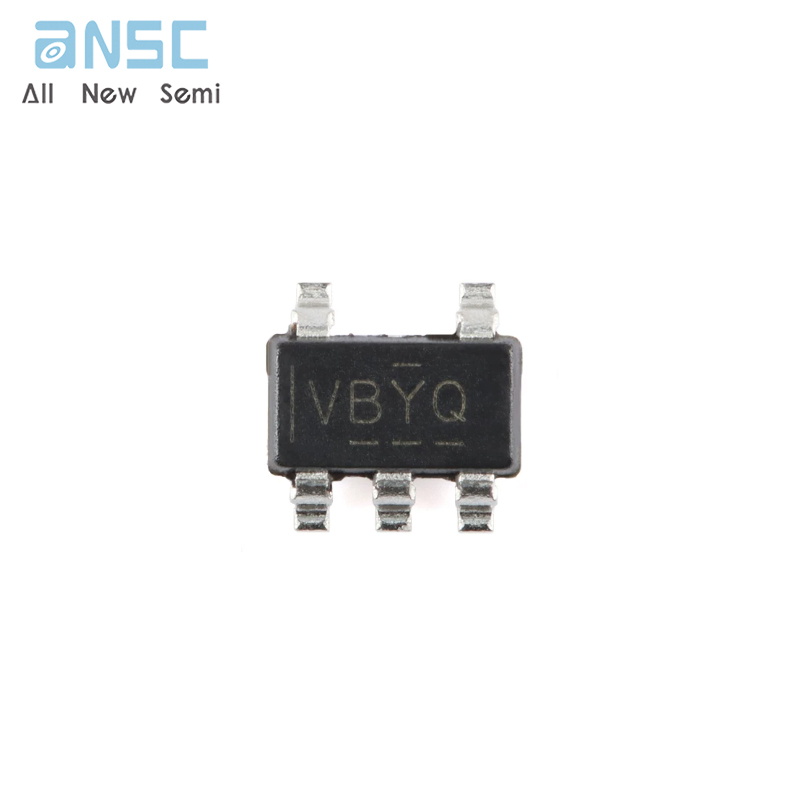

Product Photos

For more product information, please download the PDF
