Hot sale original TP32WS83565 SWITCH PUSH SPDT 0.4VA 20V Pushbutton Switch SPDT Standard Surface Mount, Right Angle

Product Details

General Specification

The TP3201 series are protection IC for over-charge/discharge of rechargeable one-cell Lithium-ion (Li+) batteries by CMOS process.
The TP3201 series can detect over-charge/discharge of Li+ one-cell and excess load current, further include a short circuit protector for preventing large external short circuit current.
Each of these ICs is composed of three voltage detectors, a reference unit, a hysteresis circuit, and a short circuit protector. When charging voltage crosses the detector threshold from a low value to a value higher than VDET1, the output of COUT pin, the output of over-charge detector/VD1, switches to low level, chargers negative pin level. After detecting overcharge the VD1 can be reset and the output of COUT pin becomes "H" when the VDD voltage is coming down to a level lower than VDET1 – VHYS1 ", or when a charger is disconnected from the battery pack while the VDD level is in between VDET1" and VDET1 – VHYS1 " in the TP3201 version.

Product Description

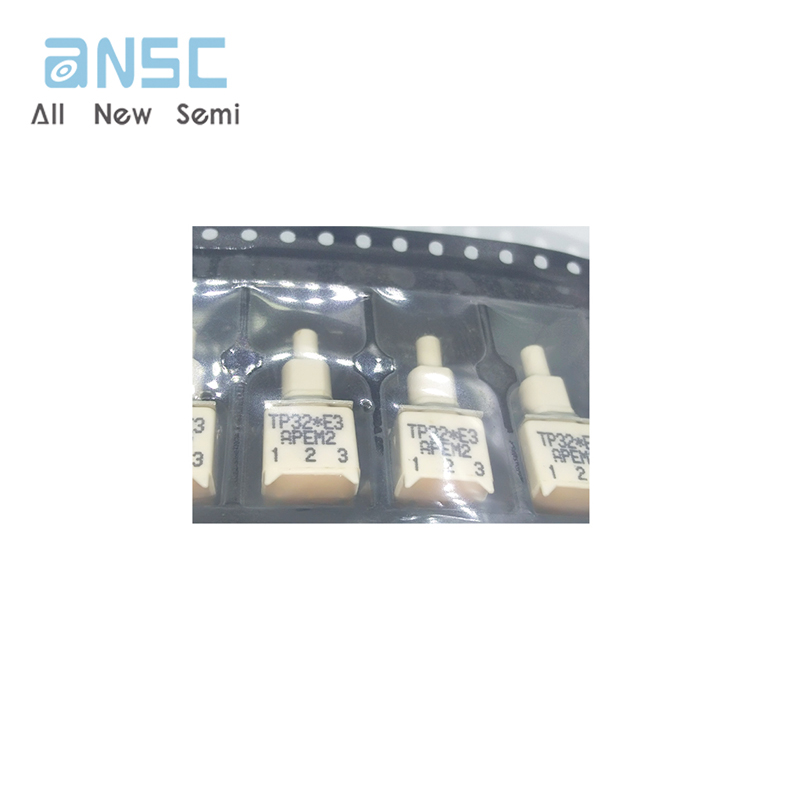

Actual image of the product

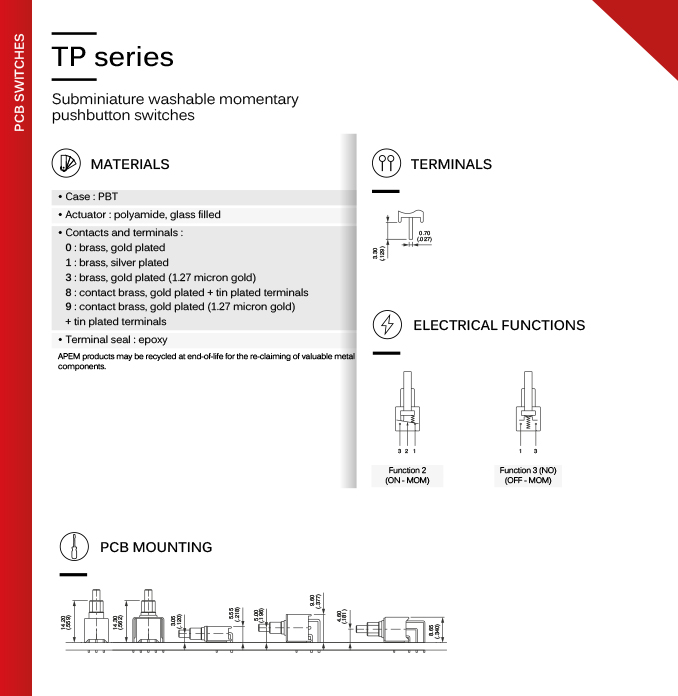

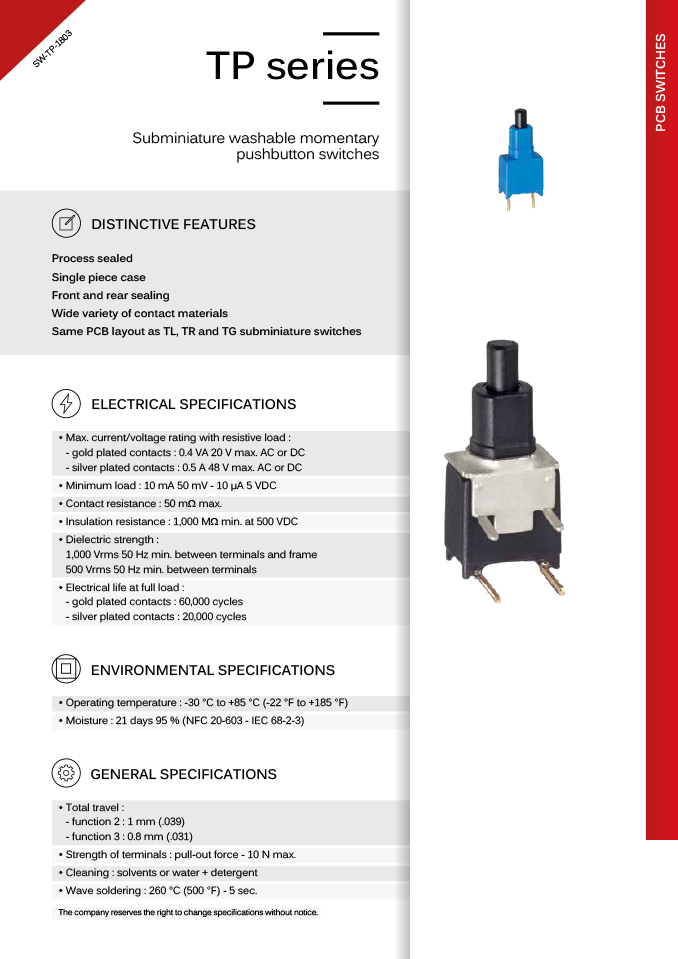

Product datasheet

For more information, please download
