V-156-1C25 Micro switch with long wheel Small travel limit

Product Overview

A micro switch is a type of travel switch (also called a limit switch) and is a commonly used low-current master electrical appliance. It uses the collision of the moving parts of the production machinery to make its contacts move to connect or disconnect the control circuit and achieve a certain control purpose. Usually, this type of switch is used to limit the position or travel of the machine movement, so that the moving machinery can automatically stop, reverse, change speed or automatically reciprocate at a certain position or travel.

Product Applications

The products are widely used in computer mouse, car mouse, automotive electronic products, communication equipment, military products, test instruments, gas water heaters, gas stoves, small appliances, microwave ovens, rice cookers, float equipment, medical equipment, building automation power tools and general electrical and radio equipment, 24-hour timers, etc.

Product Parameters

Product name: micro switch

Product model: V-156-1C25

Rated current: 15A

Rated voltage: 250V

Contact type: silver contact

Contact type: one normally open and one normally closed

Working mode: self-reset

With or without roller: with roller

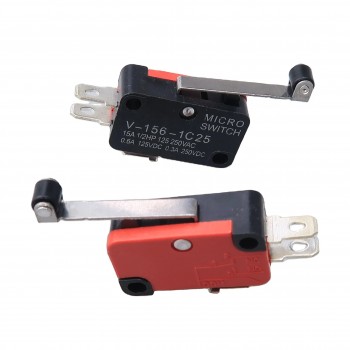

Actual image of the product

​
