Hot-selling and scarce FP6861C-C1SOCTR Single-Channel Power Distribution Switch SOP8 spot stock

Product Descriptions

The FP6861C is a cost-effective, low voltage, single  N-Channel MOSFET high-side power switch, optimized for self-powered and bus-powered  Universal Serial Bus (USB) applications.

The FP6861C is equipped with a charge pump  circuitry to drive the internal MOSFET switch. The  switch's low RDS(ON) meets USB voltage drop  requirement, and a flag output is available to indicate  fault conditions to the local USB controller.

Additional features include soft-start to limit inrush  current during plug-in, thermal shutdown to prevent  catastrophic switch failure from high-current loads, and under-voltage lockout (UVLO) to ensure that the  device remains off unless there is a valid input  voltage present. Besides, fault current is limited to  specific current for FP6861C in single port in  accordance with the USB power requirements.  FP6861C will prevent reverse current when it is  disabled and VOUT is higher than VIN.

The FP6861C is available in MSOP-8, SOP-8 and SOT-23-5 packages with smallest components.

Product Features

 Compliant to USB Specifications

 Built-In Low RDS(ON) N-Channel MOSFET

 Output can be Forced Higher than Input (Off-State)

 Low Supply Current:

65μA Typical at Switch On State

0.1μA Typical at Switch Off State

 Wide Input Voltage Ranges: 2.7V to 5.5V

 Open-Drain Fault Flag Output

 Hot Plug-In Application (Soft-Start)

 2.2V Typical Under-Voltage Lockout (UVLO)

 Current Limit Protection

 Thermal Shutdown Protection

 Reverse Current Flow Blocking (No Body Diode)

 Logic Level Enable Pin

 MSOP-8, SOP-8 and SOT-23-5 Packages

 RoHS Compliant

 UL NO.E322418 (Approved model: FP6861 series)

 CB Test Certified, Ref. Certif. No. JPTUV-041416

Product Applications

 USB Bus/Self Powered Hub

 USB Peripheral

 ACPI Power Distribution

 Notebook, Motherboard PC

 Battery-Charger Circuit

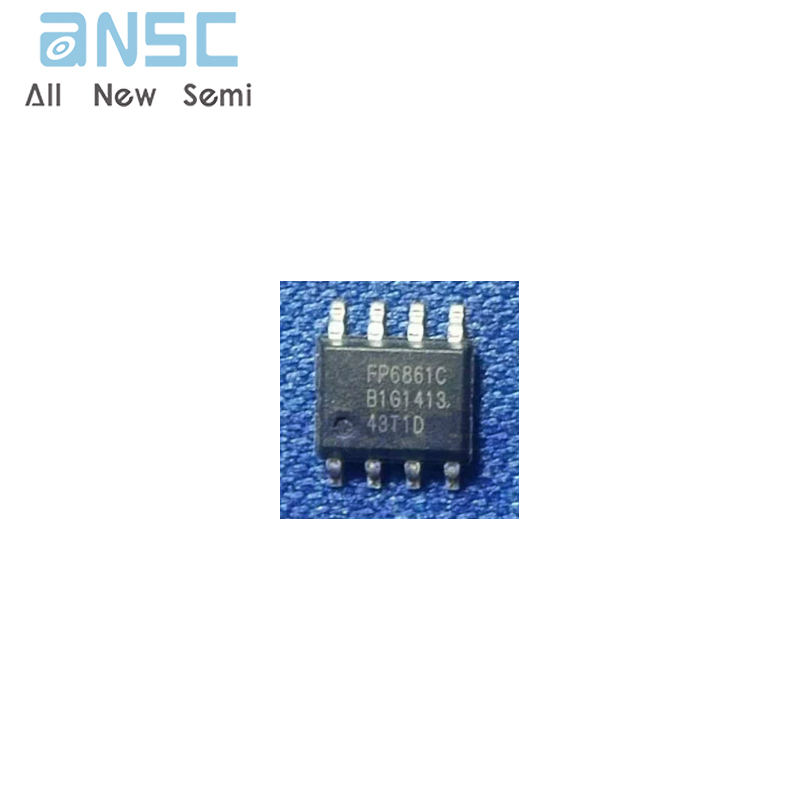

Product Photos

For more product information, please download the PDF
