Hot-selling and scarce TPS2062CDR Dual Channel Current-Limited Power-Distribution Switches SOP8 spot stock
Manufacturer Product Number
TPS2062CDR
Description
TPS2062CDR Dual Channel, Current-Limited, Power-Distribution Switches SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TPS20xxC dual power-distribution switch family is intended for applications such as USB where heavy capacitive loads and short-circuits may be encountered. This family offers multiple devices with fixed current-limit thresholds for applications between 1 A and 2 A.
The TPS20xxC dual family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current-limit threshold. This provides a predictable fault current under all conditions. The fast overcurrent response time eases the burden on the main 5 V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turn-on and turn-off.
Product Features
• Dual Power Switch Family
• Rated Currents of 1 A, 1.5 A, 2 A
• Accurate ±20% Current-limit Tolerance
• Fast Overcurrent Response – 2 µs (Typical)
• 70-mΩ (Typical) High-Side N-Channel MOSFET
• Operating Range: 4.5 V to 5.5 V
• Deglitched Fault Reporting (FLTx)
• Output Discharge When Disabled
• Reverse Current Blocking
• Built-in Softstart
• Ambient Temperature Range: –40°C to 85°C
Product Applications
• USB Ports/Hubs, Laptops, Desktops
• High-Definition Digital TVs
• Set Top Boxes
• Short-Circuit Protection
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TPS2062CDR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 90mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | TPS2062 |

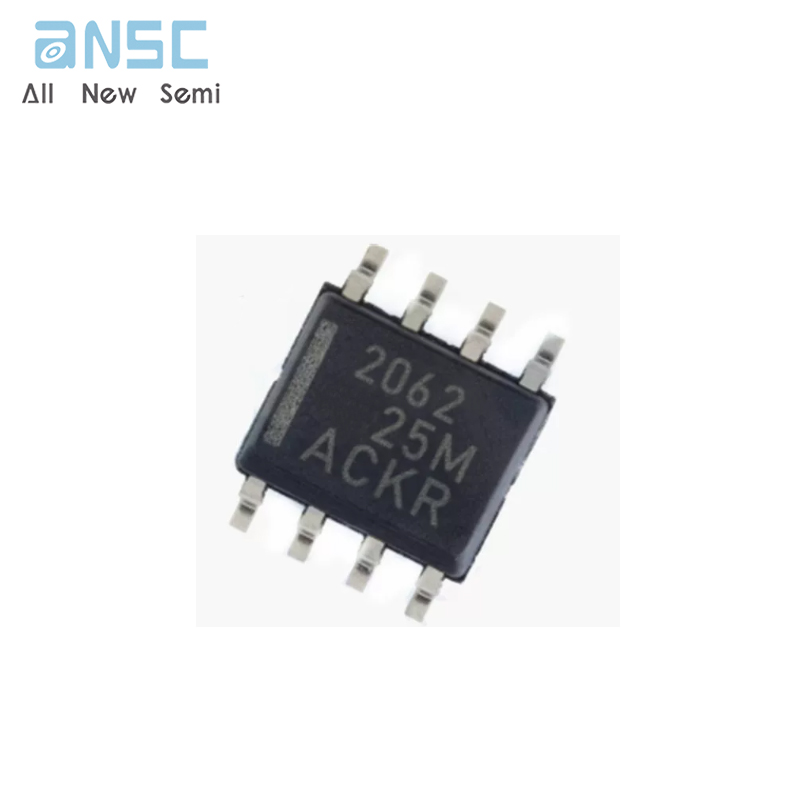

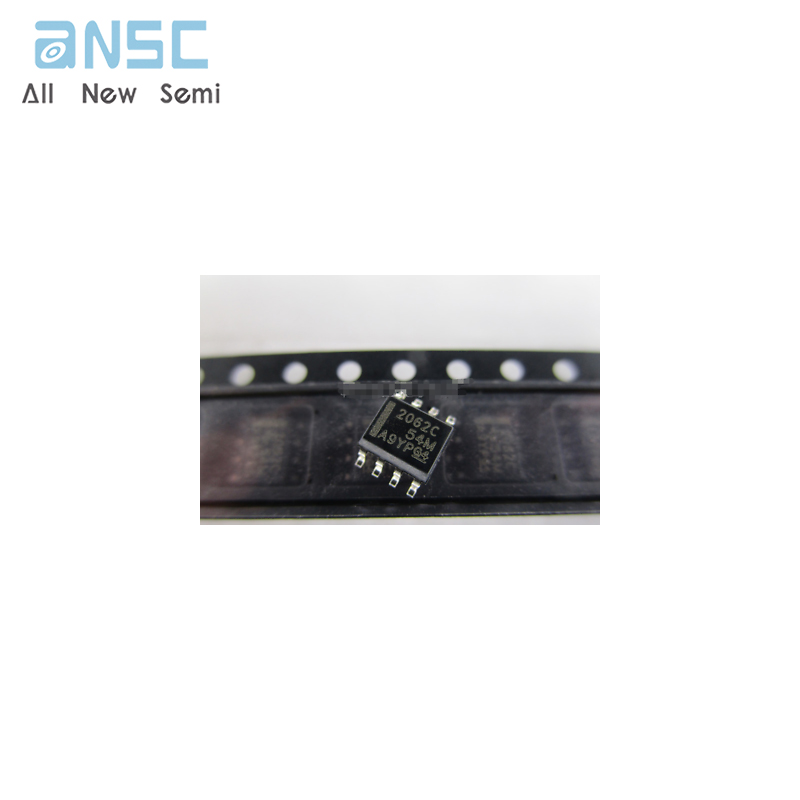

Product Photos
