Hot sale Original SKQYACE010 Keypad Switch, SPST, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight
Manufacturer Product Number
SKQYACE010
Description
Original SKQYACE010 Keypad Switch, SPST, 0.05A, 12VDC, Solder Terminal, Surface Mount-straight
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SKQYACE010 is a high-quality, round button actuator , designed for use in a variety of applications. This SPST (Single Pole Single Throw) switch features a compact outline of 6.10mm x 3.70mm and a package size of 6.1mm x 3.7mm x 2.5mm, making it an ideal choice for space-constrained designs. Features: SPST (Single Pole Single Throw) switch design Round button actuator with a compact outline of 6.10mm x 3.70mm Contact rating of 50mA at 12VDC Non-illuminated design SMD (Surface Mount Device) package with a package size of 6.1mm x 3.7mm x 2.5mm RoHS compliant, ensuring environmental sustainability Top actuated design for easy operation Applications: Primary applications: Consumer electronics, industrial control systems, and automotive applications where a compact, reliable switch is required. Secondary applications: Medical devices, aerospace, and defense systems where a high-reliability switch is necessary. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -SKQYACE010 |
| Manufacturer: | Original |
| Product Category: | Tactile Switches |
| RoHS: | / |
| Illuminated: | Non-Illuminated |
| Mounting Style: | SMD/SMT |
| Mounting Direction: | Straight |
| Stem Height: | 2.5 mm |
| Actuator: | Stem |
| Switch Function: | OFF - (ON) |
| Operating Force: | 1 N |
| Current Rating: | 50 mA |
| Voltage Rating DC: | 12 VDC |
| Ground Terminal: | Yes |
| Contact Form: | SPST |
| Termination Style: | Leadless |
| Color: | Black |
| Length: | 6.1 mm |
| Width: | 3.7 mm |
| Height: | 2.5 mm |
| Series: | SKQY |
| Life: | 50000 Cycle |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Brand: | / |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | + 70 C |
| Minimum Operating Temperature: | - 20 C |
| Product Type: | Tactile Switches |
| 3000 | |
| Subcategory: | Switches |
| Tradename: | TACT Switch |
| Travel: | 0.25 mm |

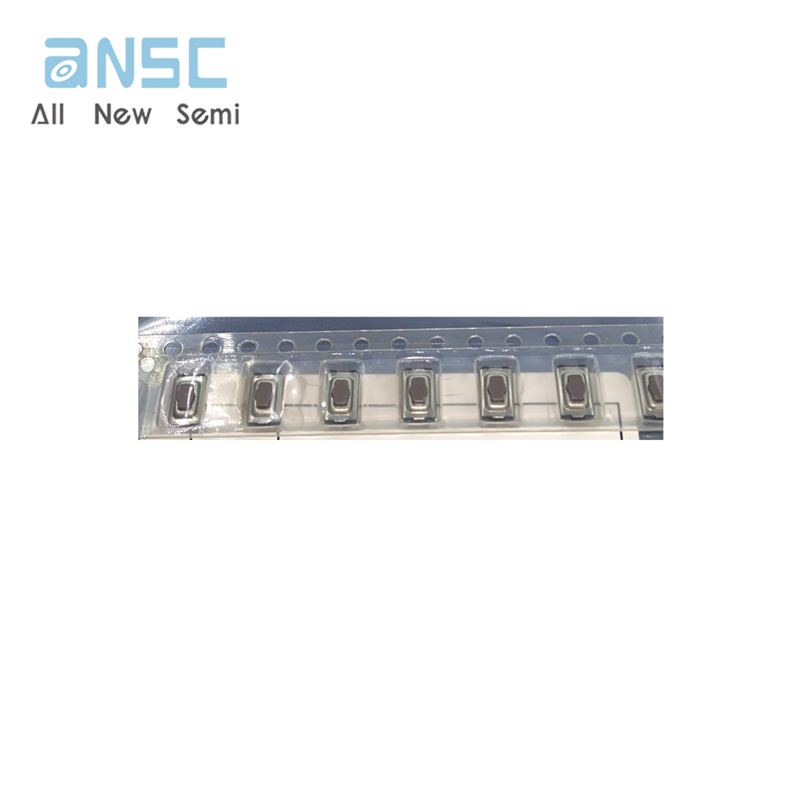

Actual image of the product

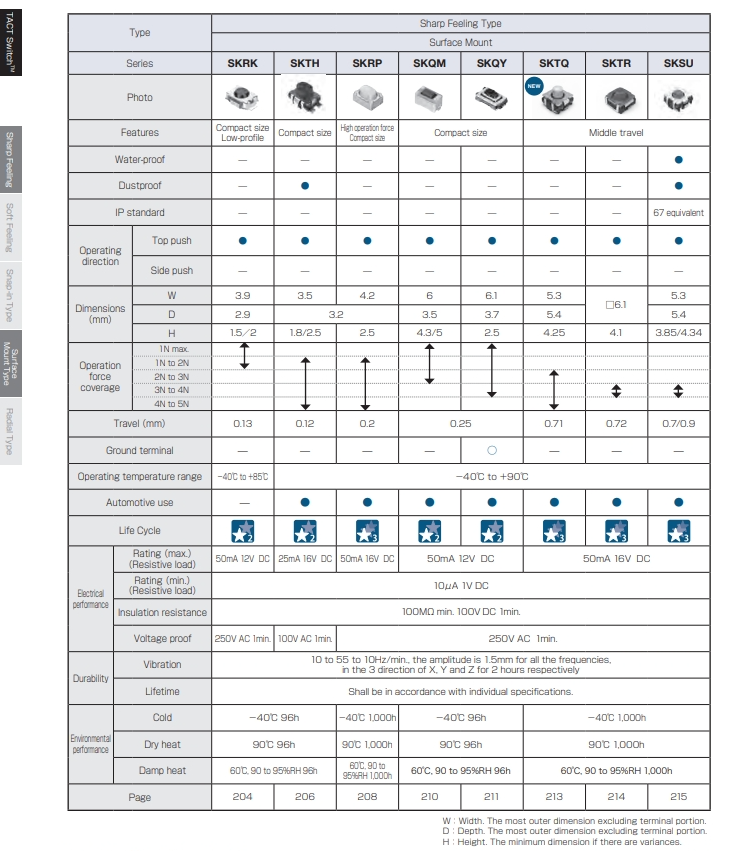

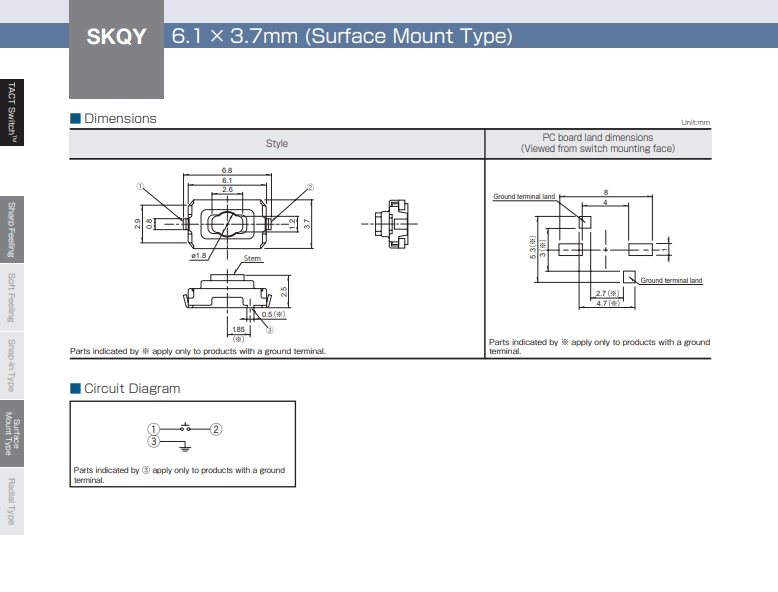

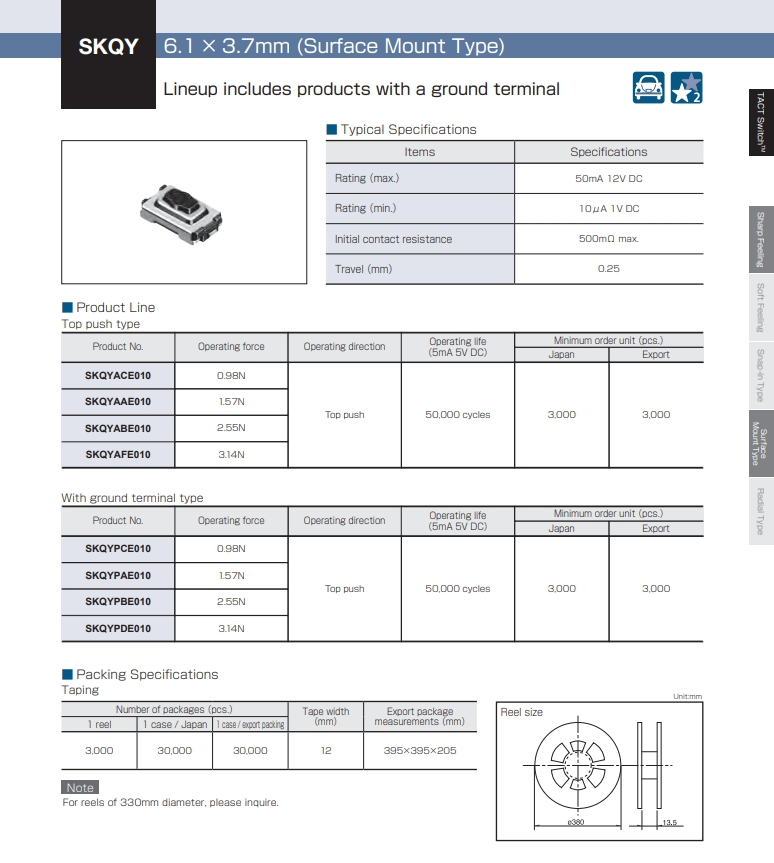

Product datasheet
For more information, please download
