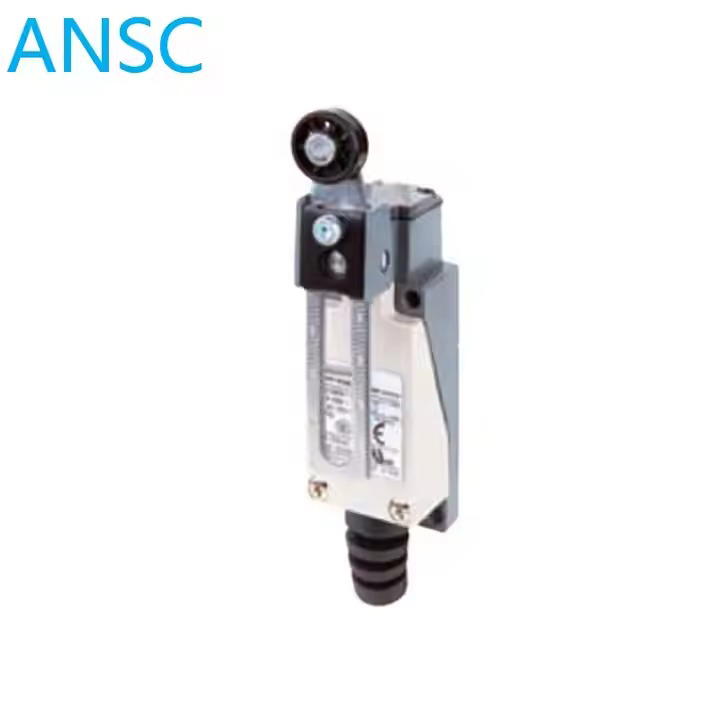

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
adjustable roller type limit switch D4V-8108SZ-N travel switch
Manufacturer Product Number
D4V-8108SZ-N
Description
D4V-8108SZ-N SWITCH LIMIT ADJUSTABLE ROLLER
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
Category |
Switches Limit Switches |
|
Manufacturer |
/ |
|
Series |
- |
|
Packaging |
Bulk |
|
Part Status |
Active |
Product Performance
| Protective structure | IP65 | |
| Lifespan See Notes 1, 2, 3, 4 | machine | More than 10 million times |
| electric | More than 300,000 cycles (AC250V, 5A, resistive load) | |
| Allowable operating speed | 5mm～0.5m/s | |
| Allowable operating frequency | machine | 120 times/min |
| electric | 30 times/min | |
| Insulation resistance | 100MΩ or more (DC500V) | |
| Contact resistance | 25mΩ or less (initial) | |
| Withstand voltage | Between the same extremors | AC1,000V 50/60Hz 1min |
| Between the live metal part and | AC1,500V 50/60Hz 1min | |
| the ground wire | ||
| Rated insulation voltage (Ui) | 250V | |
| Pollution (use environment) | 3(EN60947-5-1) | |
| Short-circuit protection device | 10A fusegG or gI(IEC60269) | |
| Conditional short-circuit current | 100A(EN60947-5-1) | |
| Rated Open Thermal Current (Ith) | 5A(EN60947-5-1) | |
| Degree of protection against electric shock | Class I | |
| Rated frequency | 50/60Hz | |
| vibration | Malfunction | 10~55Hz(Double amplitude 1.5mm) *2 |
| impact | endurance | 1,000 m/s2 (free position) or more |
| Malfunction | 300 m/s2 (operating limit position)*2 or more | |
| Use ambient temperature | -20~+60°C (no icing) | |
| Use ambient humidity | 90% RH or less | |
| weight | About 130~190g | |

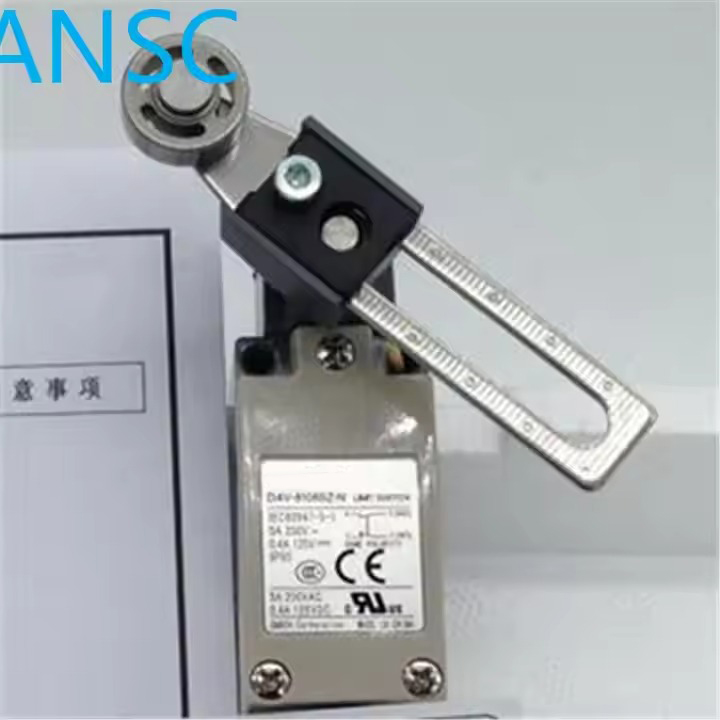

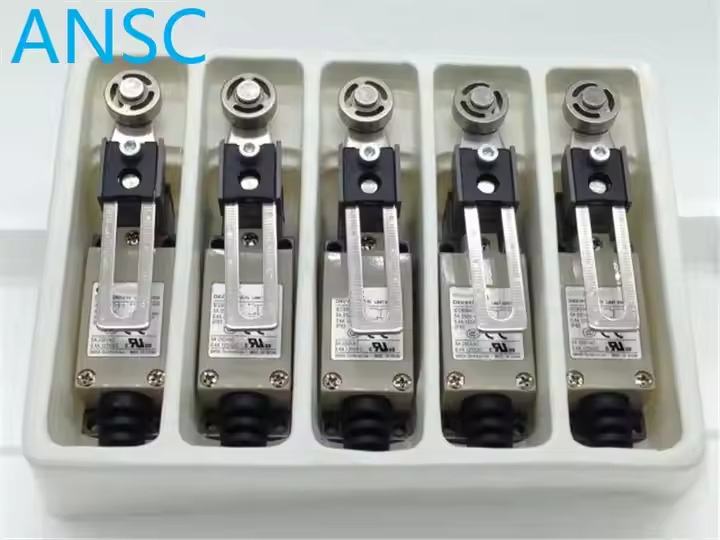

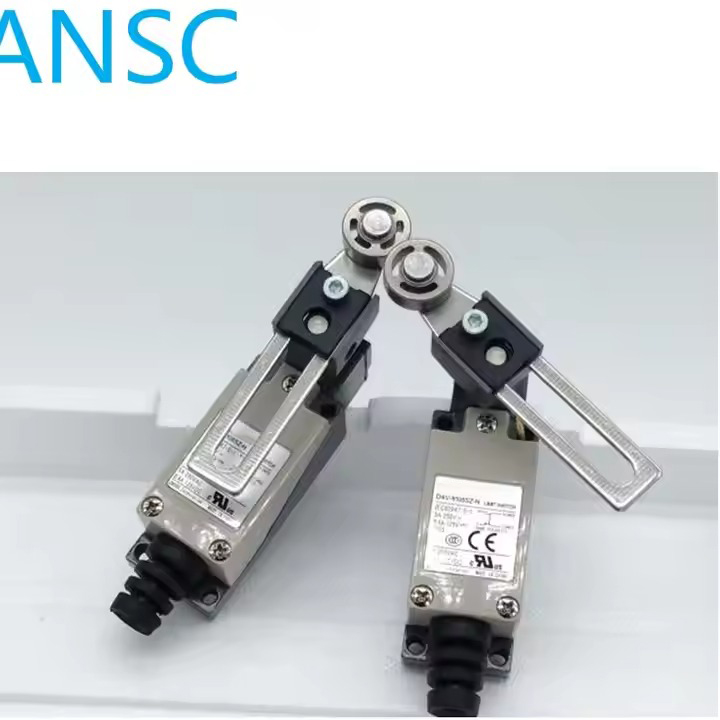

Actual image of the product
