Hot-selling and scarce MMBD3004S HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE SOT23 spot stock
Manufacturer Product Number
MMBD3004S
Description
MMBD3004S HIGH VOLTAGE SURFACE MOUNT SWITCHING DIODE SOT23 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product DaTa
Case: SOT-23, Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight: 0.008 gram
Product Features
• Fast Switching Speed
• Surface Mount Package ldeally Suited for Automatic Insertion
• High Conductance
• High Reverse Breakdown Voltage Rating
• Pb free product are available : 99% Sn above can meet RoHS environment substance directive request
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MMBD3004S |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) (per Diode) | 225mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 240 V |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |

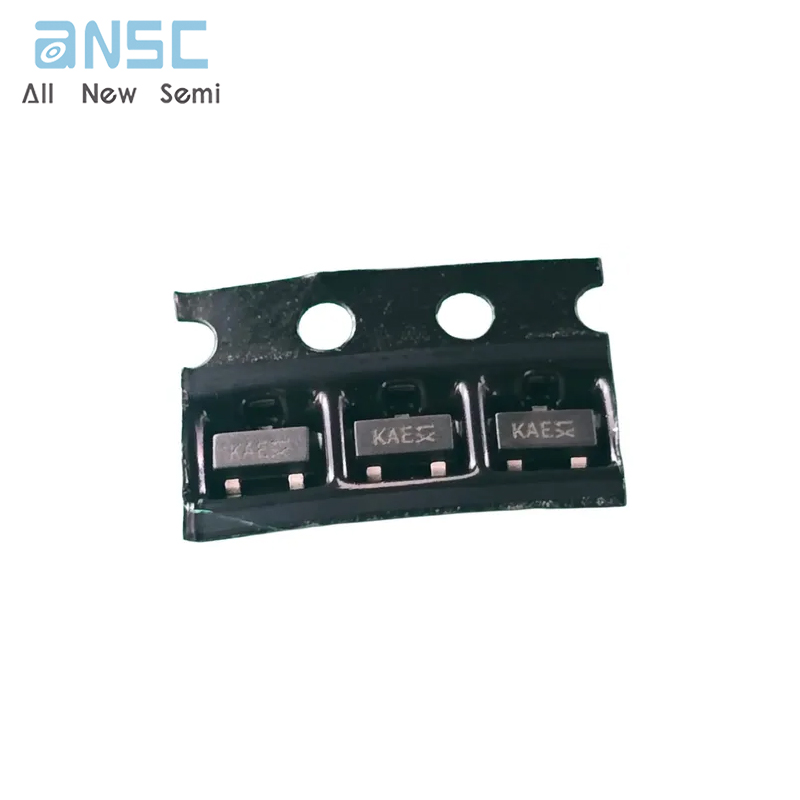

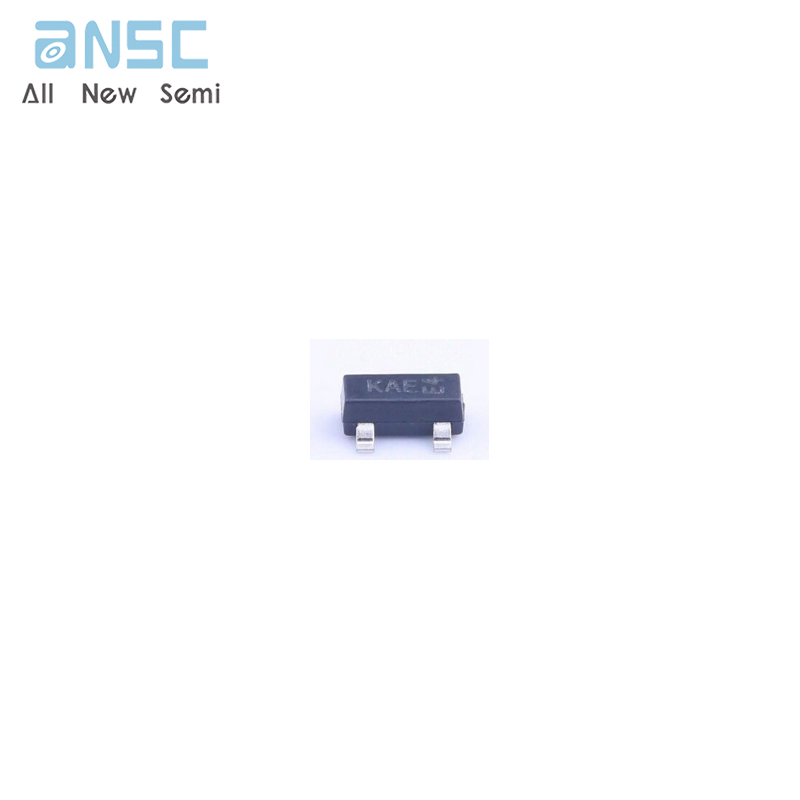

Product Photos
For more product information, please download the PDF
