Hot-selling and scarce SKY13351-378LF 20 MHz to 6.0 GHz GaAs SPDT Switch QFN spot stock

Product Descriptions

The SKY13351-378LF is a pHEMT GaAs FET I/C switch. The  switch may be used in transmit/receive applications by  connecting the RF common port (INPUT, pin 5) to either the  OUTPUT1 or OUTPUT2 port (pin 1 or 3, respectively) using a low  loss path (i.e., a positive voltage applied to either VCTL1 or VCTL2  pins). The switch is “reflective short” on the isolated port.

The switch is manufactured in a compact, 1 x 1 mm, 6-pin  exposed pad plastic Micro Leadframe Package Dual (MLPD)  package.

Product Features

 Positive voltage control (0 and 1.8 V to 0 and 5.0 V)

 Broadband frequency range: 20 MHz to 6.0 GHz

 Very low insertion loss, 0.35 dB typical @ 2.45 GHz

 High isolation, 24 dB typical @ 2.45 GHz

 Excellent linearity performance, IP0.5dB = +30 dBm

 Ultra-miniature, MLPD (6-pin, 1 x 1 mm) package (MSL1, 260 C per JEDEC J-STD-020)

Product Applications

 WLAN 802.11 a/b/g/n networks

 WLAN repeaters

 ISM band radios

 Low power transmit receive systems

Product Specification

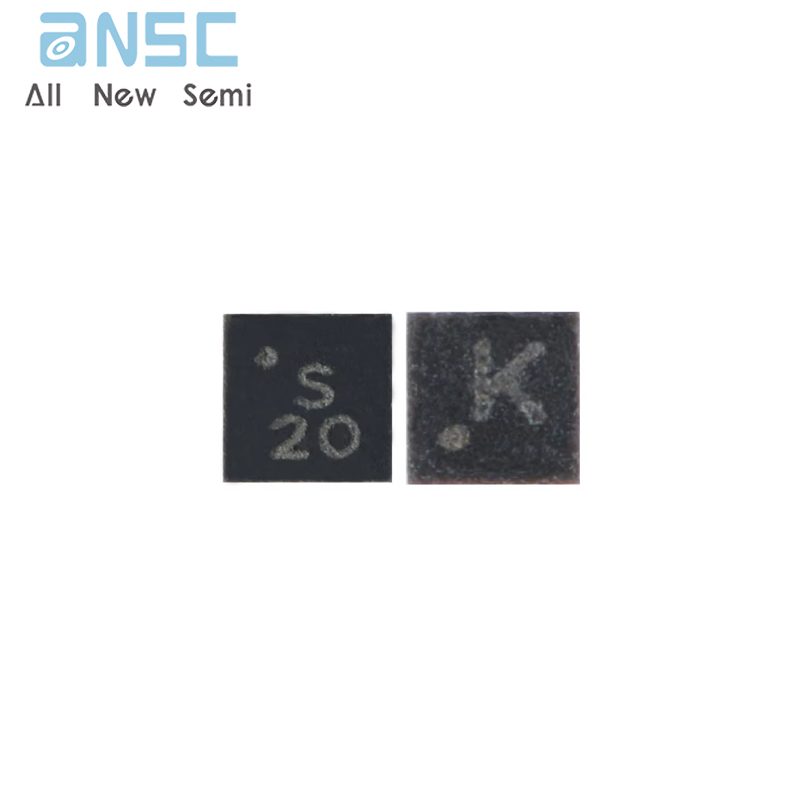

Product Photos

For more product information, please download the PDF
