Hot-selling and scarce BGS13SL9E6327 Wideband RF SP3T Switch TSLP-9-3 spot stock

Product Descriptions

The BGS13SL9 RF MOS switch is specifically designed for WLAN and Bluetooth applications. Any of the 3 ports can be used as termination of the diversity antenna handling up to 30 dBm.

This SP3T offers low insertion loss and high robustness against interferer signals at the antenna port and low harmonic generation in termination mode. The on-chip controller integrates CMOS logic and level shifters, driven by control inputs from 1.5 V to Vdd . The BGS13SL9 RF Switch is manufactured in Infineon’s patented MOS technology, offering the performance of GaAs with the economy and integration of conventional CMOS including the inherent higher ESD robustness. The device has a very small size of only 1.15 x 1.15 mm2 and a maximum height of 0.31 mm.

No decoupling capacitors are required in typical applications as long as no DC is applied to any RF port

Product Features

• 3 high-linearity TRx paths with power handling capability of up to 30 dBm

• High switching speed, ideal for WLAN and Bluetooth applications

• All ports fully bi-directional

• No decoupling capacitors required if no DC applied on RF lines

• Low insertion loss

• Low harmonic generation

• High port-to-port-isolation

• 0.1 to 3 GHz coverage

• High ESD robustness

• On-chip control logic

• Very small leadless and halogen free package TSLP-9-3(1.15x1.15mm2) with super low height of 0.31mm

• RoHS compliant package

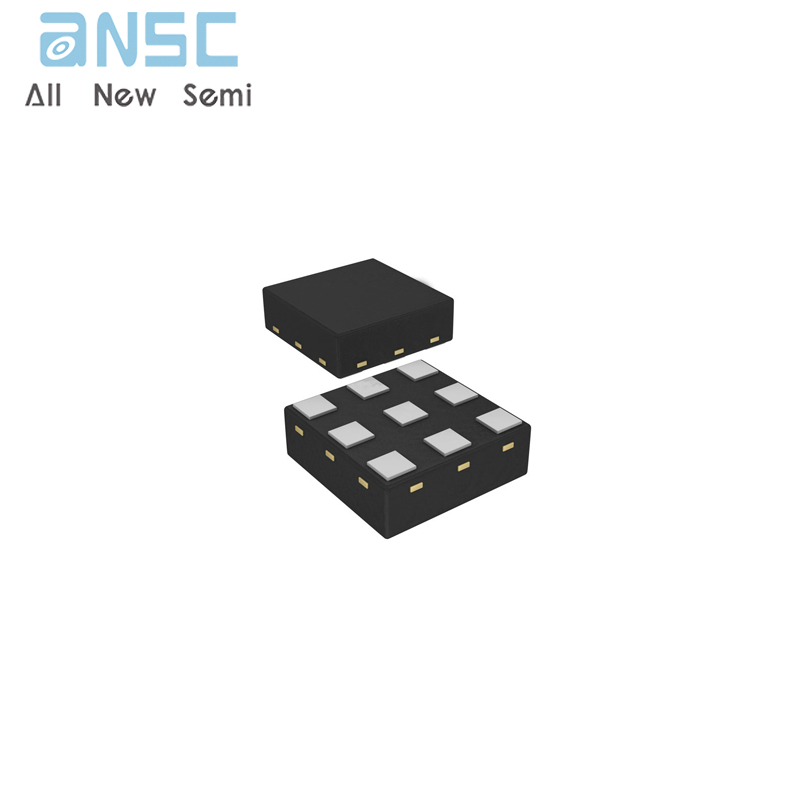

Product Photos

For more product information, please download the PDF
