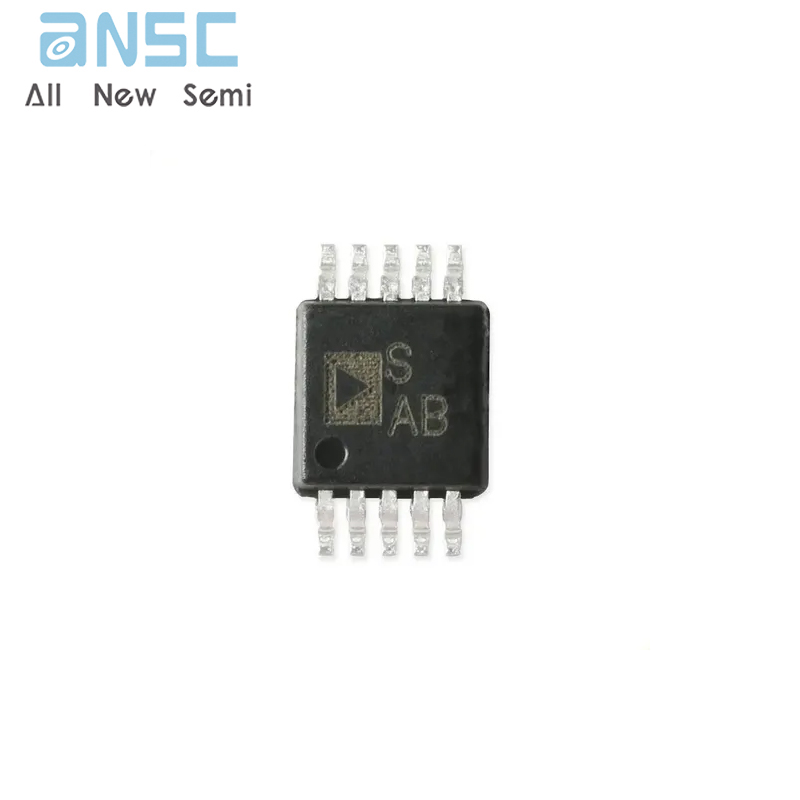

Hot-selling and scarce ADG736BRMZ-REEL CMOS Low Voltage2.5 Ω Dual SPDT Switch MSOP10 spot stock
Manufacturer Product Number
ADG736BRMZ-REEL
Description
ADG736BRMZ-REEL CMOS Low Voltage2.5 Ω Dual SPDT Switch MSOP10 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ADG736 is a monolithic device comprising two independently selectable CMOS single pole, double throw (SPDT) switches. These switches are designed using a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents, and wide input signal bandwidth.
The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.
The ADG736 operates from a single 1.8 V to 5.5 V supply, making it ideally suited to portable and battery-powered instruments.
Each switch conducts equally well in both directions when on, and each has an input signal range that extends to the power supplies.
The ADG736 exhibits break-before-make switching action.
The ADG736 is available in a 10-lead MSOP package.
Product Features
1.8 V to 5.5 V single supply
Automotive temperature range: −40°C to +125°C
2.5 Ω (typical) on resistance
Low on resistance flatness
−3 dB bandwidth > 200 MHz
Rail-to-rail operation
10-lead MSOP package
Fast switching times
tON: 16 ns
tOFF: 8 ns
Typical power consumption (<0.01 μW)
TTL-/CMOS-compatible
Qualified for automotive applications
Product Applications
USB 1.1 signal switching circuits
Cell phones
PDAs
Battery-powered systems
Communications systems
Sample-and-hold systems
Audio signal routing
Audio and video switching
Mechanical reed relay replacement
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ADG736BRMZ-REEL |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching(ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 12ns, 5ns (Typ) |
| -3db Bandwidth | 200MHz |
| Channel Capacitance (CS(off), CD(off)) | 9pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | -82dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | ADG736 |
Product Photos
For more product information, please download the PDF
