Hot-selling and scarce RFSW1012SR Broadband SPDT Switch QFN spot stock
Manufacturer Product Number
RFSW1012SR
Description
RFSW1012SR Broadband SPDT Switch QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The RFSW1012 is a single-pole double-throw (SPDT) switch designed for applications requiring very low insertion loss and high power handling capability. The excellent linearity performance of the RFSW1012 makes it ideal for use in Cellular BTS applications. This switch is ideally suited for use in CATV and SATV applications. The RFSW1012 is packaged in a compact 2mm x 2mm x 0.55mm, 12-pin, QFN package.
Product Features
5MHz to 6000MHz Operation
50 or 75 Applications
Low Insertion Loss: 0.30dB at 1980MHz
High Isolation: 37dB at 2GHz
High IP3: >75dBm at 2GHz
Compatible with Low Voltage Logic (VHIGH Minimum = 1.3V)
No External DC Blocking Capacitors Required on RF Paths Unless DC is Applied Externally
2000V HBM ESD Rating on All Ports
CTB/CSO: >100dBc (41dBmV/ch., 137 Channels)
Product Applications
Cellular BTS
CATV, SATV Applications
Post PA Switching
General Purpose Switching Applications

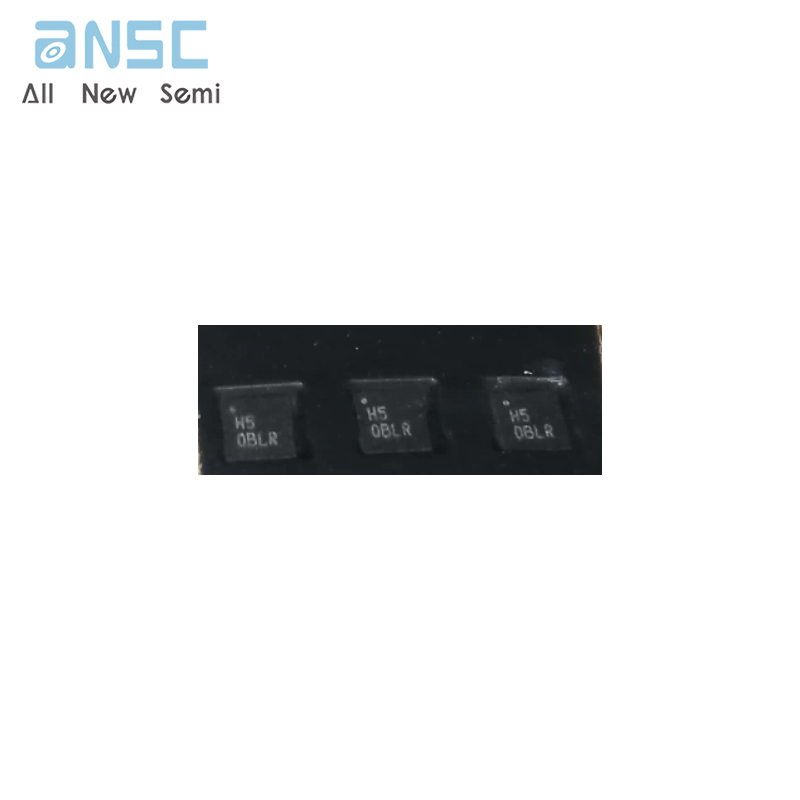

Product Photos
For more product information, please download the PDF
