Hot-selling and scarce AP2172AFGEG-7 1.0A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH WITH OUTPUT DISCHARGE DFN8 spot stock
Manufacturer Product Number
AP2172AFGEG-7
Description
AP2172AFGEG-7 1.0A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH WITH OUTPUT DISCHARGE DFN8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AP2162A and AP2172A are dual channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and available with both polarities of Enable input.
The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for application subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components.
All devices are available in SO-8, MSOP-8-EP and DFN3030E-8 packages.
Product Features
• Dual channel current-limited power switch with output discharge
• Fast short-circuit response time: 2µs
• 1.4A accurate current limiting
• Reverse Current Blocking
• 85mΩ on-resistance
• Input voltage range: 2.7V – 5.5V
• Built-in soft-start with 0.6ms typical rise time
• Short circuit and thermal protection
• Fault report (FLG) with blanking time (7ms typ)
• ESD protection: 2KV HBM, 300V MM
• Active high (AP2172A) or active low (AP2162A) enable
• Ambient temperature range: -40ºC to 85°C
• SO-8, MSOP-8-EP and DFN3030E-8 (Exposed Pad): Available in “Green” Molding Compound (No Br, Sb)
• Lead Free Finish/ RoHS Compliant (Note 1)
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified
Product Applications
• LCD TVs & Monitors
• Set-Top-Boxes, Residential Gateways
• Laptops, Desktops, Servers,
• Printers, Docking Stations, HUBs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AP2172AFGEG-7 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 85mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | U-DFN3030-8 (Type E) |
| Package / Case | 8-UDFN Exposed Pad |
| Base Product Number | AP2172 |

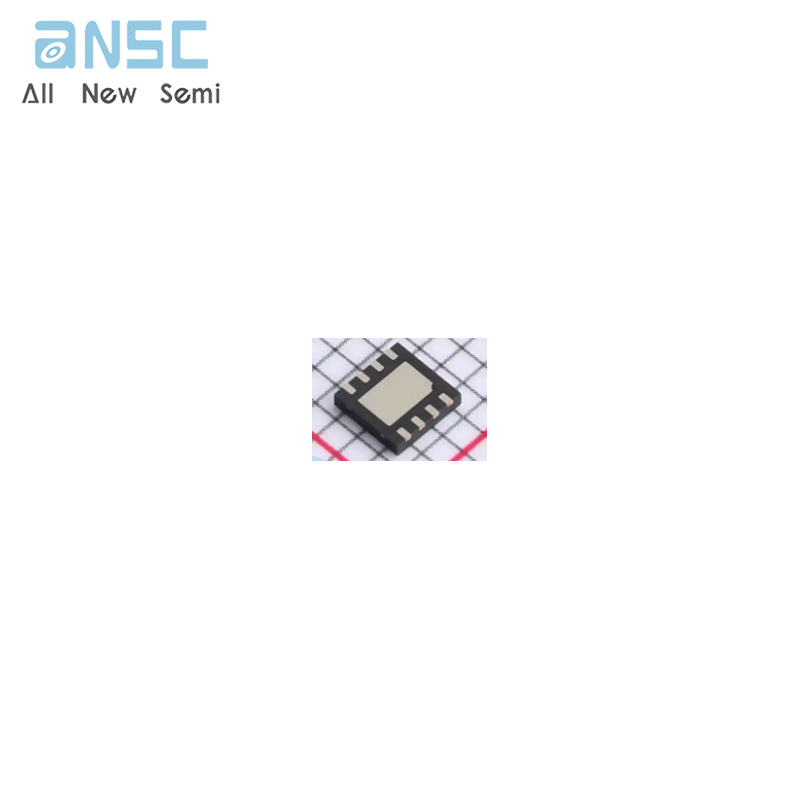

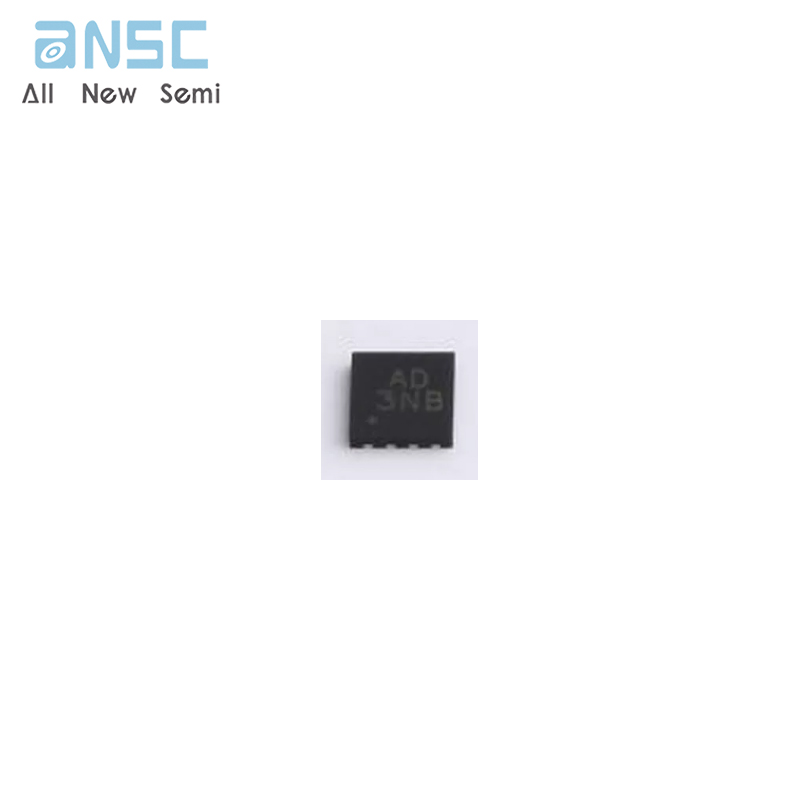

Product Photos
For more product information, please download the PDF
Other Products In The same category:
AP2172AFGEG-7 1.0A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH WITH OUTPUT DISCHARGE DFN8 spot stock
53In stock:
Can ship immediately
