Hot-selling and scarce SKY13377-313LF 0.5 – 6.0 GHz SPDT 10 W Switch 50 Ω Terminated QFN spot stock
Manufacturer Product Number
SKY13377-313LF
Description
SKY13377-313LF 0.5 – 6.0 GHz SPDT 10 W Switch 50 Ω Terminated QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SKY13377-313LF is a GaAs pHEMT Single-Pole, DoubleThrow (SPDT) high power switch with 50 Ω terminated outputs. The high linearity performance and low insertion loss achieved by the SKY13377-313LF make it an ideal choice for WiMAX and WLAN applications.

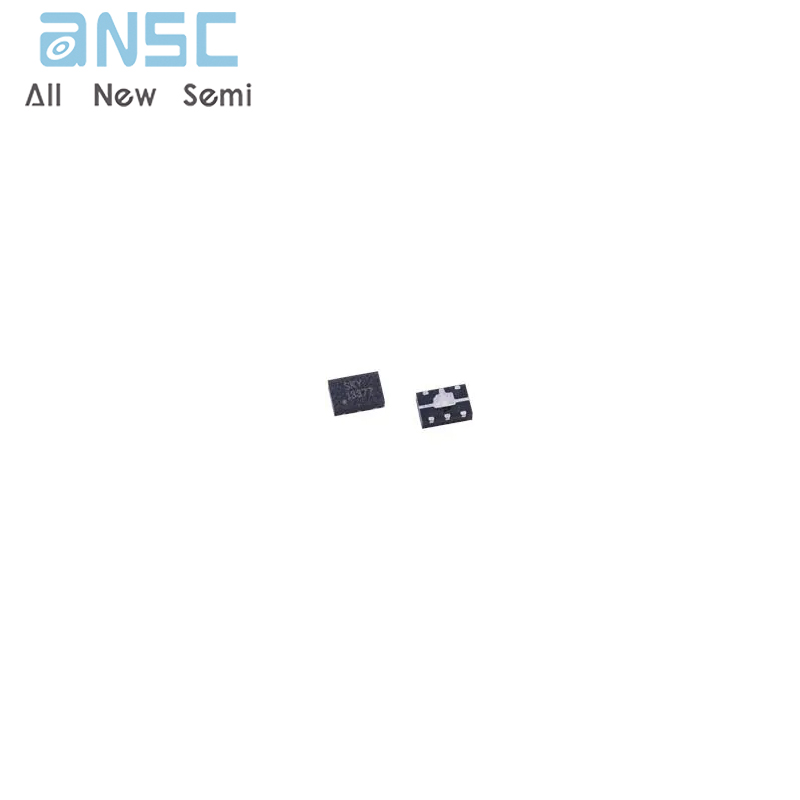

The switch is manufactured in a compact, 2 x 3 x 0.9 mm, 6-pin Dual Flat No-Lead (DFN) SMT package.
Product Features
50 Ω matched RF ports in all states
Low insertion loss: 0.7 dB @ 2.5 GHz
High isolation: 31 dB @ 2.5 GHz
High IP1dB: +39 dBm
Small, DFN (6-pin, 2 x 3 x 0.9 mm) SMT package (MSL1, 260 °C per JEDEC J-STD-020)
Product Applications
WiMAX 802.16
Dual-band WLANs (802.11 a/b/g/n)
LTE/4G systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SKY13377-313LF |
| Category | RF and Wireless |
| RF Switches | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Last Time Buy |
| RF Type | 802.11a/b/g/WiFi, WLAN |
| Topology | Absorptive |
| Circuit | SPDT |
| Frequency Range | 500MHz ~ 6GHz |
| Isolation | 24dB |
| Insertion Loss | 1.2dB |
| Test Frequency | 5.85GHz |
| P1dB | 39dBm |
| IIP3 | 57dBm |
| Impedance | 50Ohm |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x3) |
| Base Product Number | SKY13377 |
Product Photos
For more product information, please download the PDF
