Hot-selling and scarce ADG884BCBZ 0.5 Ω CMOS, Dual 2:1 MUX/SPDT Audio Switch QFN10 spot stock

Product Descriptions

The ADG884 is a low voltage CMOS device containing twoindependently selectable single-pole, double-throw (SPDT)switches . This device offers ultralow on resistance of less than0.4 Ω over the full temperature range, making the part an idealsolution for applications that require minimal distortionthrough the switch. The ADG884 also has the capability ofcarrying large amounts of current, typically 600 mA at 5 Voperation .

The ADG884 is available in a 10 bump, 2.0 mm × 1.50 mmWLCSP package, a 10-lead LFCSP package, and a 10-leadMSOP package. These tiny packages make the ADG884 theideal solution for space-constrained applications .

When on, each switch conducts equally well in both directionsand has an input signal range that extends to the supplies . TheADG884 exhibits break-before-make switching action .

Product Features

1.8 V to 5.5 V operation

Ultralow on resistance

0.34 Ω typ

0.38 Ω max at 5 V supply

Excellent audio performance, ultralow distortion

0.1 Ω typ

0.15 Ω max RON flatness

High current carrying capability

400 mA continuous

600 mA peak current at 5 V supply

Rail-to-rail switching operation

Typical power consumption (<0.1 μW)

Product Applications

Cellular phones

PDAs

MP3 players

Power routing

Battery-powered systems

PCMCIA cards

Modems

Audio and video signal routing

Communications systems

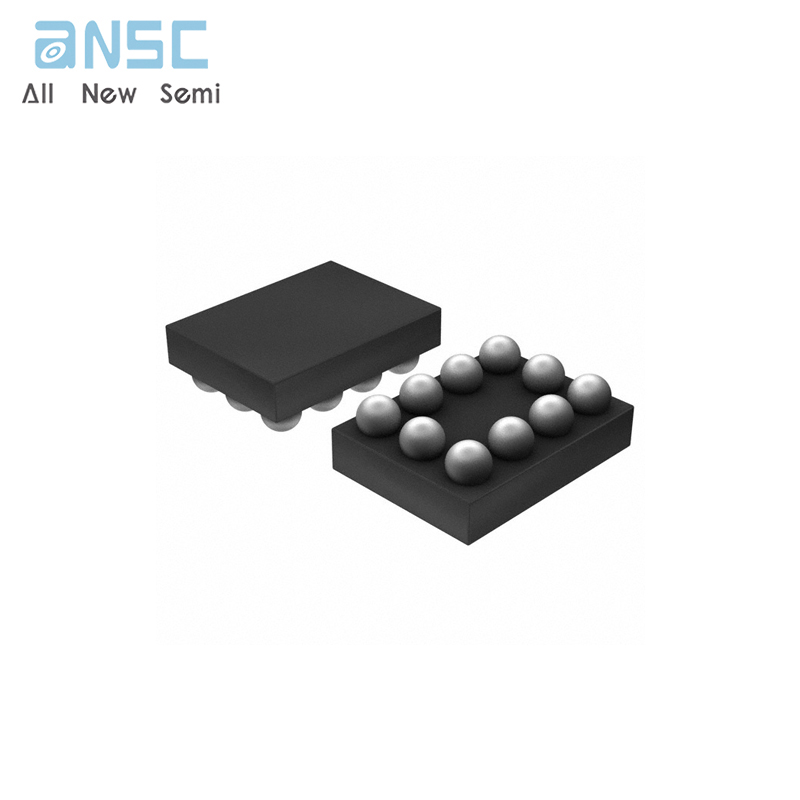

Product Photos

For more product information, please download the PDF
