Hot sale original ACF451832-153-T Filters 1 FUNCTIONS 50V 0.3A DATA LINE FILTER EIA STD PACKAGE SIZE 1812 3 PIN
Manufacturer Product Number
ACF451832-153-T
Description
ACF451832-153-T Filters 1 FUNCTIONS 50V 0.3A DATA LINE FILTER EIA STD PACKAGE SIZE 1812 3 PIN
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Details 3-Terminal Filters for Signal Line and DC Power Line SMD EMI Filter 3-Terminal 25dB 0.3A 50VDC Flat Style SMD Product Features• The ACF series are T-type EMC filters incorporating ferrite chip beads and multilayer ceramic chip capacitors. • The external structure consists entirely of ferrite, enabling these parts to achieve superior attenuation characteristics despite their extremely compact dimensions. • Because they can be mounted on edge, the ACF series are ideal for high-density circuit configurations. • Available for reflow soldering. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-ACF451832-153-T |
| Manufacturer | / |
| Additional Feature | T-TYPE CIRCUIT |
| Attenuation Frequency-Max | 11 MHz |
| Attenuation@Freq-Max | 25 dB |
| DC Resistance-Max | 0.15 Ω |
| Filter Type | DATA LINE FILTER |
| Height | 1.8 mm |
| Insulation Resistance-Min | 1000 MΩ |
| Length | 4.5 mm |
| Manufacturer Series | ACF |
| Mounting Type | SURFACE MOUNT |
| Number of Functions | 1 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -25 °C |
| Packing Method | TAPE AND REEL |
| Physical Dimension | L4.5XB3.2XH1.8 (mm)/L0.177XB0.126XH0.071 (inch) |
| Rated Current | 0.3 A |
| Rated Voltage | 50 V |

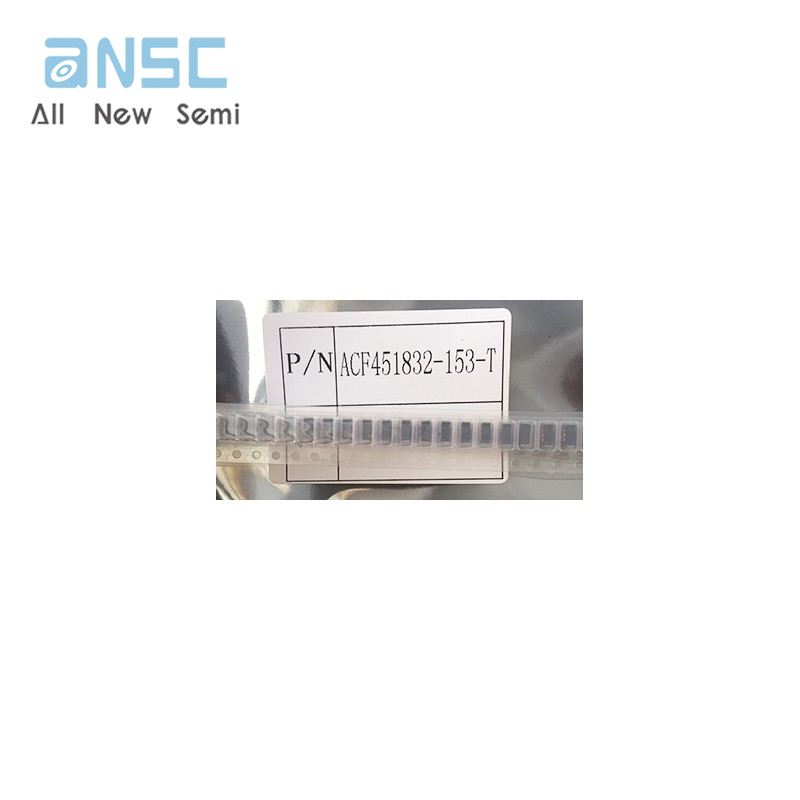

Actual image of the product

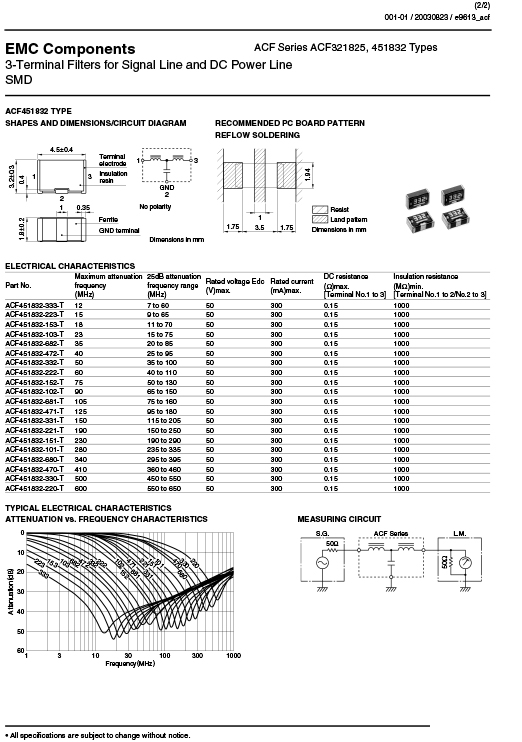

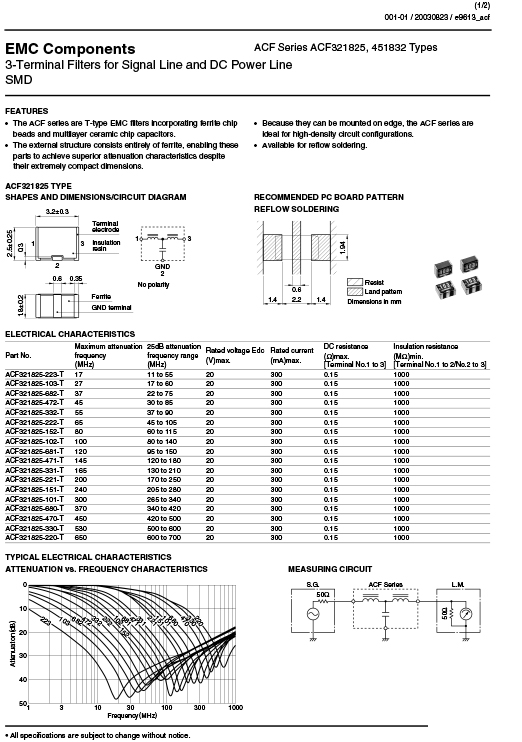

Product datasheet
For more information, please download
