Hot-selling and scarce B39162-B3524-B710 SAW RF filter SMD spot stock
Manufacturer Product Number
B39162-B3524-B710
Description
B39162-B3524-B710 SAW RF filter SMD spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Package size 2.5±0 .1 mm × 2.0±0 .1 mm
Package height 0.86±0 .1 mm
Package code DCC4A
Approximate weight 0.02 g
RoHS compatible
Package for Surface Mount Technology (SMT)
Ni/Au-plated terminals
Lead free soldering compatible with J-STD20C
Filter surface passivated
Electrostatic Sensitive Device (ESD)
Moisture Sensitivity Level 1 (MSL1)
AEC-Q200 qualified component family (Grade 1: −40 °C to +125 °C)
Product Applications
Low insertion attenuation
Additional pass band for characteristics for Galileo
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-B39162-B3524-B710 |
| Category | Filters |
| SAW Filters | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Frequency - Center | 1.575GHz |
| Insertion Loss | 1.4dB |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |

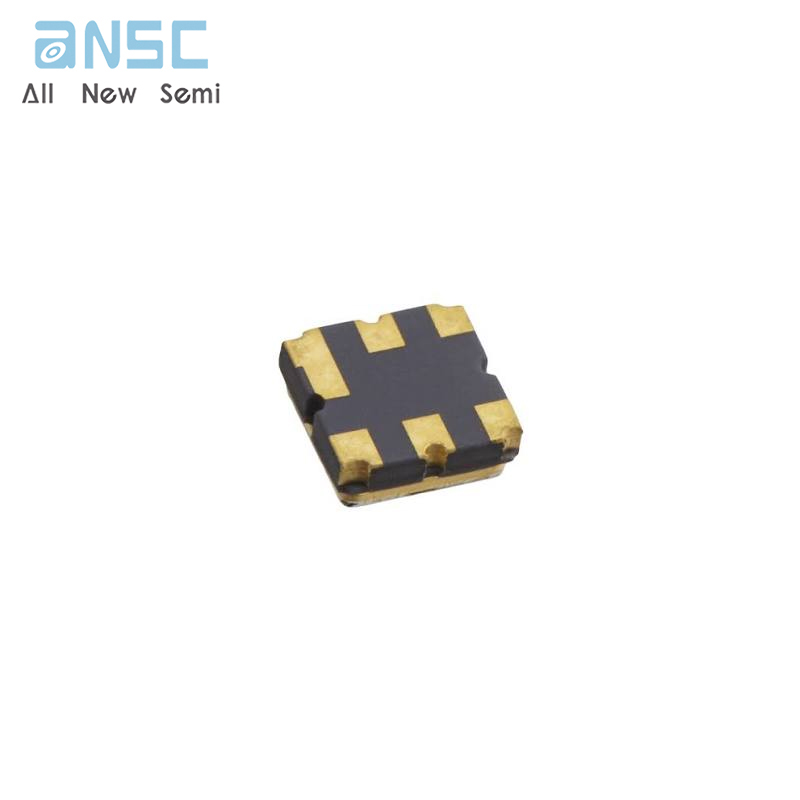

Product Photos
For more product information, please download the PDF
