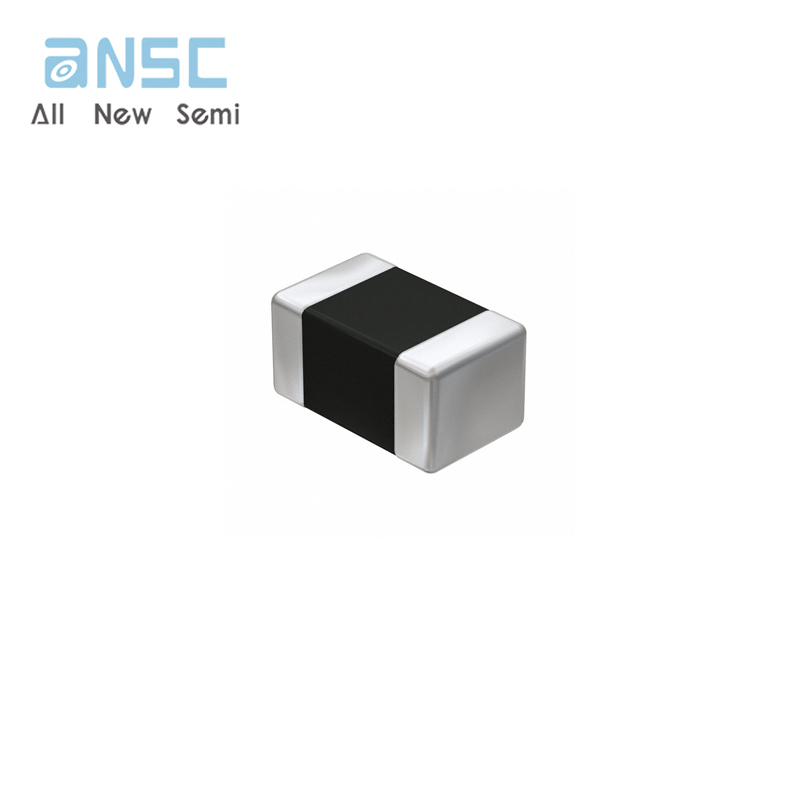

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original BLM18KG260TN1B Data Line Filters Ferrite Chip, 1 Function(s), 6A, 2 Pin(s)
Manufacturer Product Number
BLM18KG260TN1B
Description
BLM18KG260TN1B Data Line Filters Ferrite Chip, 1 Function(s), 6A, 2 Pin(s)
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| PART# | BLM18KG260TN1B |
| Additional Feature | Bag |
| Case Code | 603 |
| Construction | Chip Bead |
| DC Resistance-Max | 0.007 Ω |
| Filter Type | Ferrite Chip |
| Frequency-Max | 100 Mhz |
| Frequency-Min | 100 Mhz |
| Height | 0.6 Mm |
| JESD-609 Code | e3 |
| Length | 1.6 Mm |
| Mounting Type | Surface Mount |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Impedance | 26 Ohm Ω |
| Packing Method | Bulk |
| Rated Current | 6 A |
| Terminal Finish | Tin (Sn) |
| Width | 0.8 Mm |
Actual image of the product
