Image shown is a representation only.

Exact specifications should be obtained from the product data sheet.

Hot sale Original B82422A1104K100 FIXED IND SMD 100UH Unshielded Drum Core, Wirewound Inductor 65 mA 11.5Ohm Max 2-SMD

Manufacturer Product Number
B82422A1104K100
Description

Original B82422A1104K100 FIXED IND SMD 100UH Unshielded Drum Core, Wirewound Inductor 65 mA 11.5Ohm Max 2-SMD, J-Lead

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Size 1210 (EIA) or 3225 (IEC)
Rated inductance 0.0082 ... 100 μH
Rated current 65 ... 800 mA
Features
■ Temperature range up to +145 °C
■ High Q factor
■ High resonance frequency
■ Qualified to AEC-Q200
■ Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
■ RoHS-compatible
Applications
■ Filtering of supply voltages, coupling, decoupling
■ Antenna systems
■ Automotive electronics
■ Telecommunications
■ Consumer and data processing equipment
■ Industrial electronics

Product Description

Type Description
PART# B82422A1104K100
Category Inductors, Coils, Chokes
Fixed Inductors
Mfr Original
Series SIMID
Packaging Tape & Reel (TR)
Cut Tape (CT)
/
Part Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 65 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 11.5Ohm Max
Q @ Freq 27 @ 2.52MHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Supplier Device Package 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.083" (2.10mm)

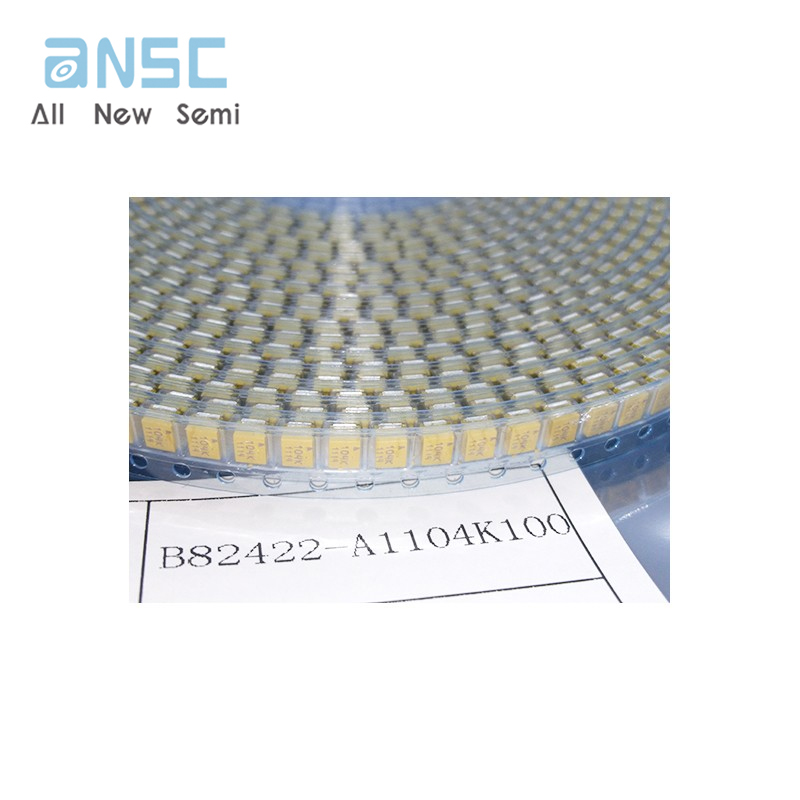

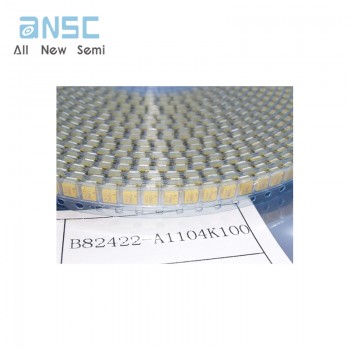

Actual image of the product

B82422A1104K100
