Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

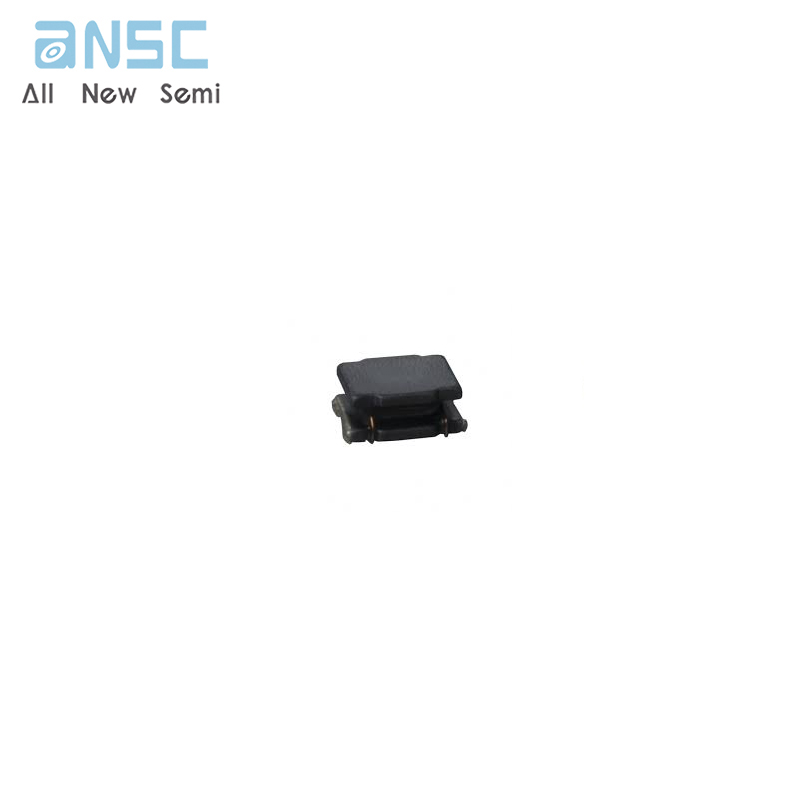

Hot-selling and scarce LQH2MCN2R2M02L 2.2 µH Unshielded Drum Core, Wirewound Inductor 425 mA 624mOhm Max 0806 spot stock
Manufacturer Product Number
LQH2MCN2R2M02L
Description
LQH2MCN2R2M02L 2.2 µH Unshielded Drum Core, Wirewound Inductor 425 mA 624mOhm Max 0806 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Applications
•Power equipment:Products that can be used in power equipment such as renewable energy equipment,energy storage equipment and EV charging equipment and whose functions are not directly related to the protection of human life and property.
•Industrial equipment:Products that can be used in industrial equipment such as base stations,manufacturing equipment, industrial robotics equipment,and measurement equipment,and whose functions do not directly relate to the protection of human life and property.
•Medical equipment (GHTF Class C)*Except for implant/surgery/auto injector:Products that can be used for medical equipment of Class C of the international classification class GHTF and whose malfunction is considered to pose a relatively high risk to the human body.
•Medical equipment (GHTF Class A and B):Products that can be used for medical equipment regulated by Class A and Class B of the international classification class GHTF and whose functions do not directly relate to the protection of human life and property.
•Consumer equipment:Products that can be used in consumer equipment such as home appliances,audio/visual equipment, communication equipment,information equipment,office equipment,and household robotics,and whose functions are not directly related to the protection of human life and property.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LQH2MCN2R2M02L |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | LQH2 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 425 mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 624mOhm Max |
| Frequency - Self Resonant | 70MHz |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.037" (0.95mm) |
| Base Product Number | LQH2MCN |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
LQH2MCN2R2M02L 2.2 µH Unshielded Drum Core, Wirewound Inductor 425 mA 624mOhm Max 0806 spot stock
1099In stock:
Can ship immediately
