Hot sale Original LQG15HS6N8J02D Fixed Inductors 6.8 nH Unshielded Multilayer Inductor 600 mA 220mOhm Max 0402 (1005 Metric)
Manufacturer Product Number
LQG15HS6N8J02D
Description
LQG15HS6N8J02D Inductors FIXED IND 6.8NH 600MA 0.22OHM SM
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: LQG15HS6N8J02D Fixed Inductor 1. Description The LQG15HS6N8J02D is a high-frequency, fixed inductor . This component is part of the LQG15 series and is specifically tailored for applications requiring high Q factor and low inductance values. The inductor features a rectangular package with a surface mount design, making it ideal for compact electronic systems. 2. Features Inductance: 6.8 nH Inductance Tolerance: ±5% DC Resistance (DCR): 240 mOhm Max Current Rating: 300 mA DC Operating Temperature Range: -55°C to 125°C Frequency-Self-Resonant: 4.5 GHz Q Factor: 8 at 100 MHz Package/Case Size: 0402 (1005 Metric) Mounting Type: Surface Mount (SMD/SMT) Terminal Finish: Matte Tin (Sn) with Nickel (Ni) barrier Terminal Placement: Dual Ended, Wraparound Shape 3. Applications The LQG15HS6N8J02D is primarily suited for RF applications where high-frequency performance is crucial. Some of the primary applications include: - RF Filters: Used in filtering circuits to remove unwanted frequencies. - Impedance Matching Networks: Essential in matching the impedance between different components or circuits. - Oscillators: Helps stabilize the frequency of oscillators by providing a stable inductive reactance. - Power Amplifiers: Used in power amplifier circuits to improve efficiency and reduce distortion. Secondary applications include: - Switching Regulators: Helps in filtering out noise and improving the overall efficiency of switching regulators. - High-Frequency Transformers: Can be used as a substitute for small transformers in high-frequency applications. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - LQG15HS6N8J02D |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | / |
| Series | LQG15 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Air |
| Inductance | 6.8 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 220mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 4.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Base Product Number | LQG15HS |

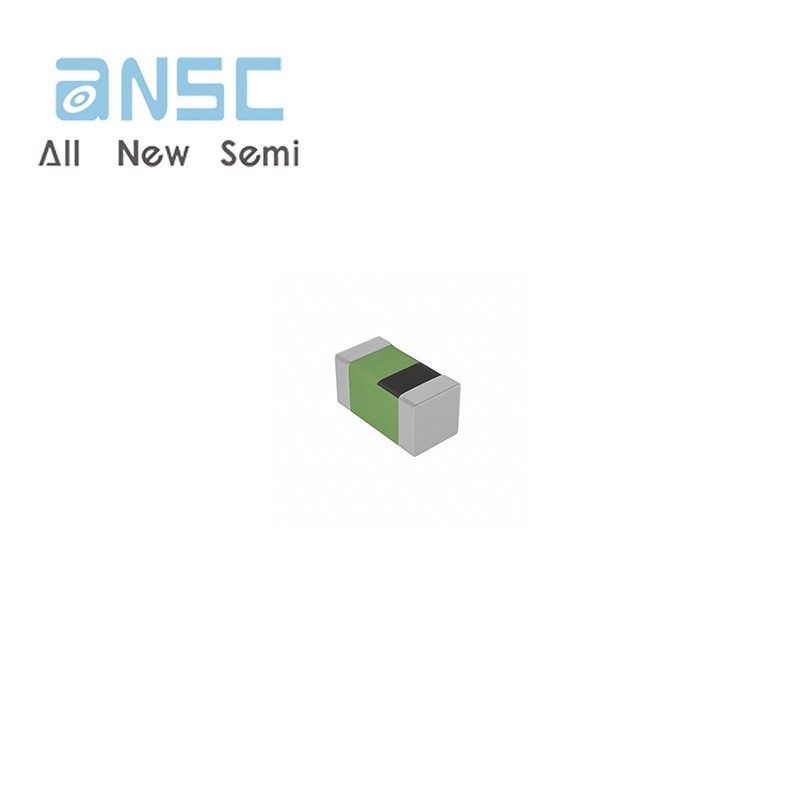

Actual image of the product
