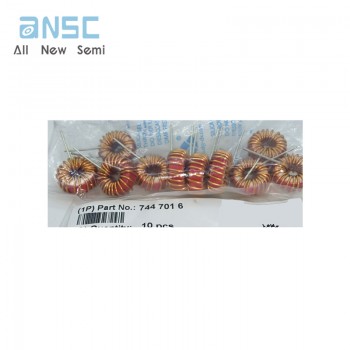

Hot sale Original 7447016 FIXED IND 29µH Unshielded Toroidal Inductor 5A 15mOhm Max Radial, Vertical (Open)

Product Details

7447016 - WE-FI Series Toroidal Fixed Inductor

The 7447016 is a high-performance toroidal fixed inductor designed to meet the demands of modern electronic applications. This inductor is part of the WE-FI series, known for its reliability and versatility. With a current rating of 5A, it offers robust performance in various electrical circuits.

Features

• High Current Rating: The 7447016 can handle a maximum DC current of 5A, making it suitable for applications requiring high power handling.

• Low DC Resistance: The inductor features a maximum DC resistance of 15mOhm, ensuring minimal energy loss and efficient operation.

• Compact Design: Measuring 18.5mm in length and 18.5mm in diameter, this inductor is compact yet effective in space-constrained designs.

• Ferrite Core Material: Constructed with a ferrite core, it provides excellent magnetic properties and stability over a wide temperature range.

• Operating Temperature Range: The inductor operates reliably between -40°C and 105°C, making it suitable for use in various environmental conditions.

• Mounting Flexibility: Available in through-hole mounting type, it offers flexibility in PCB design and assembly.

Applications

Primary Applications: 1. Power Supplies: Ideal for use in power supply circuits where high current handling is required. 2. Filtering Circuits: Effective in filtering applications due to its low DC resistance and high inductance value. 3. Audio Equipment: Used in audio equipment for its ability to handle high currents while maintaining signal integrity.

Secondary Applications: 1. Motor Control Circuits: Can be used in motor control circuits where high current pulses are present. 2. Switching Regulators: Suitable for use in switching regulators where high efficiency and reliability are crucial.
