Hot sale original IHLP4040DZERR56M11 FIXED IND 32A 1.8 MOHM SMD 560 nH Shielded Molded Inductor 32 A 1.8mOhm Max Nonstandard
Manufacturer Product Number
IHLP4040DZERR56M11
Description
IHLP4040DZERR56M11 Inductor FIXED IND 560NH 32A 1.8 MOHM SMD
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| FEATURES • Shielded construction • Frequency range up to 1.0 MHz • Lowest DCR/μH, in this package size • Handles high transient current spikes without saturation • Ultra low buzz noise, due to composite construction • Excellent temperature stability for inductance and saturation APPLICATIONS • PDA/notebook/desktop/server applications • High current POL converters • Low profile, high current power supplies • Battery powered devices • DC/DC converters in distributed power systems • DC/DC converter for Field Programmable Gate Array (FPGA) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-IHLP4040DZERR56M11 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | IHLP-4040DZ-11 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 560 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 32 A |
| Current - Saturation (Isat) | 22A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4040 |
| Size / Dimension | 0.425" L x 0.400" W (10.80mm x 10.16mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |

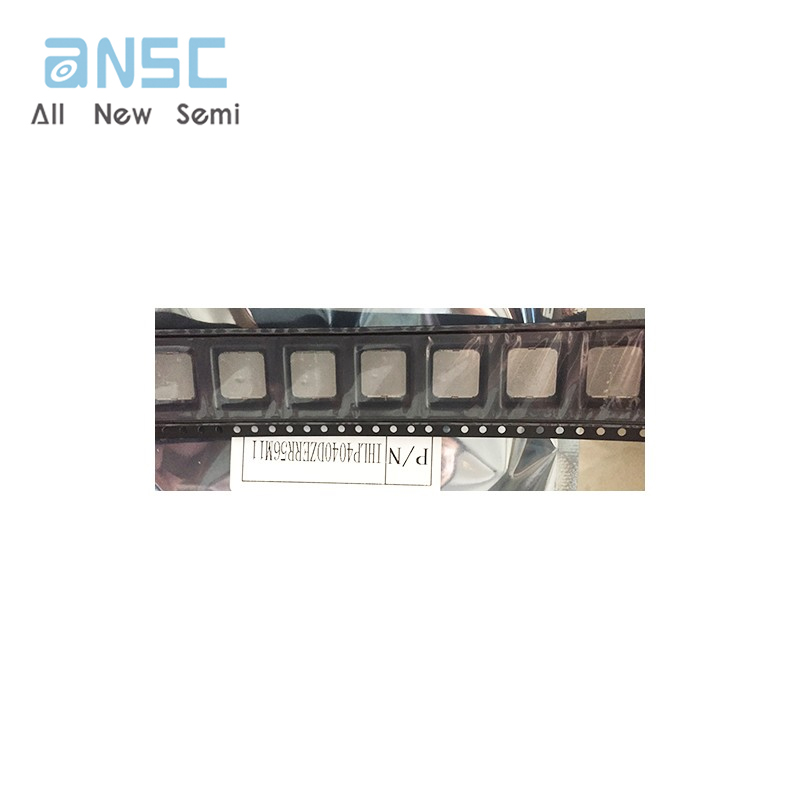

Actual image of the product

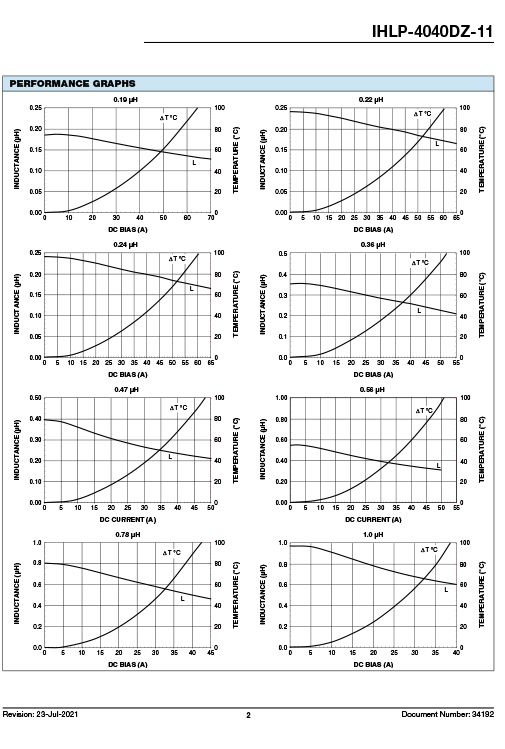

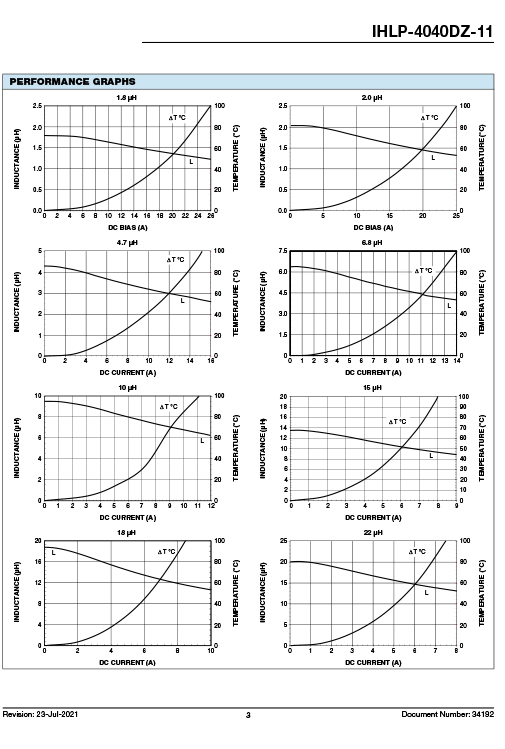

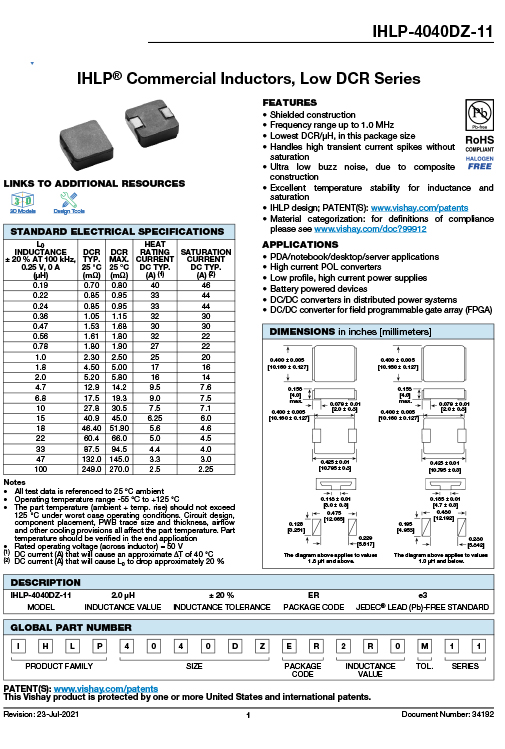

Product datasheet
For more information, please download
