Hot sale Original IHLP2525AHER1R5M01 Fixed Inductors FIXED IND 1.5UH 4A 34 MOHM SMD Shielded Molded Inductor Max Nonstandard

Manufacturer Product Number

IHLP2525AHER1R5M01

Description

Original IHLP2525AHER1R5M01 Fixed Inductors FIXED IND 1.5UH 4A 34 MOHM SMD

Package Condition

Tape & Reel (TR) Cut Tape (CT)

Datasheet

IHLP2525AHER1R5M01

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

FEATURES

• Lowest height (3.0 mm) in this package footprint

• Shielded construction

• Excellent DC/DC energy storage up to 5 MHz. Filter inductor applications up to SRF (see “Standard Electrical Specifications” table)

• Lowest DCR/μH, in this package size

• Handles high transient current spikes without saturation

• Ultra low buzz noise, due to composite construction

APPLICATIONS

• PDA / notebook / desktop / server applications

• High current POL converters

• Low profile, high current power supplies

• Battery powered devices

• DC/DC converters in distributed power systems

• DC/DC converter for Field Programmable Gate Array (FPGA)

Product Description

Type#	Description
ANSC PART#	ANSC-IHLP2525AHER1R5M01
Category	Inductors, Coils, Chokes
Category	Fixed Inductors
Mfr	/
Series	IHLP-2525AH-01
Packaging	Tape & Reel (TR)
	Cut Tape (CT)
	/
Part Status	Active
Type	Molded
Material - Core	-
Inductance	1.5 µH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	11.5A
Shielding	Shielded
DC Resistance (DCR)	34mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.071" (1.80mm)

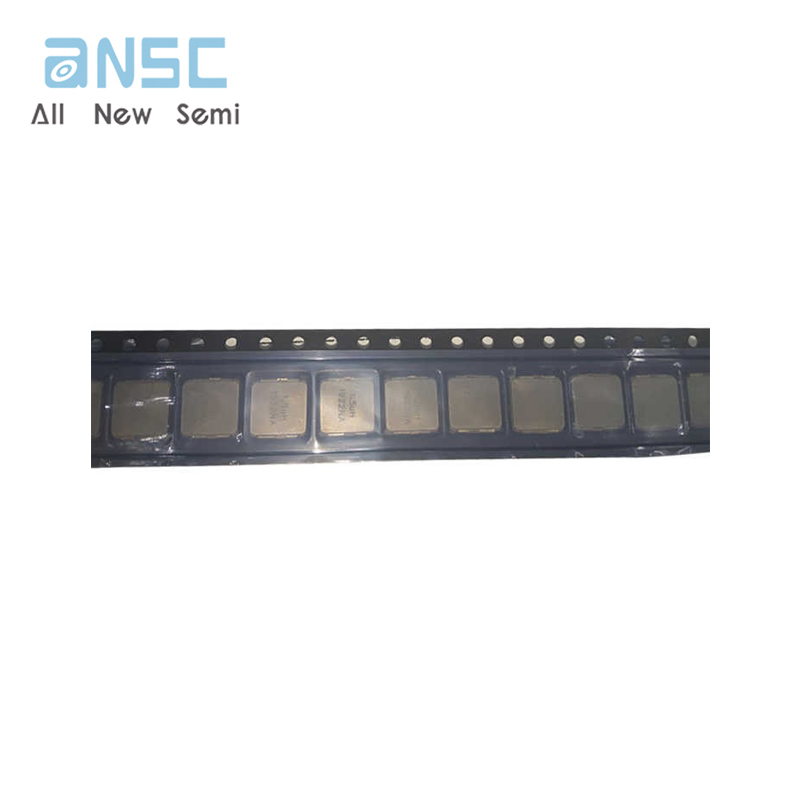

Actual image of the product

IHLP2525AHER1R5M01

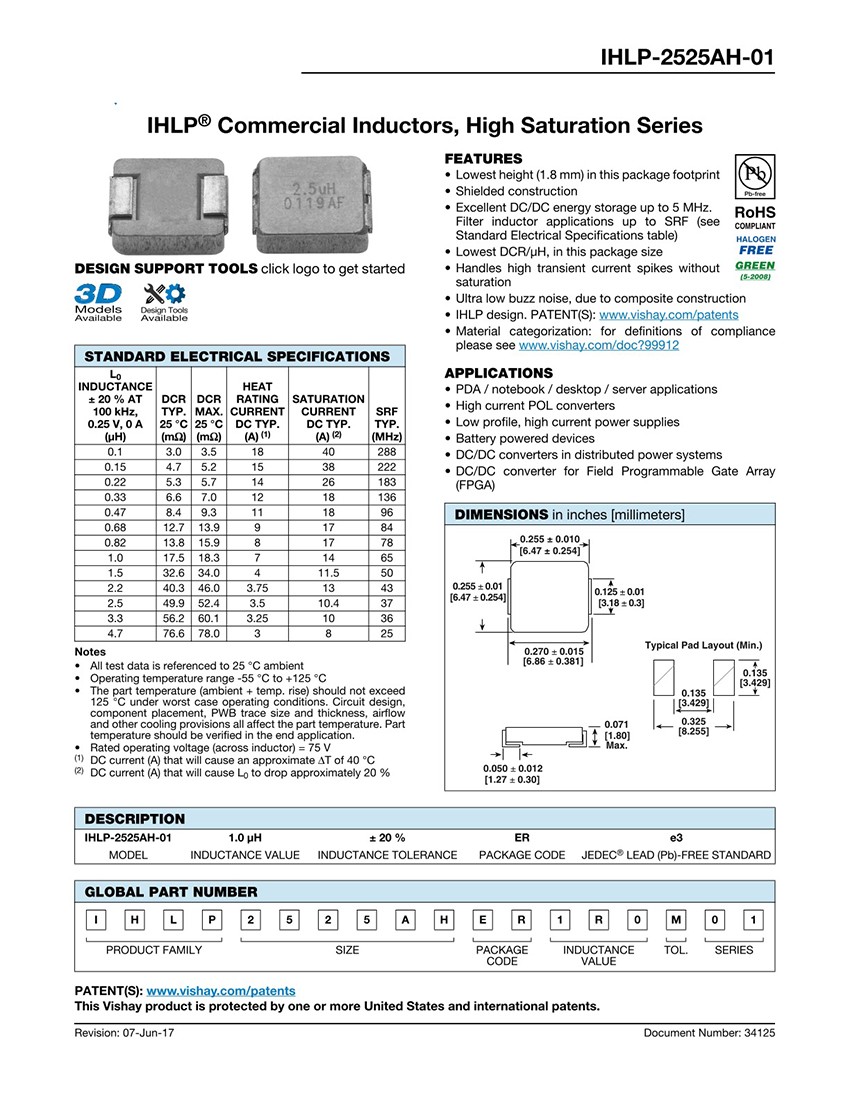

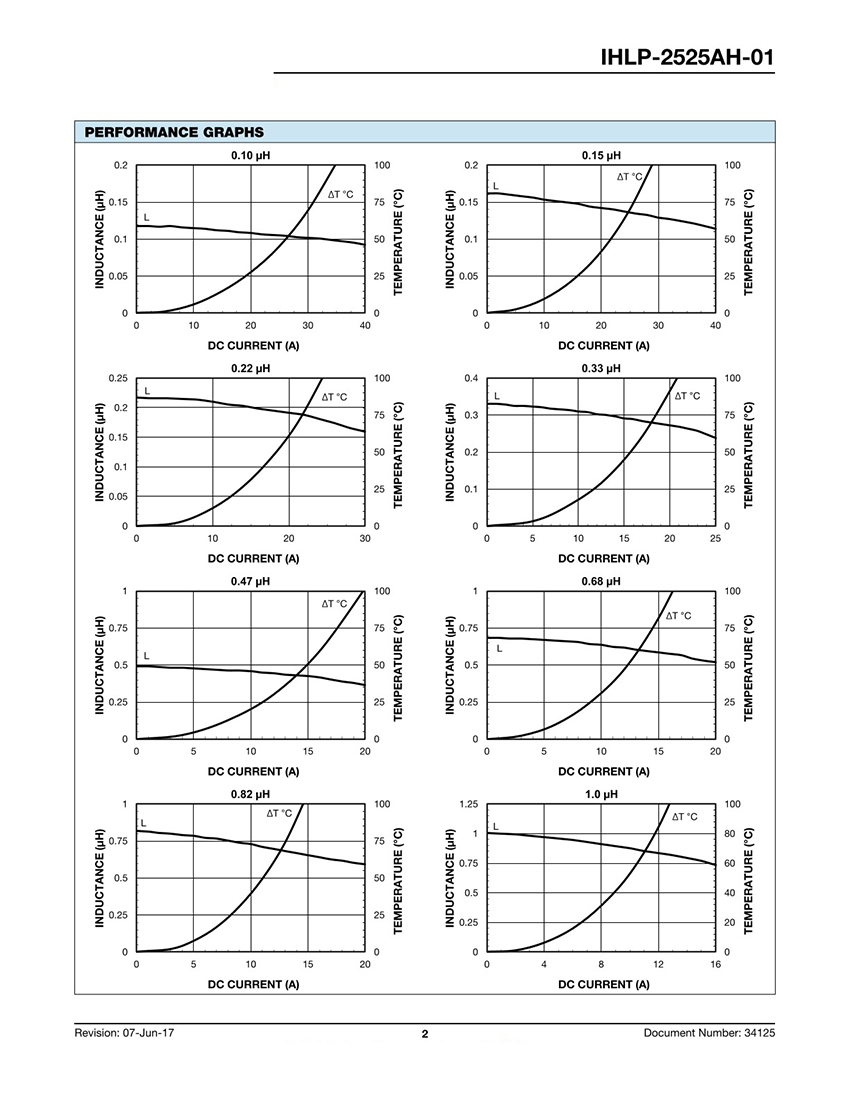

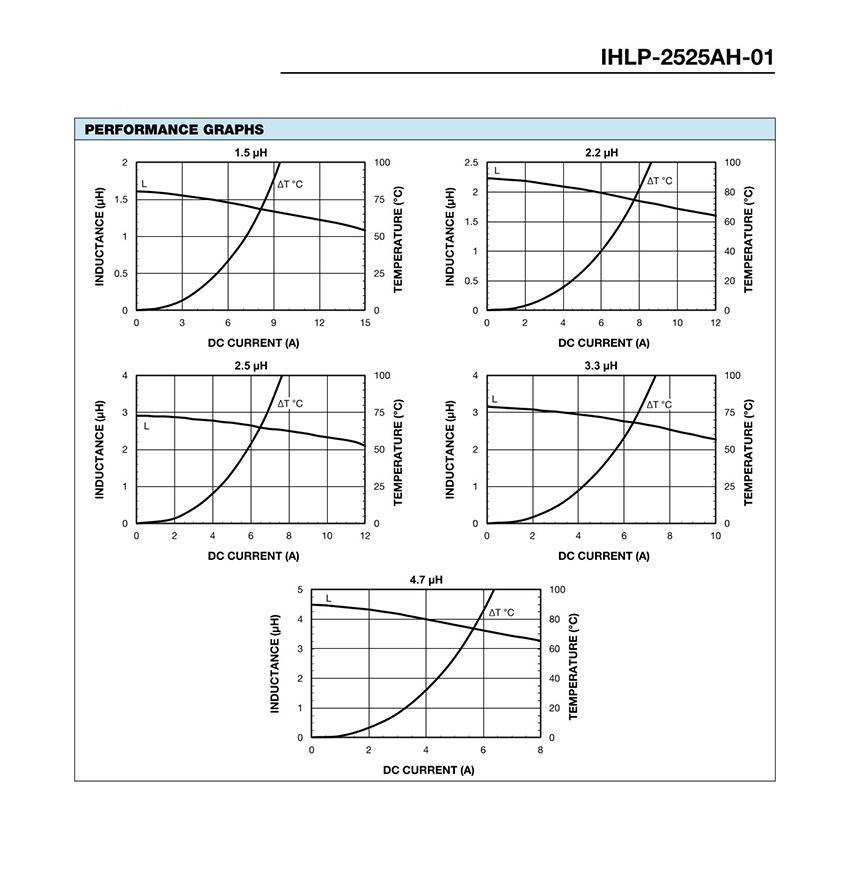

Product datasheet

For more information, please download
