Hot sale Original CW201212-22NJ Fixed Inductors FIXED IND 22NH 600MA 100MOHM SMD 0805
Manufacturer Product Number
CW201212-22NJ
Description
Original CW201212-22NJ Fixed Inductors FIXED IND 22NH 600MA 100MOHM SMD 0805 Unshielded Drum Core Wirewound Inductor
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description: The CW201212-22NJ is a high-frequency, wirewound ceramic fixed inductor designed by Bourns Inc. This surface-mount device (SMD) is optimized for use in radio frequency (RF) applications, offering a compact rectangular package with a case code of 0805 (2012 metric). The inductor features a copper conductor and a ceramic core, ensuring reliable performance and stability across various operating conditions. Features: - High Frequency Operation: The CW201212-22NJ operates effectively up to 3.3 GHz, making it suitable for high-frequency applications such as RF circuits. - Low DC Resistance: With a DC resistance (DCR) of 100 mOhm, this inductor minimizes power loss and maximizes efficiency in your circuit designs. - High Q Factor: The inductor boasts a high Q factor of 60 measured at 500 MHz, indicating excellent energy storage and minimal energy loss. - Surface Mount Technology (SMT): Designed for surface mount applications, the CW201212-22NJ is easy to integrate into modern PCB designs using standard SMT techniques. - Environmental Compliance: The inductor is ROHS3 compliant and Pb-free, ensuring it meets stringent environmental regulations. - Temperature Stability: Operating within a temperature range of -40°C to 125°C, this inductor maintains its performance under various environmental conditions. Applications: 1. Primary Applications: - RF Filters and Matching Networks - High-Frequency Amplifiers - Microwave Circuits Secondary Applications: Power Supply Filters Audio Frequency Filters Medical Device Components |
Product Description
| Type | Description |
| ANSC PART# | ANSC - CW201212-22NJ |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | / |
| Series | CW201212 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 22 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 100mOhm |
| Q @ Freq | 60 @ 500MHz |
| Frequency - Self Resonant | 3.3GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | CW201212 |

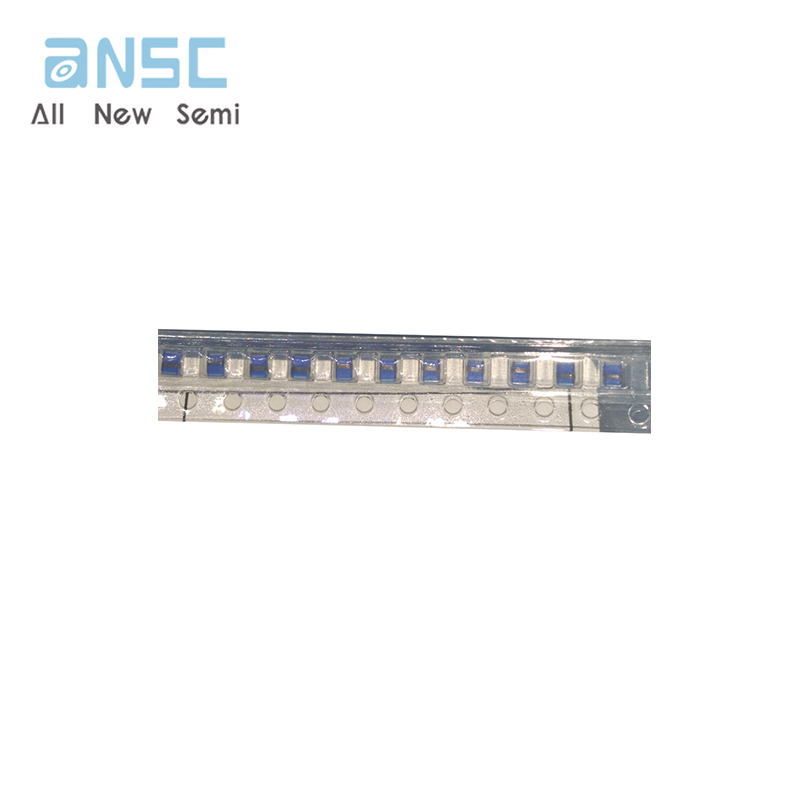

Actual image of the product

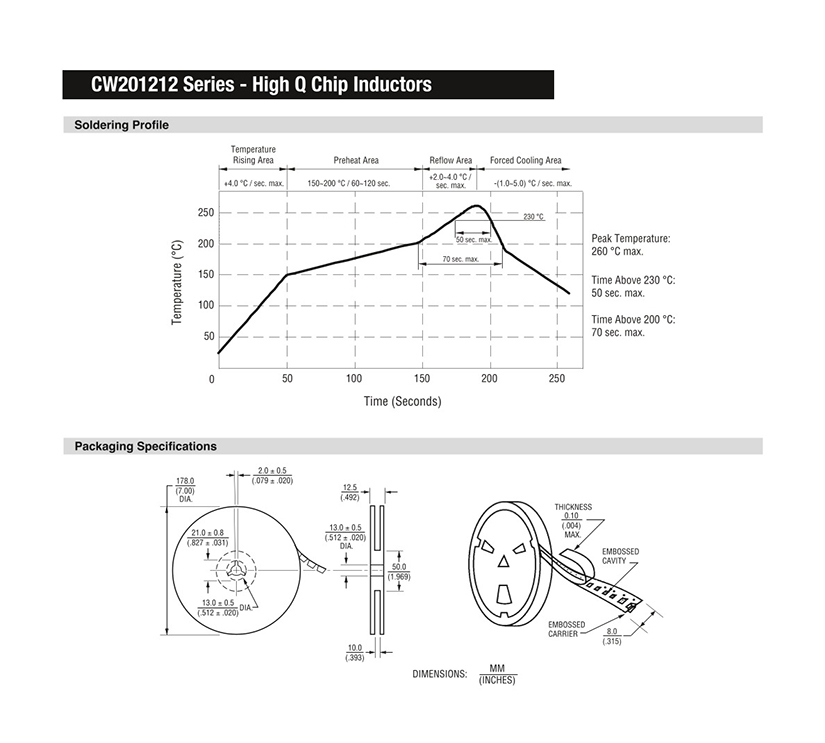

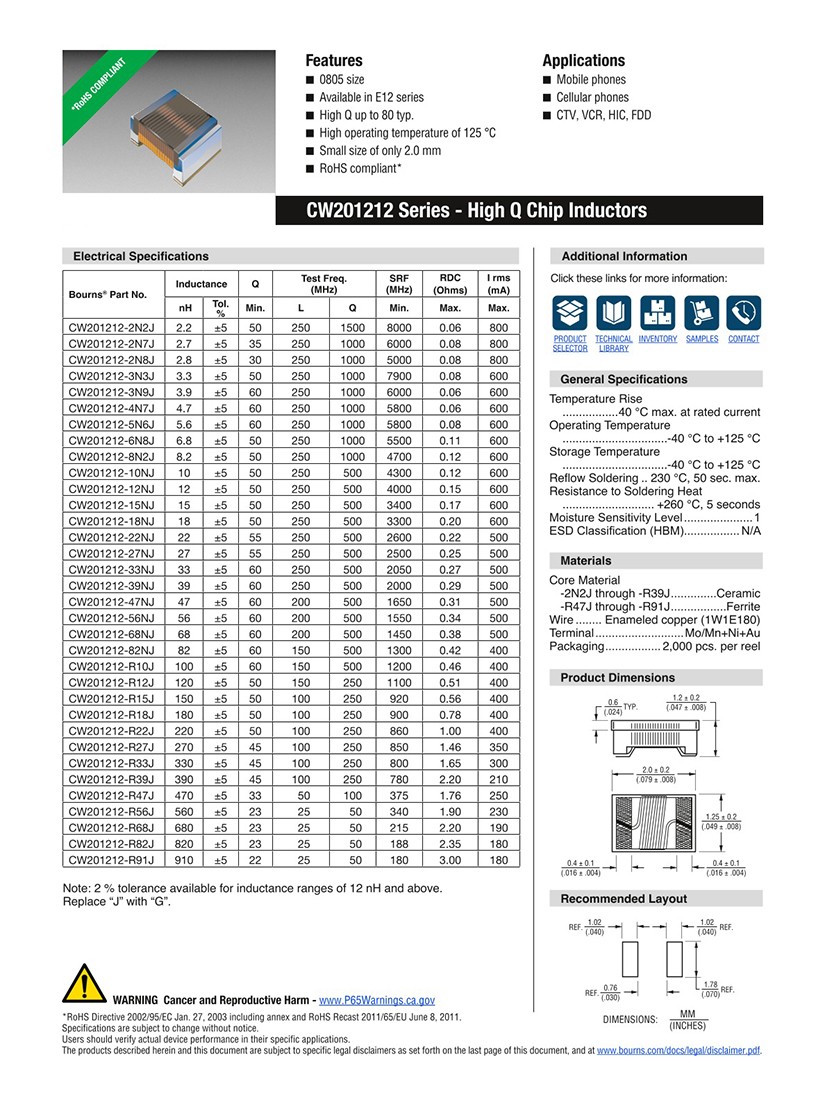

Product datasheet
