Hot sale Original PM0805-R12K-RC Fixed Inductor FIXED IND 120NH 400MA 480MOHM 0805 SM Unshielded Drum Core Wirewound Inductor
Manufacturer Product Number
PM0805-R12K-RC
Description
Original PM0805-R12K-RC Fixed Inductor FIXED IND 120NH 400MA 480MOHM 0805 SM Unshielded Drum Core Wirewound Inductor
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 1. Description The PM0805-R12K-RC is a surface-mount, fixed inductor designed. This component is part of the PM0805 series and features a compact rectangular package with dimensions of 2.10mm x 1.50mm. It is constructed using an alumina core and is lead-free, making it compliant with ROHS3 standards. The inductor is suitable for various applications requiring high-frequency performance and is particularly useful in RF circuits. 2. Features Inductance: 120nH Current Rating: 400mA DC DC Resistance (DCR): 480mOhm Frequency-Self-Resonant: 1.1GHz Operating Temperature Range: -40°C to 125°C Mounting Type: Surface Mount with Dual Ended Terminals Terminal Finish: Gold (Au) with Nickel (Ni) barrier Tolerance: ±10% Q Factor: 45 at 250MHz 3. Applications Primary Applications: RF Inductors: The PM0805-R12K-RC is ideal for use in RF circuits where high-frequency performance is crucial. It can be used in various RF applications such as filters, matching networks, and resonant circuits. Wireless Communication Devices: Its compact size and high Q factor make it suitable for use in wireless communication devices like smartphones, tablets, and laptops. Secondary Applications: Audio Equipment: The inductor's high-frequency response makes it useful in audio equipment such as amplifiers and filters. Medical Devices: Its reliability and stability under various operating conditions make it suitable for medical devices requiring precise signal processing. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -PM0805-R12K-RC |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | Original |
| Series | PM0805 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Alumina |
| Inductance | 120 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 480mOhm |
| Q @ Freq | 50 @ 250MHz |
| Frequency - Self Resonant | 1.1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | PM0805 |

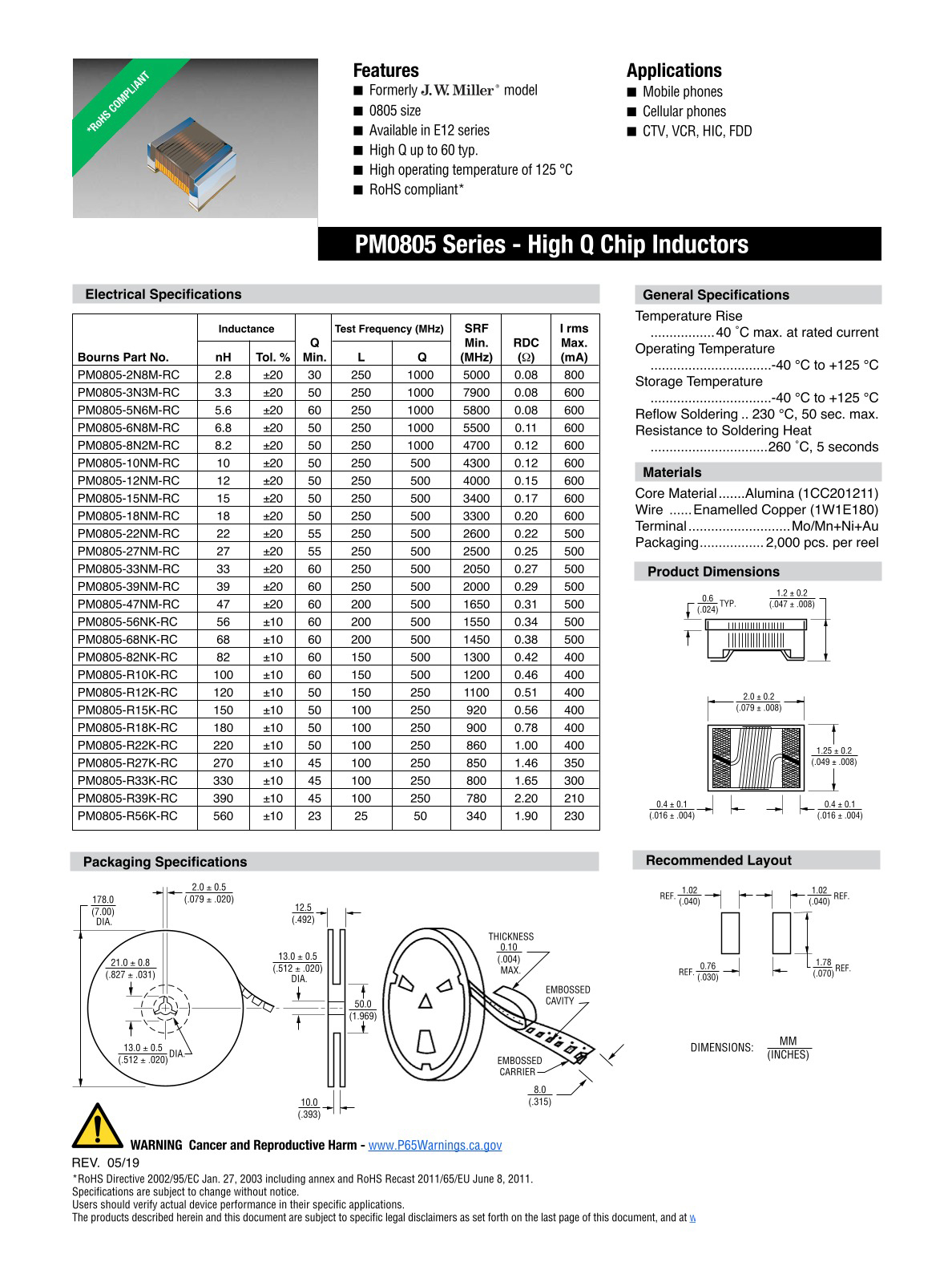

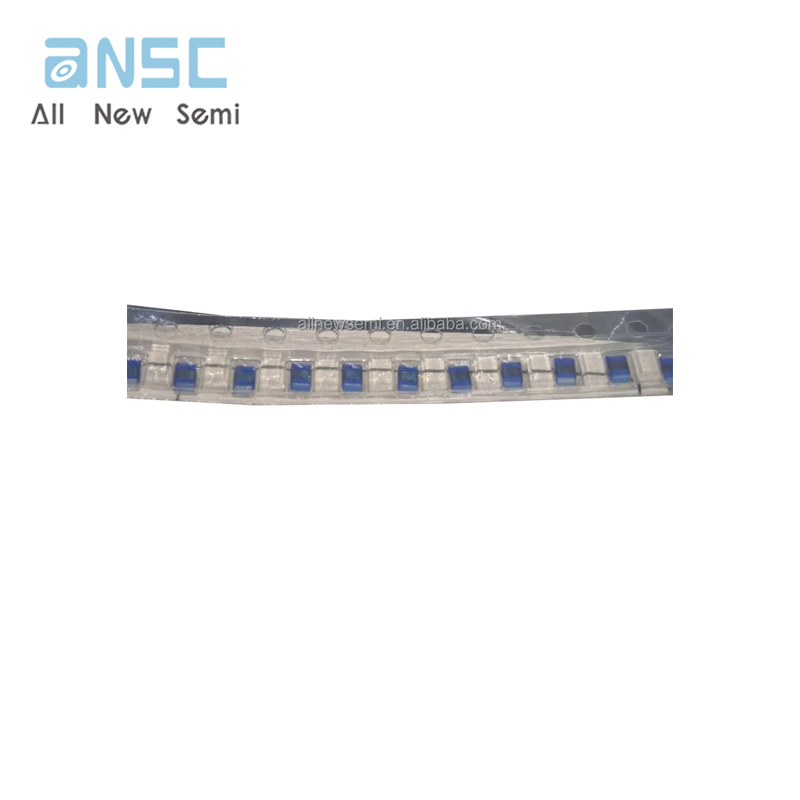

Actual image of the product
