Hot sale original CDRH124NP-220MC Inductors 22µH Shielded Inductor 2.9 A 66mOhm Max Nonstandard
Manufacturer Product Number
CDRH124NP-220MC
Description
CDRH124NP-220MC Inductors FIXED IND 22UH 2.9A 66 MOHM SMD
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description • Ferrite drum core construction. • Magnetically shielded. • L×W×H: 12.3×12.3×4.5 mm Max. • Product weight: 2.3g(Ref.) • Moisture Sensitivity Level: 1 • RoHS compliance. • Halogen Free available. Applications • Ideally used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as DC-DC converter inductors. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-CDRH124NP-220MC |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | / |
| Series | CDRH124 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.9 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 66mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.177" (4.50mm) |

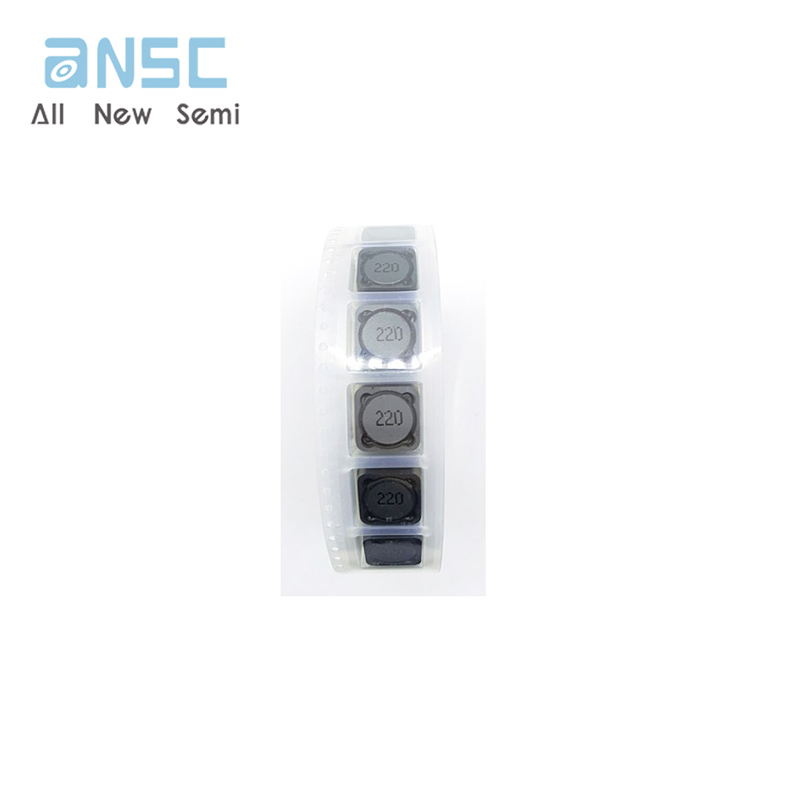

Actual image of the product

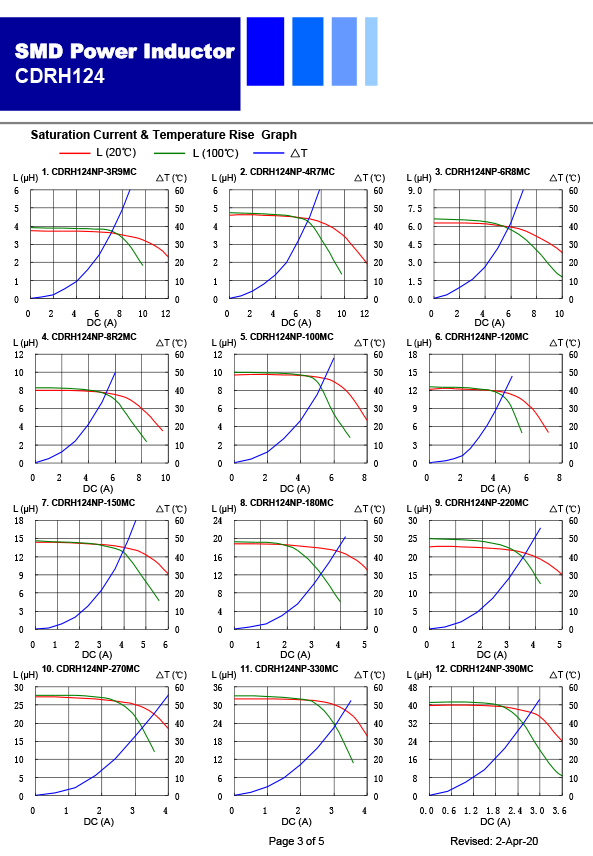

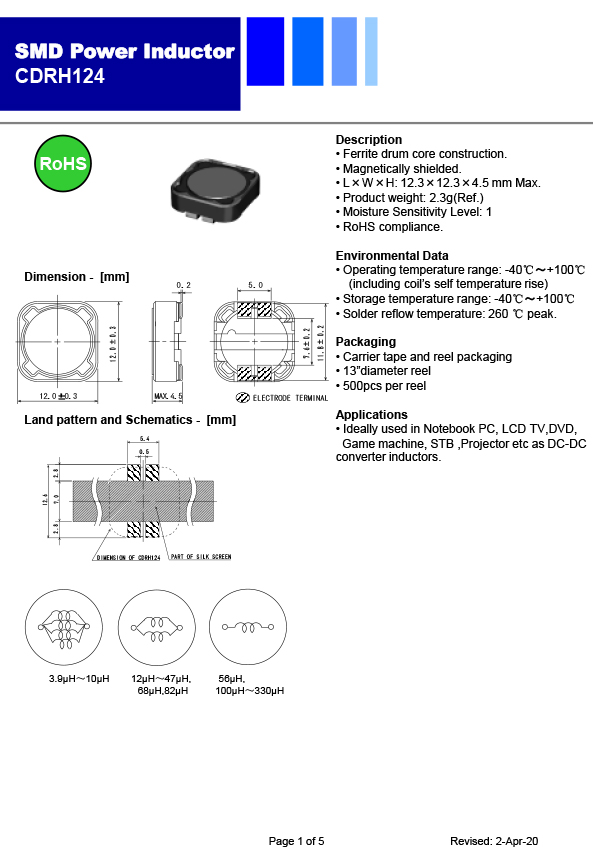

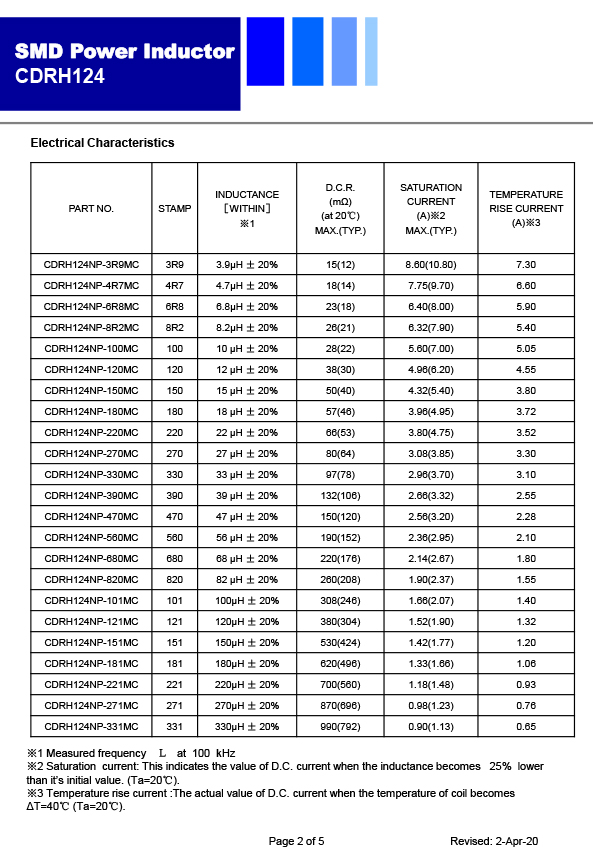

Product datasheet
For more information, please download
