Hot sale original electronics SDR1806-101KL FIXED IND 100UH 1.7A 190MOHM SMD 100 µH Unshielded Drum Core

Manufacturer Product Number
SDR1806-101KL
Description

FIXED IND 100UH 1.7A 190MOHM SMD 100 µH Unshielded Drum Core, Wirewound Inductor 1.7 A 190mOhm Max Nonstandard

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

FEATURES:
• Ultra Fast Recovery: 50-80 ns Max @ 25°C 4/ 80-130 ns Max @ 100°C 4/
• Single Chip Construction
• PIV to 1200 Volts
• Low Reverse Leakage Current
• Hermetically Sealed
• For High Efficiency Applications
• Metallurgically Bonded
• TX, TXV, and S-Level Screening Available
• Available in Surface Mount (SM) and Square Tab Surface Mount (SMS) Versions (Ref. RU0003)
• Hyper Fast Version available (Ref. RH0119)

Product Description

Type Description
ANSC PART# ANSC -SDR1806-101KL
Category Inductors, Coils, Chokes
Fixed Inductors
Mfr Original
Series SDR1806
Packaging Tape & Reel (TR)
Cut Tape (CT)
/
Part Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 1.7 A
Current - Saturation (Isat) 3.2A
Shielding Unshielded
DC Resistance (DCR) 190mOhm Max
Q @ Freq 25 @ 796kHz
Frequency - Self Resonant 7MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max) 0.272" (6.90mm)
Base Product Number SDR1806

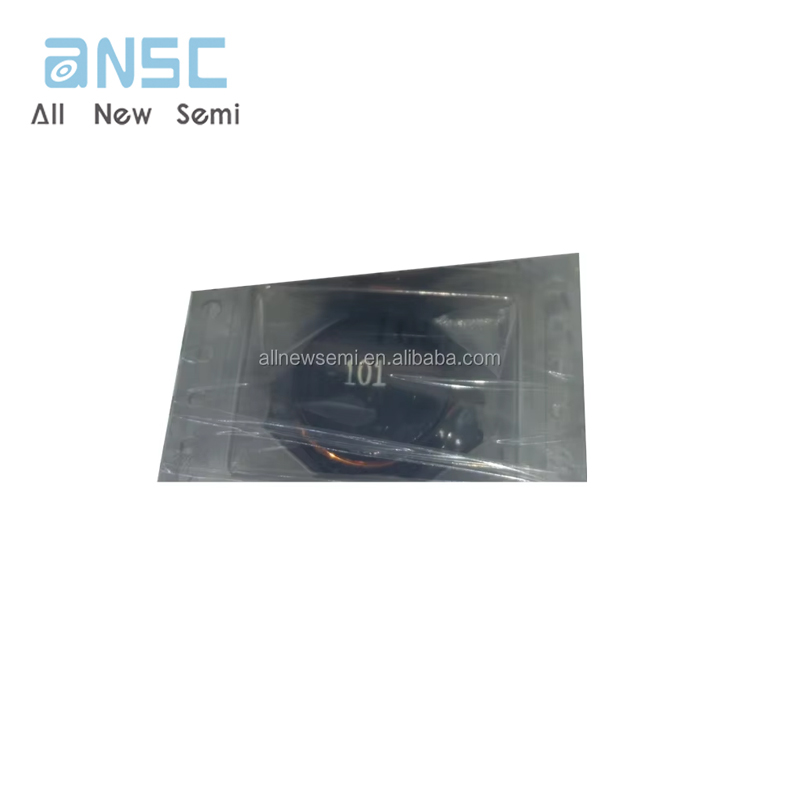

Actual image of the product

SDR1806-101KL

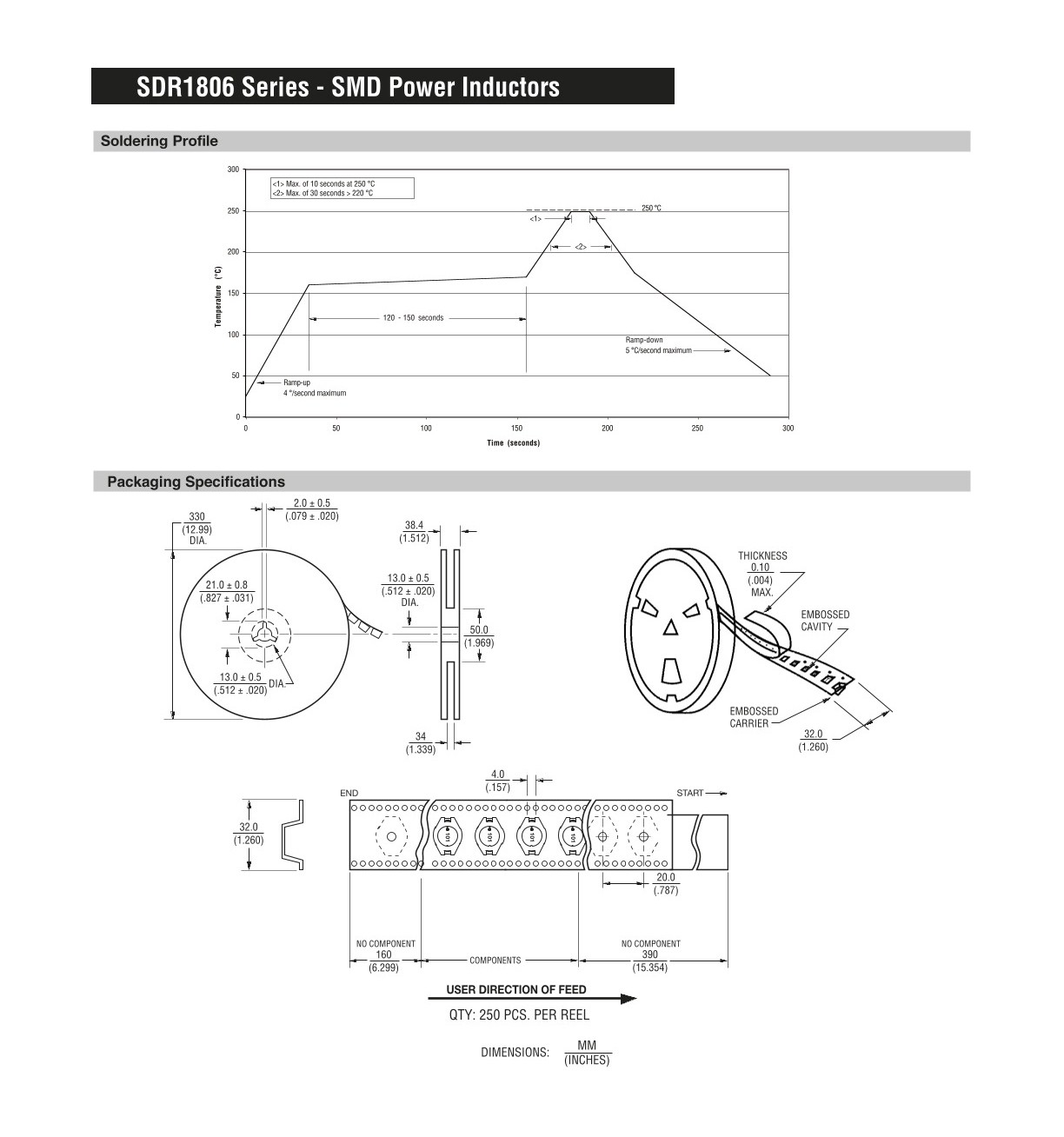

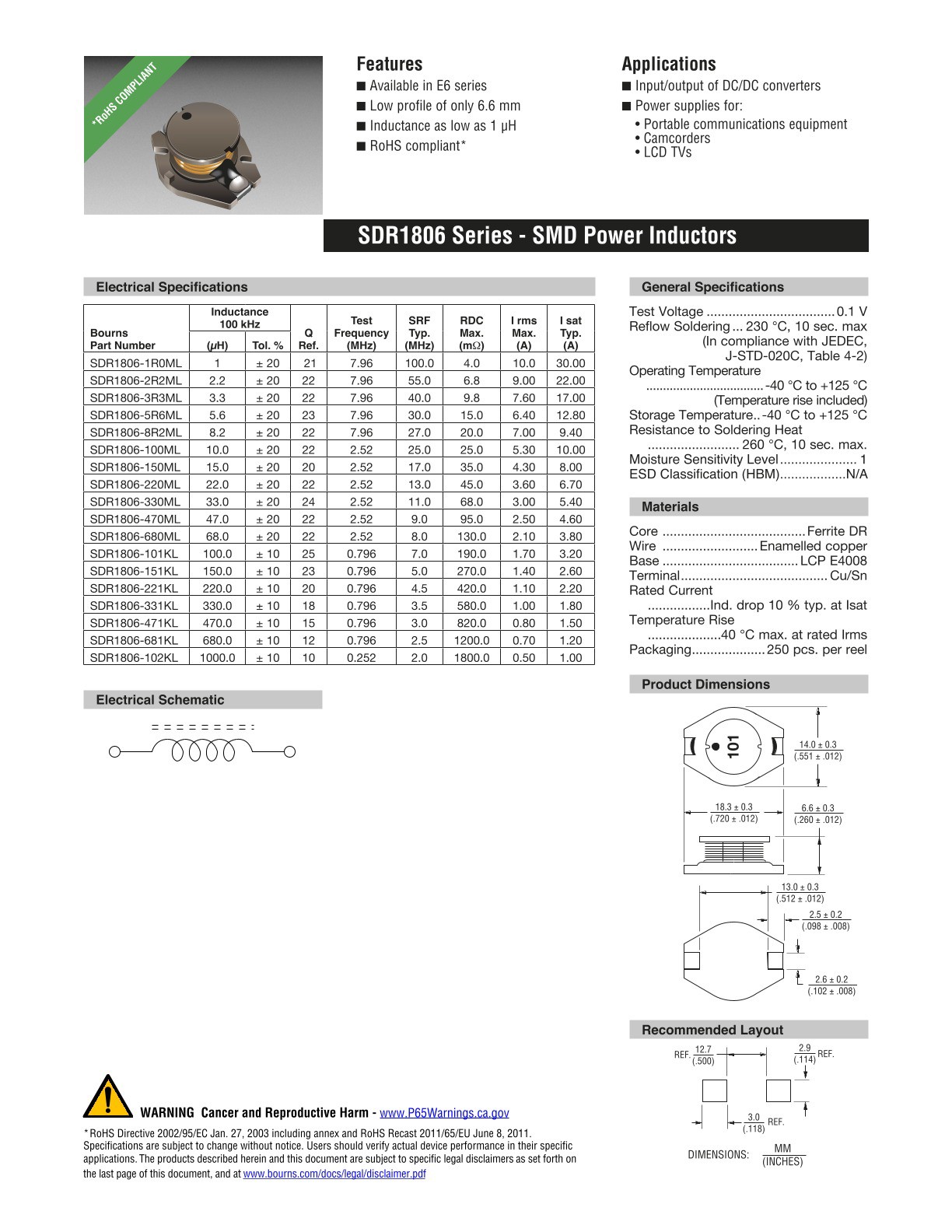

Product datasheet

For more information, please download
