Hot-selling and scarce MSS1038-103NLC Shielded Power Inductors SMD spot stock
Manufacturer Product Number
MSS1038-103NLC
Description
MSS1038-103NLC Shielded Power Inductors SMD spot stock
Package Condition
Strip
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• 10.0 × 10.2 mm footprint;3.8 mm high shielded inductors
• Very low DCR and excellent current handling
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MSS1038-103NLC |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | MSS1038 |
| Packaging | Strip |
| Part Status | Active |
| Type | Drum Core |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 4.05 A |
| Current - Saturation (Isat) | 3.04A |
| Shielding | Shielded |
| DC Resistance (DCR) | 35mOhm Max |
| Frequency - Self Resonant | 29MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.402" L x 0.394" W (10.20mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |

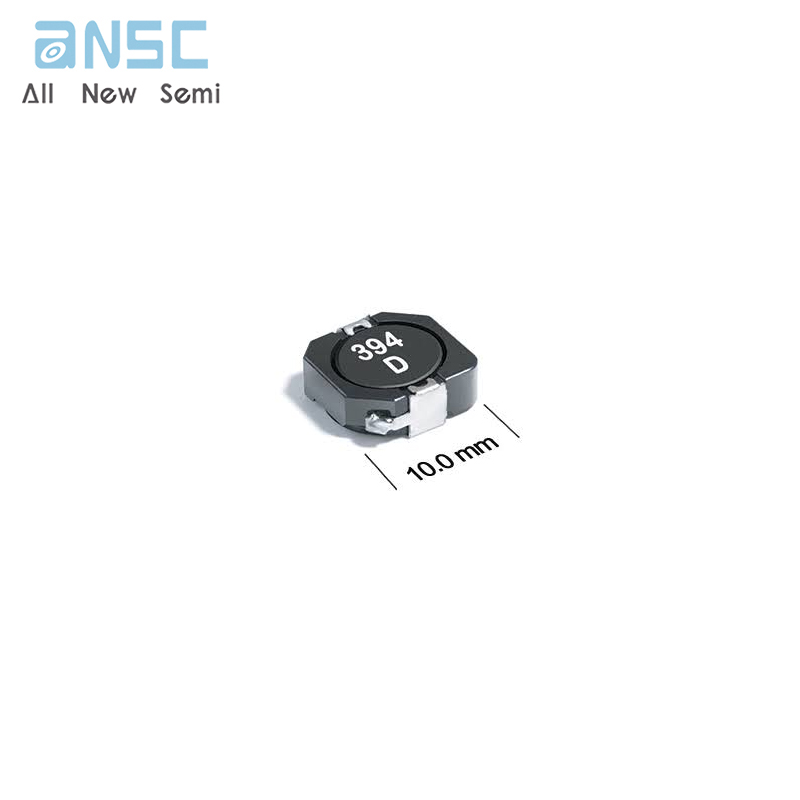

Product Photos
For more product information, please download the PDF
