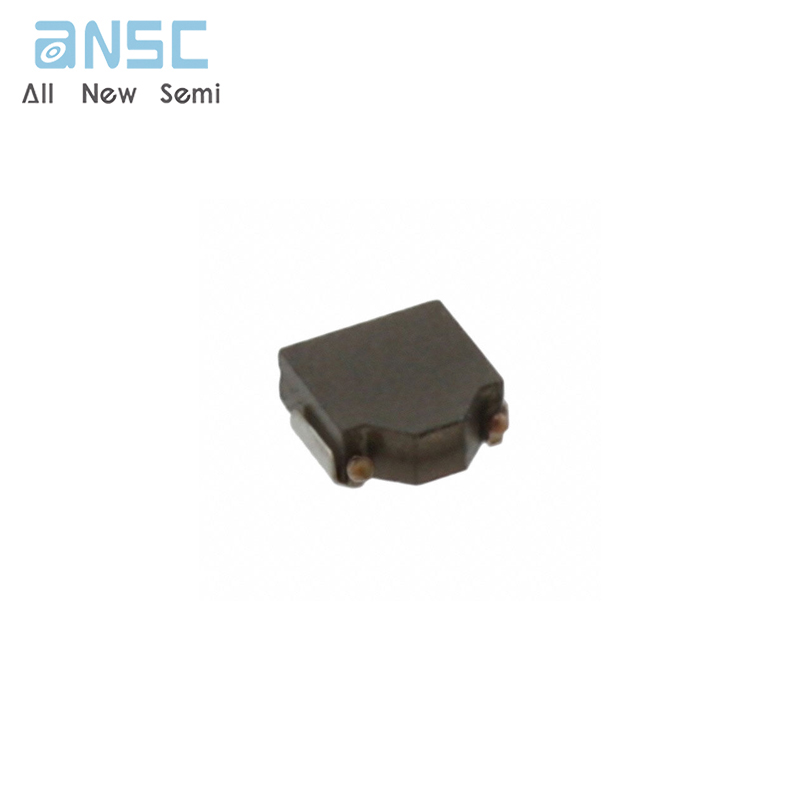

Hot-selling and scarce SPM3015T-2R2M-LR Inductors for Power Circuits Wound Metal SMD spot stock
Manufacturer Product Number
SPM3015T-2R2M-LR
Description
SPM3015T-2R2M-LR Inductors for Power Circuits Wound Metal SMD spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
◯Magnetic shield type wound inductor for power circuits using a metallic magnetic material.
◯Low-profile product.
◯Compared to ferrite wound type inductors, it is possible to achieve large current, low Rdc, and compactness.
◯Low inductance variance in high-temperature environments with good DC superimposition characteristics.
◯Metallic magnetic material is used, and the structure has an integrated molded coil, so hum noise is lower than with core adhesive coils.
◯Operating temperature range: -40 to +125C(including self-heating)
Product Applications
◯Tablet terminals, note PCs, HDDs, servers, VRMs, compact power supply modules, other
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SPM3015T-2R2M-LR |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | SPM-LR |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.8 A |
| Current - Saturation (Isat) | 4A |
| Shielding | Shielded |
| DC Resistance (DCR) | 86.6mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.126" L x 0.118" W (3.20mm x 3.00mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
Product Photos
For more product information, please download the PDF
