BOM distribution service electronic components 125CDMCCDS-470MC SMD Power Inductor

Product Details

Description: The 125CDMCCDS-470MC is a high-performance, shielded fixed inductor designed. This inductor is part of the 125CDMCC/DS series and is engineered to provide reliable performance in a variety of electronic applications. With its metal core and molded type construction, it offers excellent thermal stability and durability.

Features: - Current Rating: The inductor has a current saturation rating of 6.3A and an operational current rating of 4.5A, making it suitable for applications requiring moderate to high current handling. - DC Resistance: The maximum DC resistance (DCR) is 97.2mOhm, ensuring efficient energy transfer and minimal power loss. - Inductance: The inductor features an inductance value of 47μH, which is ideal for applications requiring specific inductive properties. - Operating Temperature Range: The inductor operates within a wide temperature range of -55°C to 125°C, making it suitable for use in harsh environments. - Mounting Type: It is designed for surface mount applications, facilitating easy integration into modern PCBs. - Shielding: The inductor is shielded to reduce electromagnetic interference (EMI), ensuring clean signal transmission and minimizing noise. - RoHS Compliance: The product is RoHS compliant, adhering to environmental regulations by minimizing the use of hazardous substances.

Applications: 1. Primary Applications: - Power Supplies: The 125CDMCCDS-470MC is well-suited for use in power supply filters due to its high inductance and moderate current handling capabilities. - Switching Regulators: Its ability to handle moderate currents and high inductance makes it an excellent choice for switching regulator circuits. - Audio Equipment: The shielded design helps reduce EMI, making it suitable for audio equipment applications where signal integrity is crucial.

1. Secondary Applications:

2. Motor Drivers: The inductor's high inductance value can be utilized in motor driver circuits to improve efficiency and stability.

3. Filter Circuits: It can be used in various filter circuits such as low-pass filters or high-pass filters where specific inductive properties are required.

Product Description

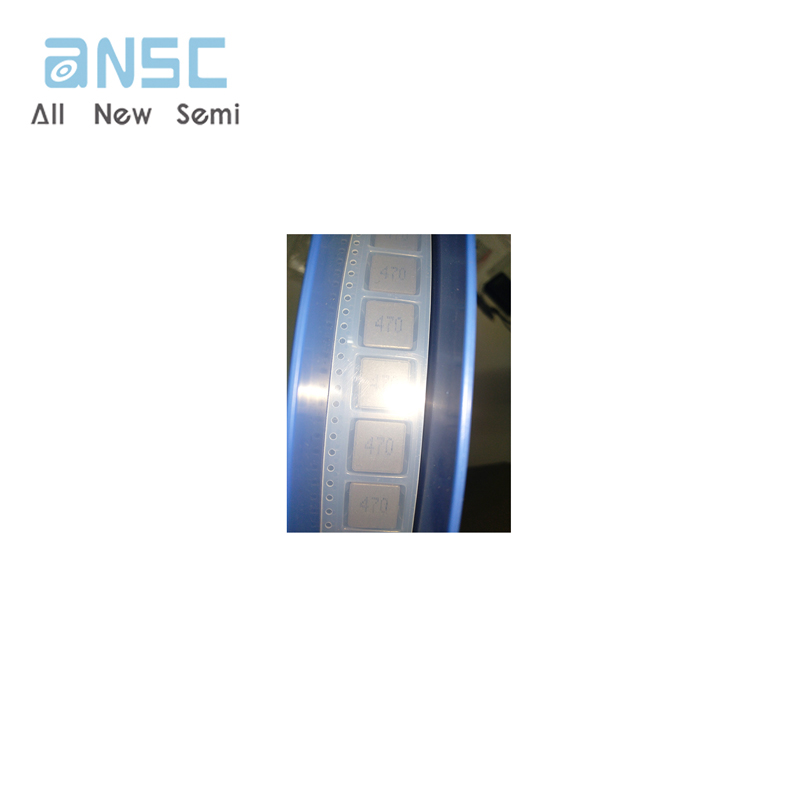

Actual image of the product

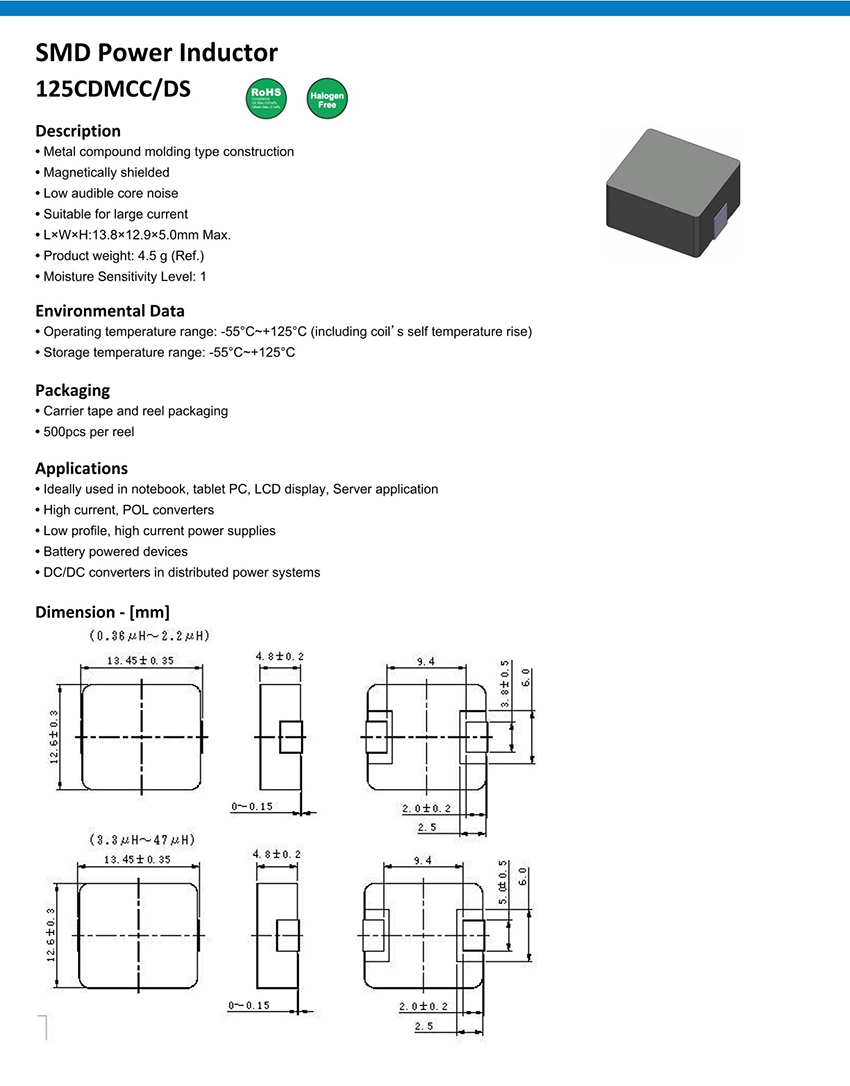

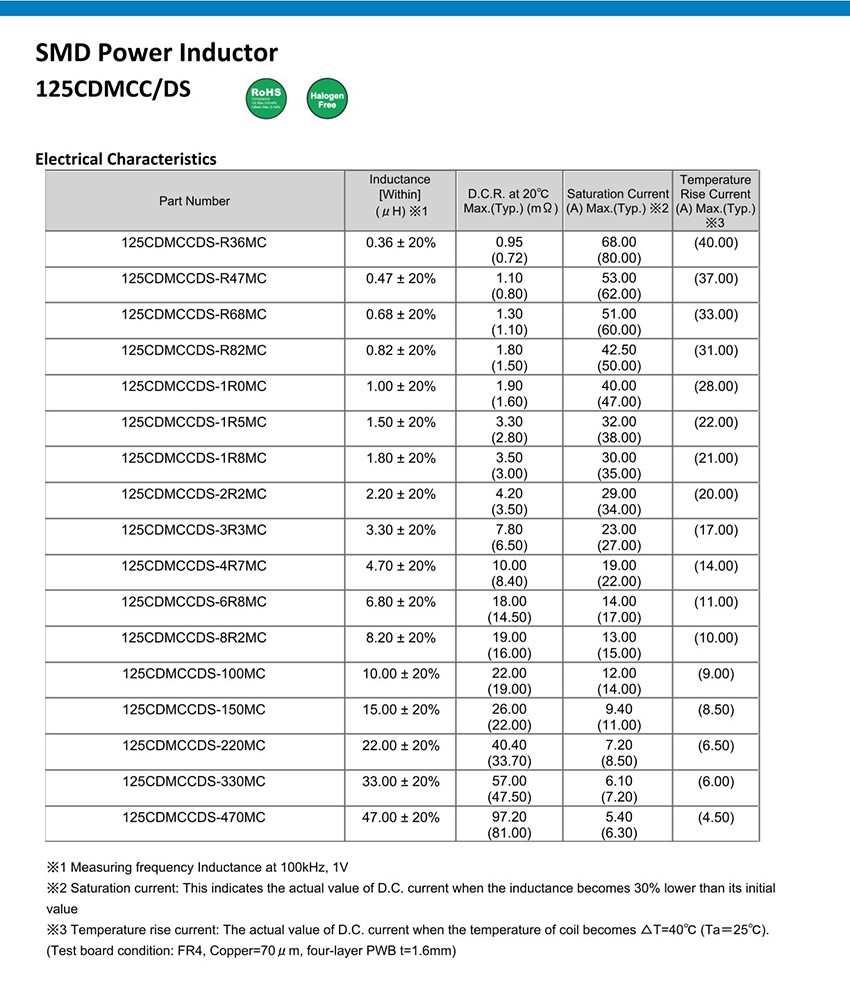

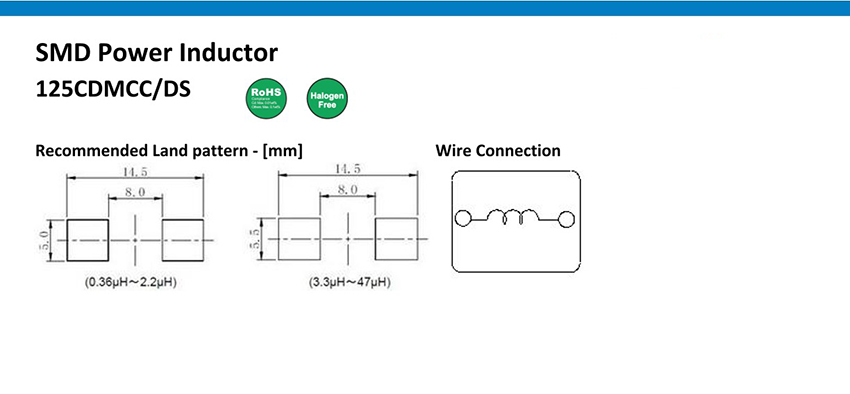

Product datasheet

For more information, please download
