BOM distribution service electronic components High Temperature Shielded Power Inductors XAL1010-103MEB
Manufacturer Product Number
XAL1010-103MEB
Description
XAL1010-103MEB General Purpose Inductor 10uH 20% 1 Element Composite-Core SMD 3945 CHIP
Package Condition
original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Shielded Power Inductors – XAL1010 • High current – up to 98.8 A; very low DCR – 0.45 mOhms • AEC-Q200 Grade 1 qualifed (–40°C to +125°C ambient) • Soft saturation makes them ideal for VRM/VRD applications. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- XAL1010-103MEB |
| Ihs Manufacturer | / |
| Package Description | CHIP |
| Samacsys Manufacturer | / |
| Case/Size Code | 4539 |
| Construction | Rectangular |
| Core Material | COMPOSITE |
| DC Resistance | 0.01475 Ω |
| Inductance-Nom (L) | 10 µH |
| Inductor Application | POWER INDUCTOR |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Package Height | 10 mm |
| Package Length | 11.3 mm |
| Package Style | SMT |
| Package Width | 10 mm |
| Packing Method | TR |
| Rated Current-Max | 15.5 A |
| Reference Standard | AEC-Q200 |
| Self Resonance Frequency | 11 MHz |
| Shape/Size Description | RECTANGULAR PACKAGE |
| Shielded | YES |
| Surface Mount | YES |
| Terminal Finish | Tin/Silver (Sn96.5Ag3.5) |
| Terminal Placement | DUAL ENDED |
| Terminal Shape | ONE SURFACE |
| Test Frequency | 1 MHz |
| Tolerance | 20% |

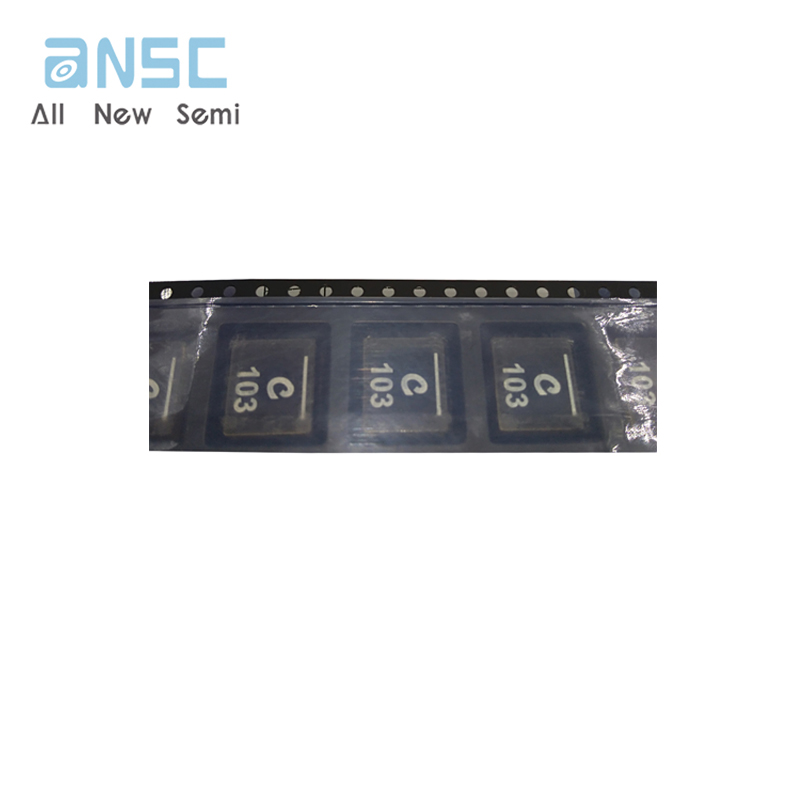

Actual image of the product

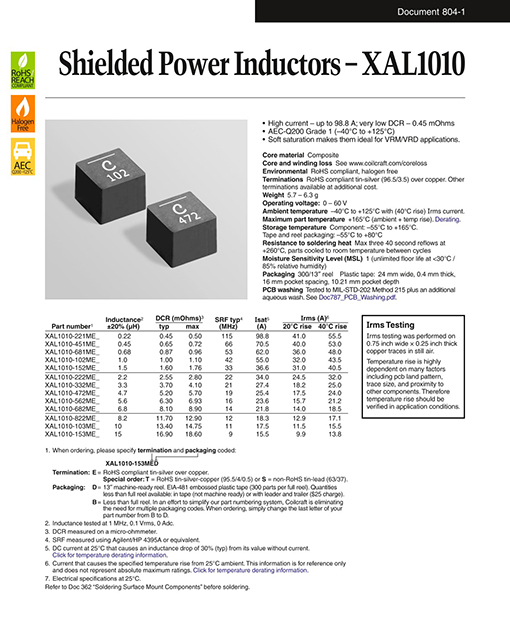

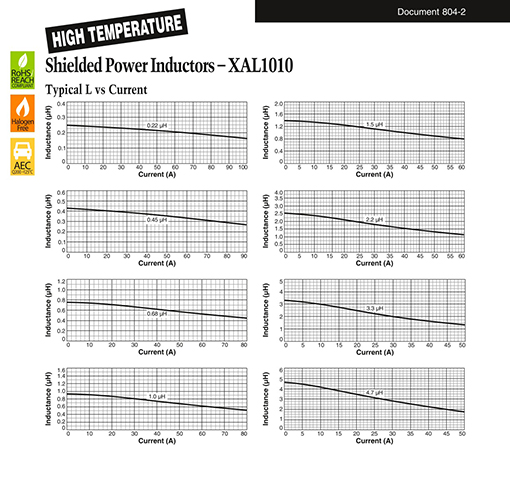

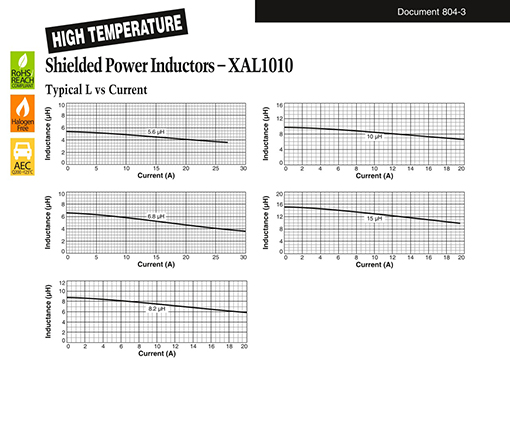

Product datasheet
For more information, please download
