Hot sale original LT1161ISW IC GATE DRVR HIGH-SIDE 20SOIC High-Side Gate Driver IC Non-Inverting 20-SO

Manufacturer Product Number
LT1161ISW
Description

LT1161ISW IC GATE DRVR HIGH-SIDE 20SOIC High-Side Gate Driver IC Non-Inverting 20-SO

Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

DESCRIPTION

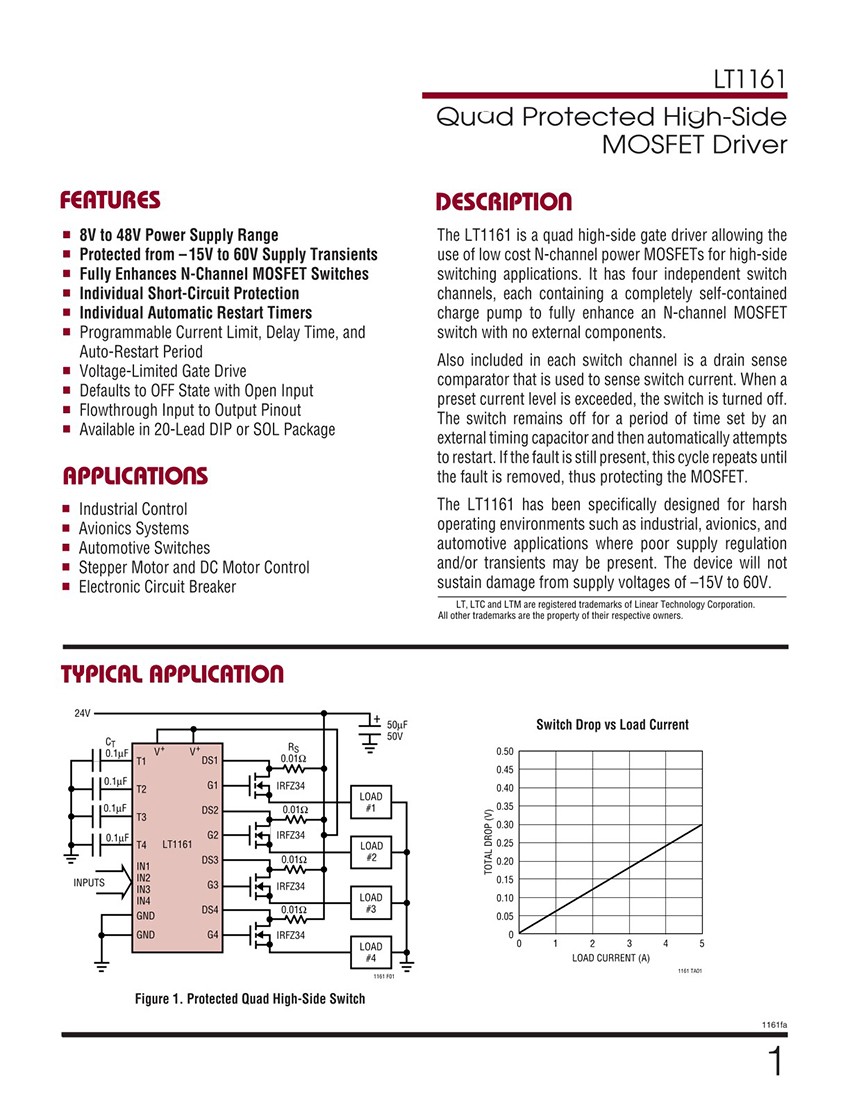

The LT1161 is a quad high-side gate driver allowing the use of low cost N-channel power MOSFETs for high-side switching applications. It has four independent switch channels, each containing a completely self-contained charge pump to fully enhance an N-channel MOSFET switch with no external components.

FEATURES
■ 8V to 48V Power Supply Range
■ Protected from –15V to 60V Supply Transients
■ Fully Enhances N-Channel MOSFET Switches
■ Individual Short-Circuit Protection
■ Individual Automatic Restart Timers
■ Programmable Current Limit, Delay Time, and
Auto-Restart Period
■ Voltage-Limited Gate Drive
■ Defaults to OFF State with Open Input
■ Flowthrough Input to Output Pinout

■ Available in 20-Lead DIP or SOL Package

APPLICATIONS
■ Industrial Control
■ Avionics Systems
■ Automotive Switches
■ Stepper Motor and DC Motor Control
■ Electronic Circuit Breaker

Product Description

Type Description
ANSC PART# ANSC - LT1161ISW
Category Integrated Circuits (ICs)
Power Management (PMIC)
Gate Drivers
Manufacturer Original
Series -
Packaging Tube
Part Status Obsolete
DigiKey Programmable Not Verified
Driven Configuration High-Side
Channel Type Independent
Number of Drivers 4
Gate Type MOSFET (N-Channel)
Voltage - Supply 8V ~ 48V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) -
Input Type Non-Inverting
Rise / Fall Time (Typ) -
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SO
Base Product Number LT1161

Product Photos

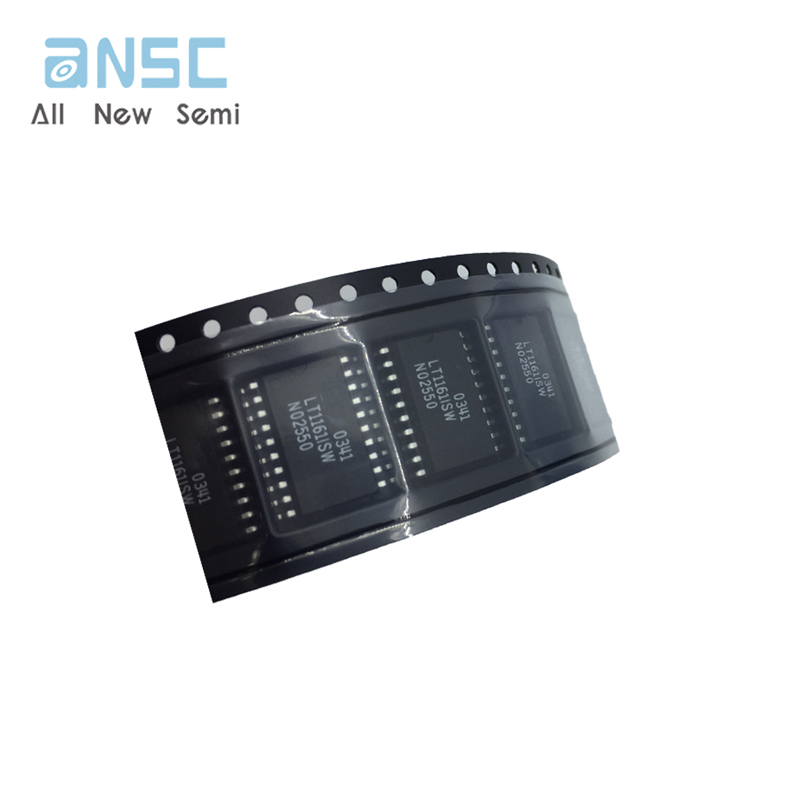

LT1161ISW
