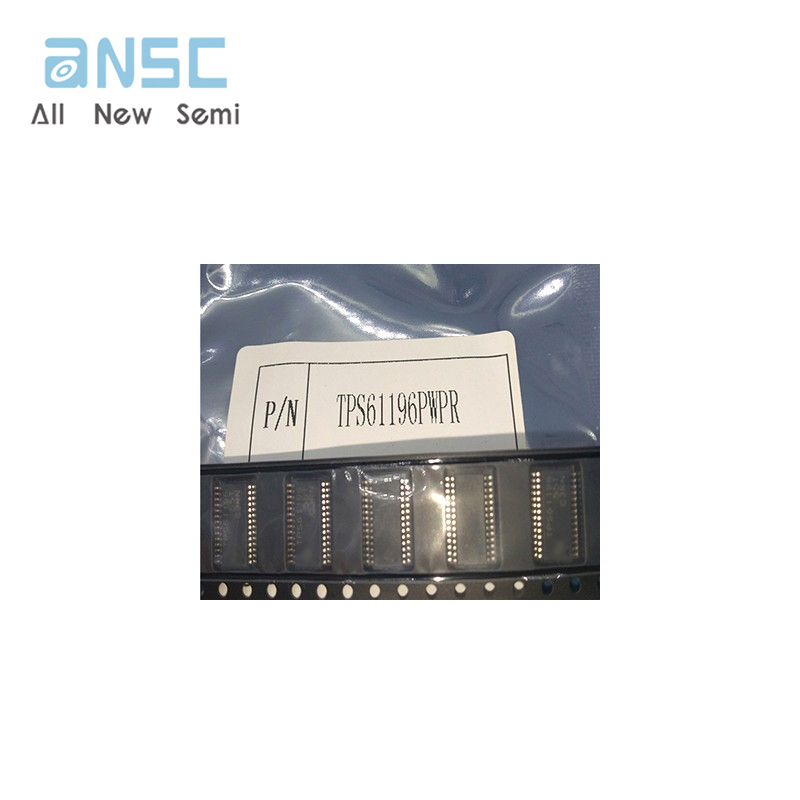

Hot sale Original TPS61196PWPR LED Driver IC 6 Output DC DC Controller Step-Up (Boost) PWM Dimming 400mA

Product Description:

The TPS61196PWPR is a high-performance, surface-mount, step-up (boost) DC-DC controller , designed specifically for backlight applications. This 28-pin PowerTSSOP package is RoHS3 compliant and features a lead-free construction. The device operates within a temperature range of -40°C to 85°C and is suitable for use in a variety of applications, including backlighting for displays.

Features:

High-frequency operation at 800 kHz
Step-up (boost) topology for efficient power conversion
Six outputs with a maximum current per channel of 400mA
Quiescent current of 1.5mA
Supply voltage range of 8V to 30V
Operating temperature range of -40°C to 85°C
Surface-mount package with a compact size of 9.7mm x 1.2mm x 1mm
Nickel/Palladium/Gold (Ni/Pd/Au) terminal finish for reliable connections
Applications:

Backlighting for displays, such as LCD and OLED screens
Powering LED arrays for general lighting applications
Boosting low-voltage supplies to higher voltage levels
