Hot sale Original CD4040BCN IC BINARY COUNTER 12-BIT 16DIP Counter IC Binary Counter 1 Element 12 Bit Negative Edge 16-PDIP

Manufacturer Product Number
CD4040BCN
Description

CD4040BCN IC BINARY COUNTER 12-BIT 16DIP Counter IC Binary Counter 1 Element 12 Bit Negative Edge 16-PDIP

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

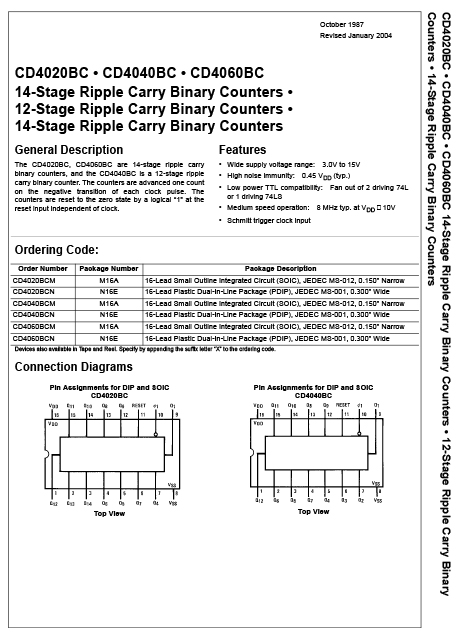

General Description
The CD4020BC, CD4060BC are 14-stage ripple carry binary counters, and the CD4040BC is a 12-stage ripple carry binary counter. The counters are advanced one count on the negative transition of each clock pulse. The counters are reset to the zero state by a logical “1” at the reset input independent of clock.
Features
■ Wide supply voltage range: 1.0V to 15V
■ High noise immunity: 0.45 VDD (typ.)
■ Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS
■ Medium speed operation: 8 MHz typ. at VDD = 10V
■ Schmitt trigger clock input

Product Description

Type Description
ANSC PART# ANSC- CD4040BCN
Category Integrated Circuits (ICs)
Logic
Counters, Dividers
Manufacturer Original
Series 4000B
Packaging Tube
Part Status Obsolete
Logic Type Binary Counter
Direction Up
Number of Elements 1
Number of Bits per Element 12
Reset Asynchronous
Timing -
Count Rate 12 MHz
Trigger Type Negative Edge
Voltage - Supply 3 V ~ 15 V
Operating Temperature -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Base Product Number CD4040

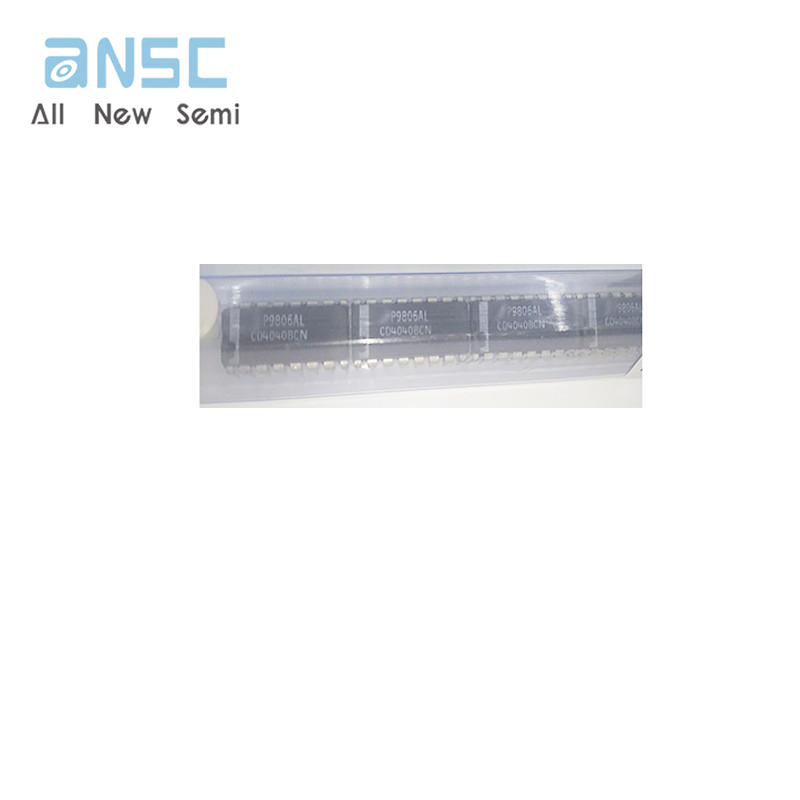

Product Photos

CD4040BCN

Product datasheet

For more information, please download
