Hot sale Original SY8113ADC High efficiency 500kHz 3A 18V input synchronous buck regulator

Product Overview

The SY8113 is a high-efficiency 500 kHz synchronous step-down DC-DC converter capable of delivering 3A. The SY8113 has a wide input voltage range of 4.5V to 18V and integrates a main and synchronous switch with very low on-resistance RDS(ON) to minimize conduction losses. The 500 kHz switching frequency enables low output voltage ripple and reduces the size of external inductors and capacitors. It features an instant PWM architecture for fast transient response in high-step-down applications.

Product Features

• Low RDS(ON) for internal switch (up/down): 80 mΩ/40 mΩ

• 4.5 - 18V input voltage range

• 3A output current capability

• 500 kHz switching frequency

• Instant PWM architecture for fast transient response

• Internal soft-start limits inrush current

• ± 1.5% of the 0.6V reference voltage

• TSOT23 - 6 package

Product Applications

• Set-top box

• Portable TV

• Access point routers

• DSL modem

• LCD TV

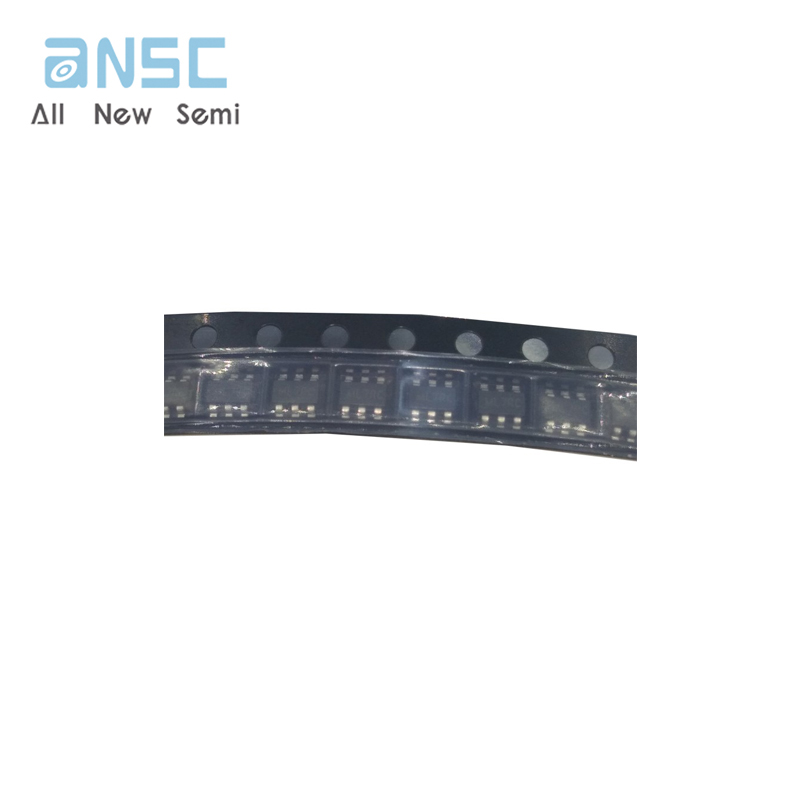

Actual image of the product

 ​
