High quality sales of TBD62083AFWG BiCD Integrated Circuit Silicon Monolithic Power Switch/Driver 1:1 N-Channel 500mA 18-SOP

Product Descriptions

TB62083A series and TB62084A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output. Please be careful about thermal conditions during use.

Product Features

• 8 circuits built-in

• High voltage : VOUT = 50 V (MAX)

• High current : IOUT = 500 mA/ch (MAX)

• Input voltage(output on) : TBD62083A series 2.5 V (MIN)

TBD62084A series 7.0 V (MIN)

• Input voltage(output off) : TBD62083A series 0.6 V (MAX)

TBD62084A series 1.0 V (MAX)

• Package : PG type P-DIP18-300-2.54-001

FG type SOP18-P-375-1.27

FNG type SSOP18-P-225-0.65

 FWG type P-SOP18-0812-1.27-001

Specifications

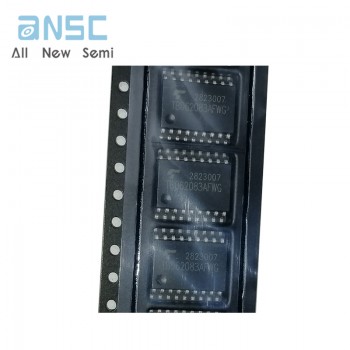

Actual product photos
