Hot sale Original ADP2107ACPZ-R7 IC 16LFCSP Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 16-WQFN Exposed Pad
Manufacturer Product Number
ADP2107ACPZ-R7
Description
ADP2107ACPZ-R7 IC REG BUCK ADJ 2A 16LFCSP Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 16-WQFN Exposed Pad, CSP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The ADP2105/ADP2106/ADP2107 are low quiescent current, synchronous, step-down dc-to-dc converters in a compact 4 mm × 4 mm LFCSP_VQ package. At medium-to-high load currents, these devices use a current-mode, constant-frequency pulse width modulation (PWM) control scheme for excellent stability and transient response. To ensure the longest battery life in portable applications, the ADP2105/ADP2106/ADP2107 use a pulse frequency modulation (PFM) control scheme under light load conditions that reduces switching frequency to save power. FEATURESExtremely high 97 efficiency Ultralow quiescent current: 20 μA 1.2 MHz switching frequency 0.1 μA shutdown supply current Maximum load current: ADP2105: 1 A ADP2106: 1.5 A ADP2107: 2 A Input voltage: 2.7 V to 5.5 V Output voltage: 0.8 V to VIN Maximum duty cycle: 100 Smoothly transitions into low dropout (LDO) mode Internal synchronous rectifier Small 16-lead 4 mm × 4 mm LFCSP_VQ package Optimized for small ceramic output capacitors Enable/Shutdown logic input Undervoltage lockout Soft start APPLICATIONS Mobile handsets PDAs and palmtop computers Telecommunication/Networking equipment Set top boxes Audio/Video consumer electronics |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- ADP2107ACPZ-R7 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 2A |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (4x4) |
| Base Product Number | ADP2107 |

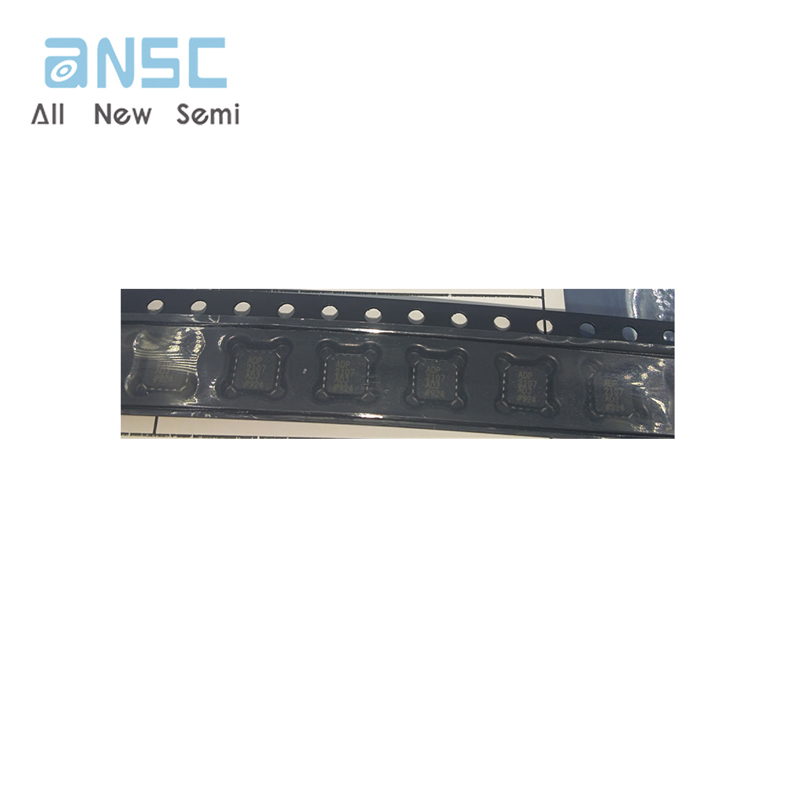

Product Photos

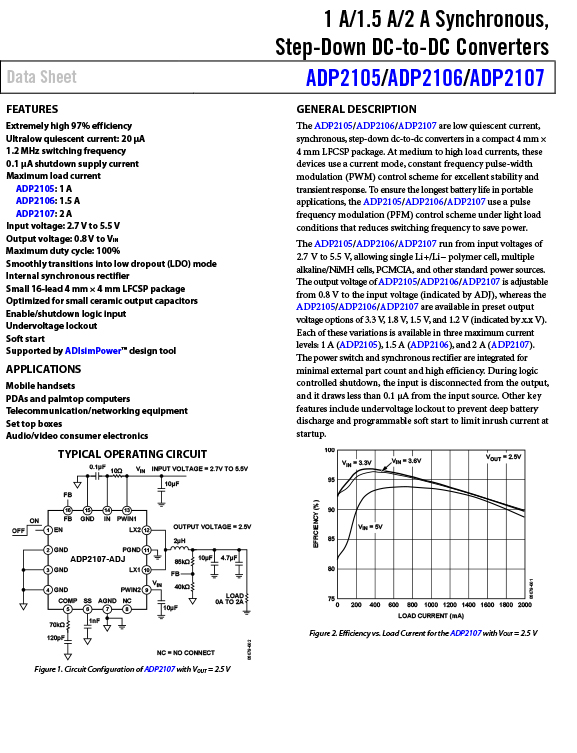

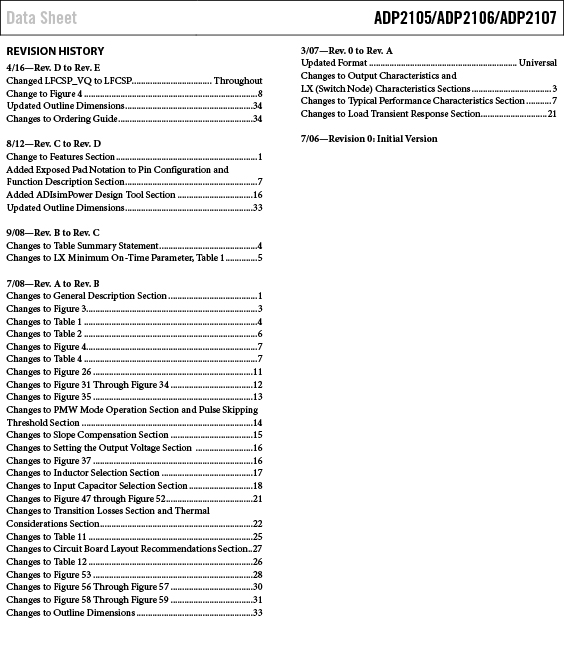

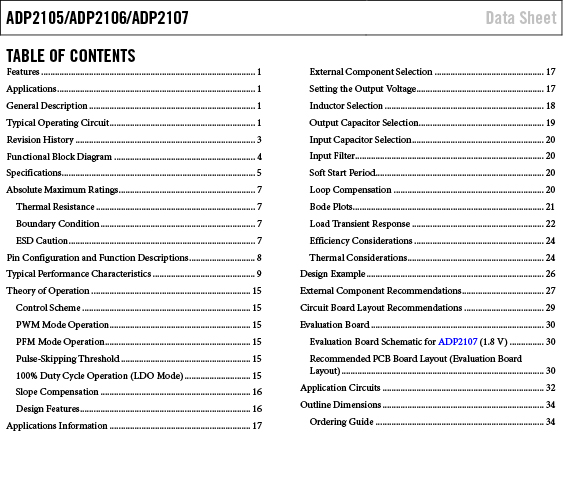

Product datasheet
