Hot-selling and scarce IRU3037CSTRPBF 8-PIN SYNCHRONOUS PWM CONTROLLER spot stock

Product Descriptions

.The IRU3037 controller IC is designed to provide a lowcost synchronous Buck regulator for on-board DC to DCconverter applications.With the migration of today’s ASICproducts requiring low supply voltages such as 1.8V andlower,together with currents in excess of 3A,traditionallinear regulators are simply too lossy to be used wheninput supply is 5V or even in some cases with 3.3Vinput supply.The IRU3037 together with dual N-channelMOSFETs such as IRF7313,provide a low cost solutionfor such applications . This device features an internal200KHz oscillator (400KHz for "A"version),under-voltage lockout for both Vcc and Vc supplies, an externalprogrammable soft-start function as well as output under-voltage detection that latches off the device when anoutput short is detected .

Product Features

Synchronous Controller in 8-Pin Package

Operating with single 5V or 12V supply voltage

Internal 200KHz Oscillator(400KHz for IRU3037A)

Soft-Start Function

Fixed Frequency Voltage Mode

500mA Peak Output Drive Capability

Protects the output when control FET is shorted

SOIC 8-Lead also available LEAD-FREE

Product Applications

DDR memory source sink Vtt application

Low cost on-board DC to DC such as 5V to 3 .3V,2.5V or 1.8V

Graphic Card

Hard Disk Drive

Product Specifications

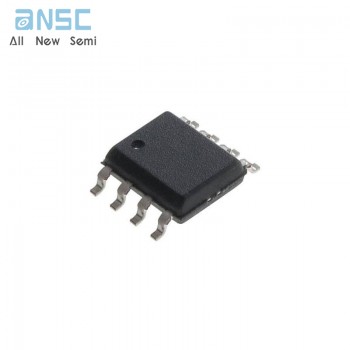

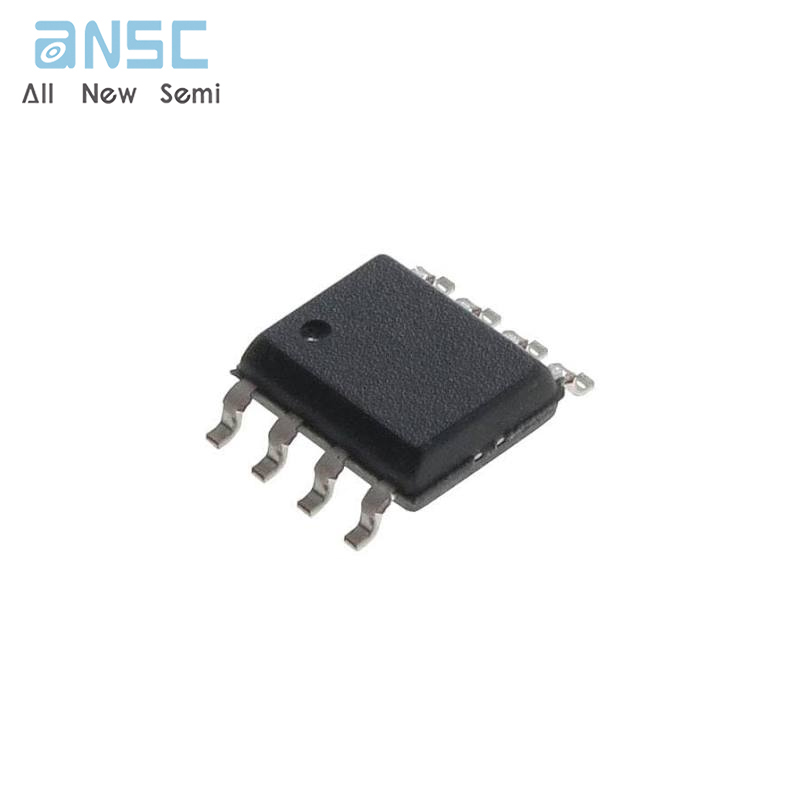

Product Photos

​

For more product information, please download the PDF
