Hot sale Original NCV3020ADR2G IC REG CTRLR BUCK 8SOIC Buck Regulator Positive Output Step-Down
Manufacturer
Manufacturer Product Number
NCV3020ADR2G
Description
NCV3020ADR2G IC REG CTRLR BUCK 8SOIC Buck Regulator Positive Output Step-Down DC-DC Controller IC 8-SOIC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| The NCP3020 is a PWM device designed to operate from a wide input range and is capable of producing an output voltage as low as 0.6 V. The NCP3020 provides integrated gate drivers and an internally set 300 kHz (NCP3020A) or 600 kHz (NCP3020B) oscillator. The NCP3020 also has an externally compensated transconductance error amplifier with an internally fixed soft−start. Protection features include lossless current limit and short circuit protection, output overvoltage protection, output undervoltage protection, and input undervoltage lockout. The NCP3020 is currently available in a SOIC−8 package. Features • Input Voltage Range from 4.7 V to 28 V • 300 kHz Operation (NCP3020B – 600 kHz) • 0.6 V Internal Reference Voltage • Internally Programmed 6.8 ms Soft−Start (NCP3020B – 4.4 ms) • Current Limit and Short Circuit Protection • Transconductance Amplifier with External Compensation • Input Undervoltage Lockout • Output Overvoltage and Undervoltage Detection • NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls • This is a Pb−Free Device |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- NCV3020ADR2G |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.7V ~ 28V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 84% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | NCV3020 |

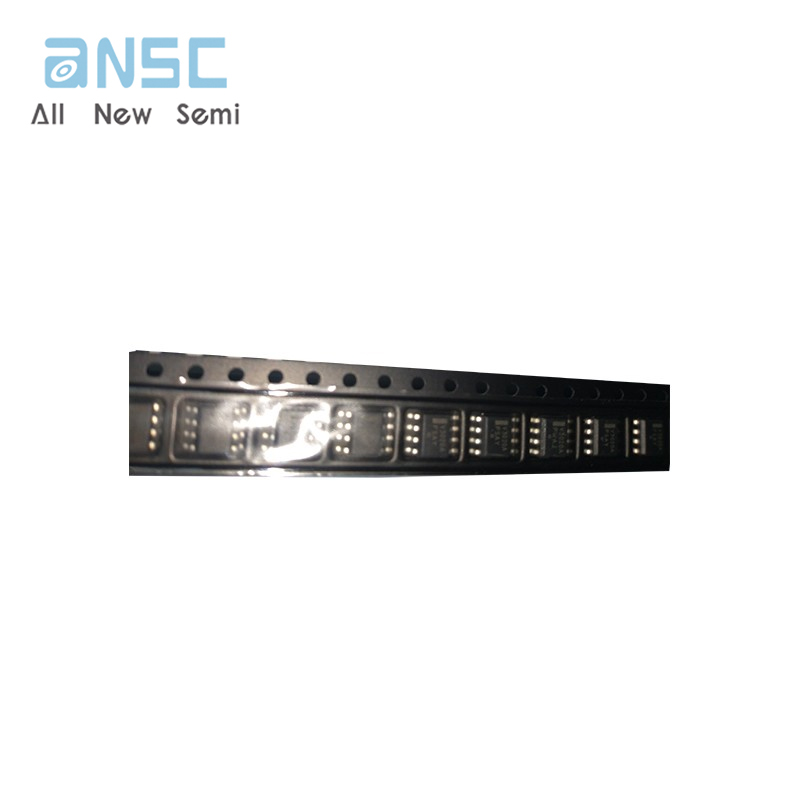

Actual image of the product

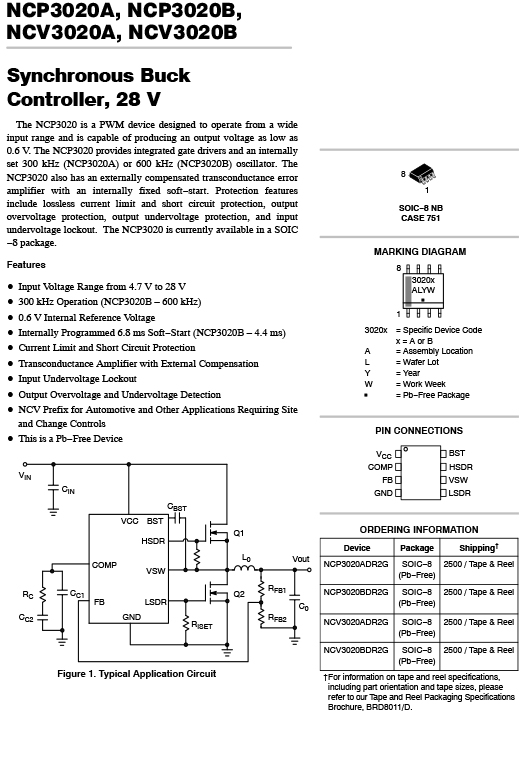

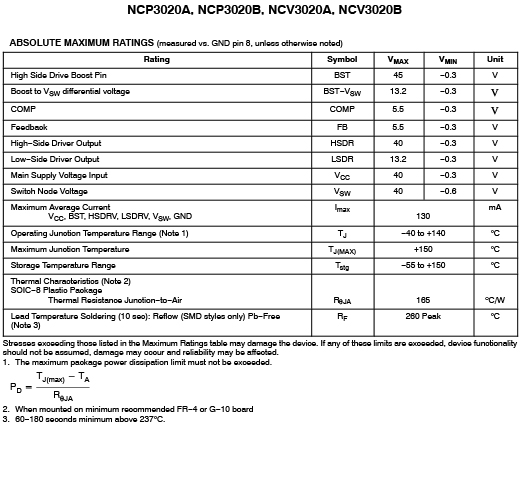

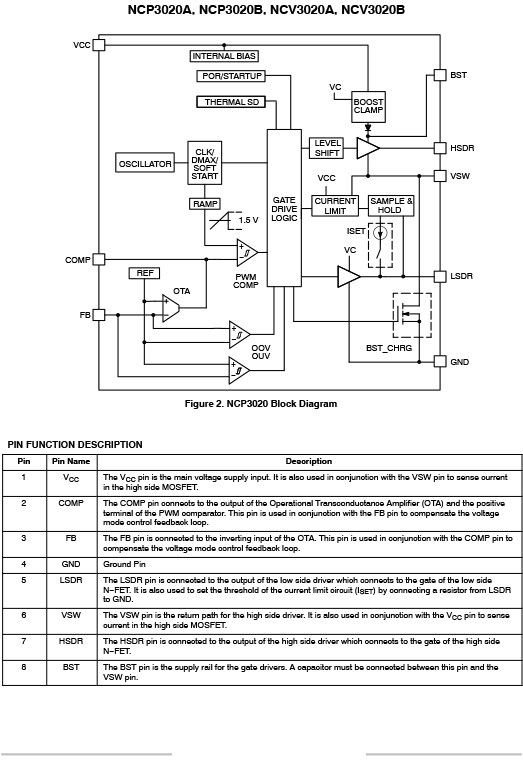

Product datasheet
