Hot sale Original LM3478MM IC REG CTRLR MULT TOP 8VSSOP Boost, Flyback, SEPIC Regulator Positive Output Step-Up
Manufacturer Product Number
LM3478MM
Description
LM3478MM IC REG CTRLR MULT TOP 8VSSOP Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-VSSOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description The LM140/LM340A/LM340/LM7800C monolithic 3-terminal positive voltage regulators employ internal current-limiting, thermal shutdown and safe-area compensation, making them essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.0A output current. They are intended as fixed voltage regulators in a wide range of applications including local (on-card) regulation for elimination of noise and distribution problems associated with single-point regulation. In addition to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents. Features ■ Complete specifications at 1A load ■ Output voltage tolerances of ±2% at Tj = 25˚C and ±4% over the temperature range (LM340A) ■ Line regulation of 0.01% of VOUT/V of ∆VIN at 1A load (LM340A) ■ Load regulation of 0.3% of VOUT/A (LM340A) ■ Internal thermal overload protection ■ Internal short-circuit current limit ■ Output transistor safe area protection ■ P+ Product Enhancement tested |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - LM3478MM |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Last Time Buy |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 40V |
| Frequency - Switching | 100kHz ~ 1MHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LM3478 |

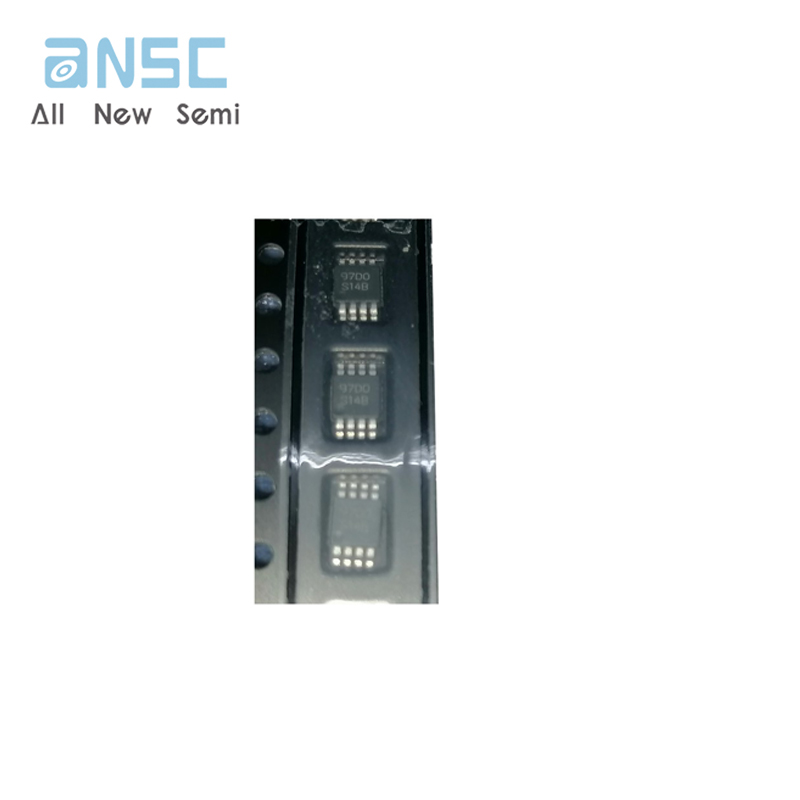

Actual image of the product

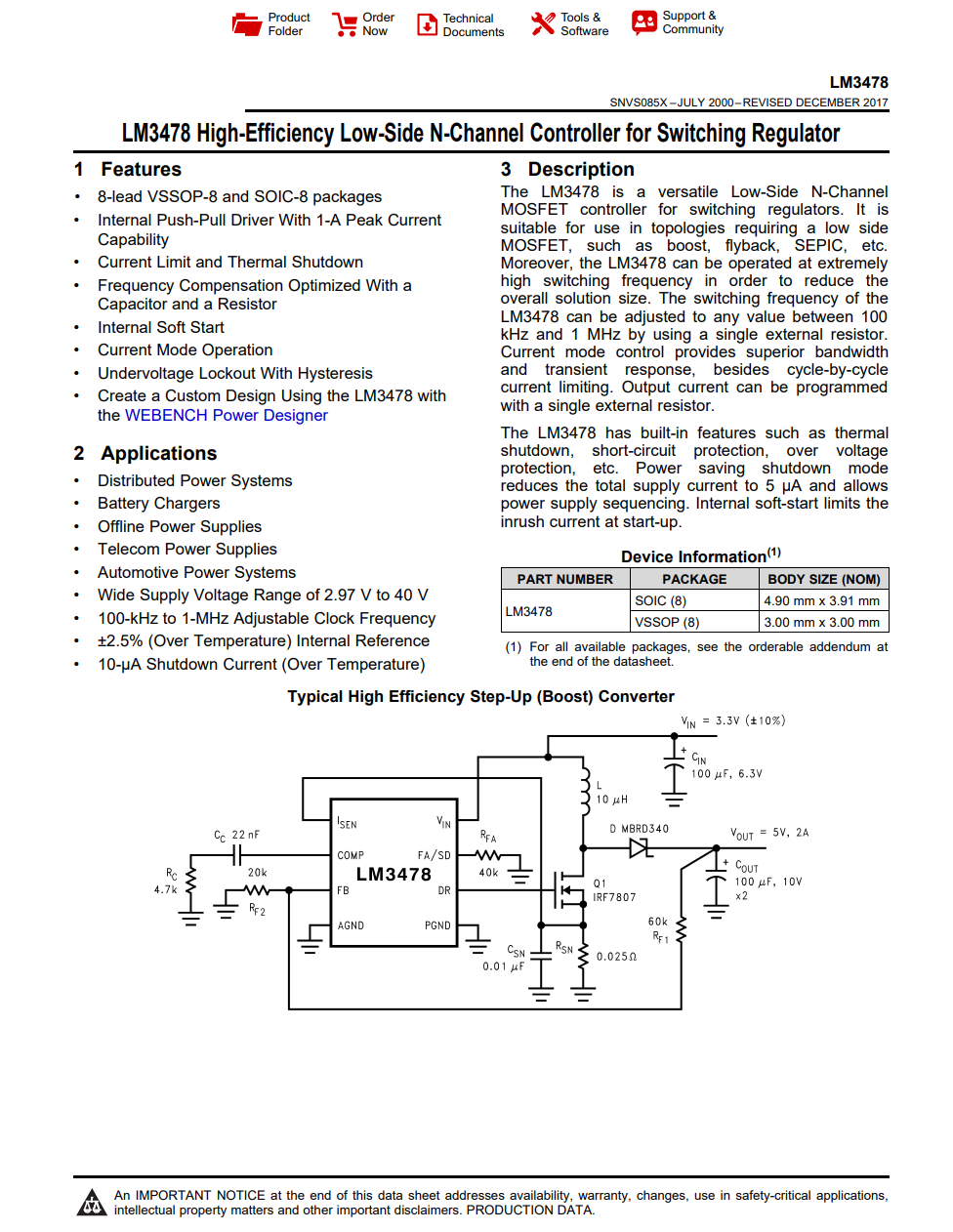

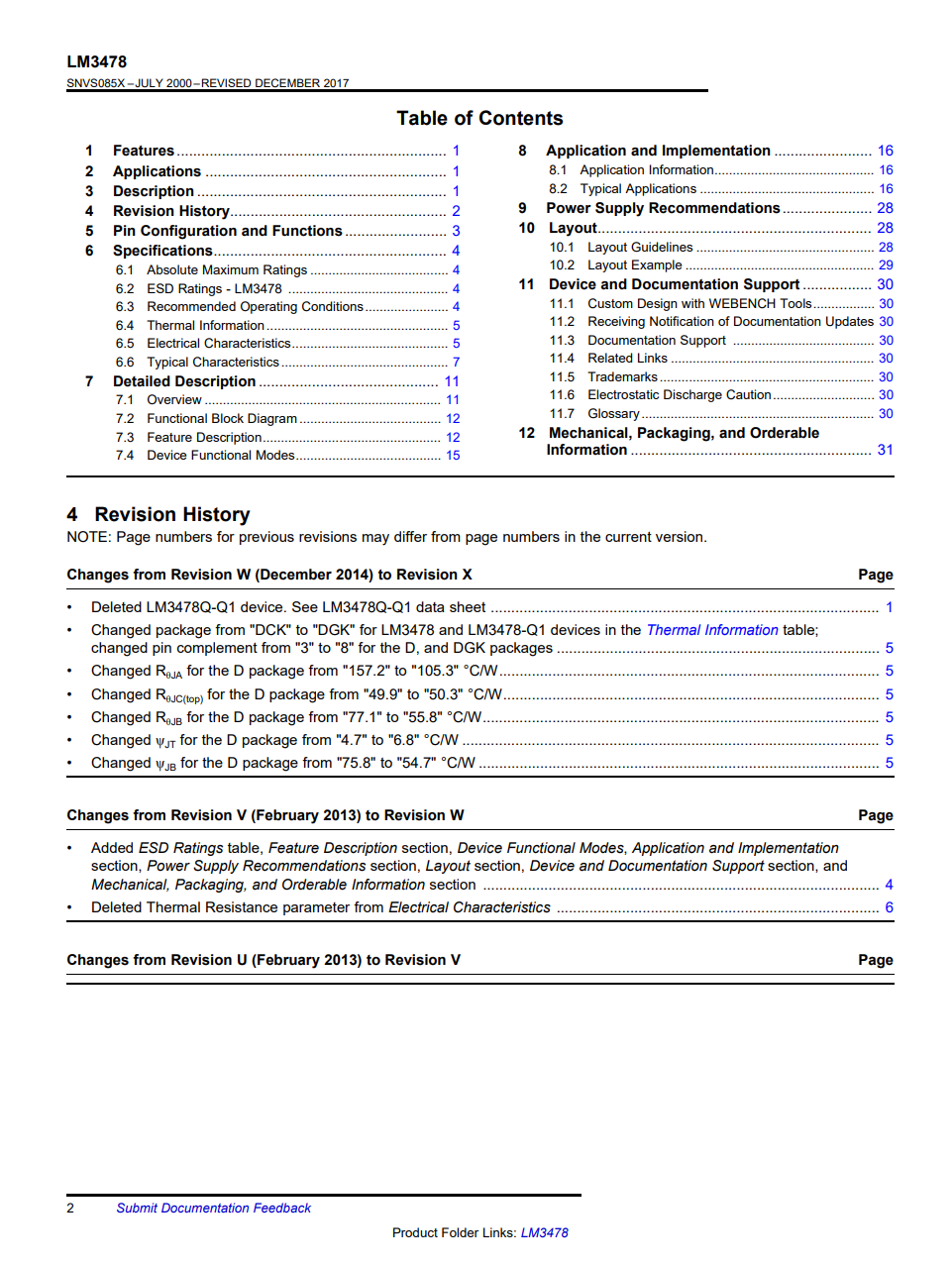

Product datasheet
For more information, please download
