Product Descriptions

The UCC280x family of high-speed, low-power integrated circuits contain all of the control and drive components required for off-line and DC-to-DC fixed frequency current-mode switching mode power supplies with minimal parts count.

These devices have the same pin configuration as the UCx84x family, and also offer the added features of internal full-cycle soft start and internal leading-edge blanking of the current-sense input.

Product Features

• 100-μA typical starting supply current

• 500-μA typical operating supply current

• Operation up to 1 MHz

• Internal soft start

• Internal fault soft start

• Internal leading-edge blanking of the current sense signal

• 1-A totem-pole output

• 70-ns typical response from current-sense to gate drive output

• 1.5% tolerance voltage reference

• Same pinout as UC3842 and UC3842A

Product Applications

• Switch mode power supplies (SMPS)

• DC-to-DC converters

• Power modules

• Automotive PSU

• Battery-operated PSU

Specifications

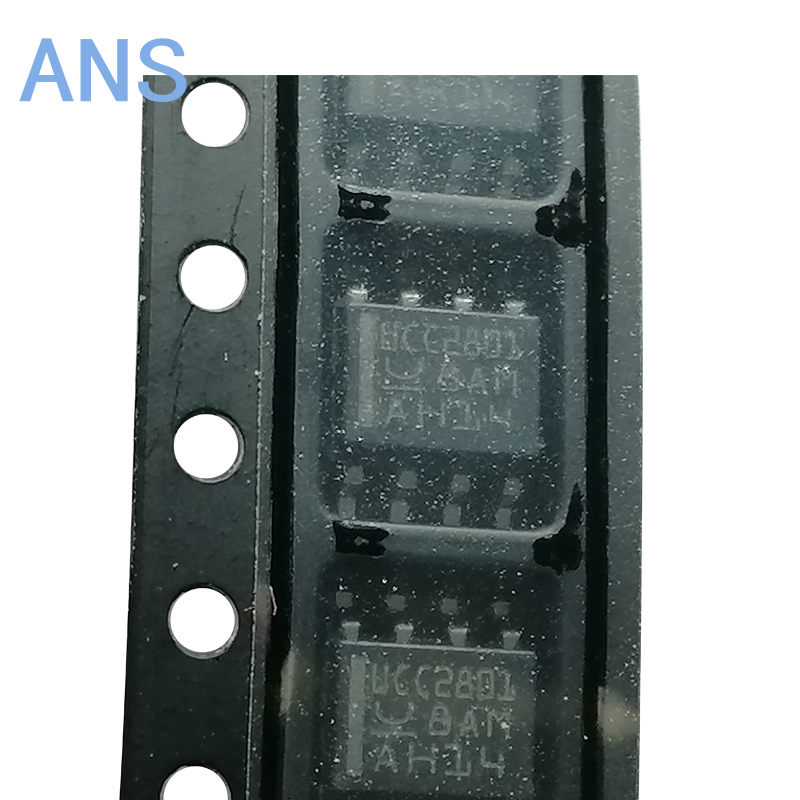

Actual product photos
